What current sense resistors does Stackpole offer?

Stackpole offers the CSS/CSSH series for high-efficiency sensing, CSSK Kelvin-terminated chip resistors that minimize lead resistance effects, and the CSS0402 ultra-low ohm resistors from 2.5 to 20 milliohms.

Does Stackpole manufacture precision resistors?

Yes, Stackpole manufactures precision thin film chip resistors and metal film leaded resistors with tight tolerances (down to 0.1%) and low TCR for precision analog and measurement applications.

What chip resistor sizes does Stackpole offer?

Stackpole offers thick and thin film chip resistors in standard sizes from 01005 through 2512 and larger, covering a wide range of resistance values and power ratings.

What industries use Stackpole resistors?

Stackpole resistors are used in automotive electronics, industrial controls, power supplies, telecommunications, consumer electronics, and any application requiring reliable resistive components.

Does Stackpole offer automotive-grade resistors?

Yes, Stackpole offers AEC-Q200 qualified resistors designed for automotive applications with enhanced reliability, temperature range, and environmental performance.

Stackpole Electronics Inc | Manufacturer Directory

Stackpole Electronics is a leading global manufacturer of resistive components, offering thick and thin film chip resistors, current sense resistors, wirewound resistors, and precision resistors since 1928.

Stackpole Electronics, Inc., founded in 1928, is a leading global supplier of resistive components serving the electronics industry worldwide. With nearly a century of manufacturing expertise, Stackpole delivers high-quality resistors for applications ranging from consumer electronics to industrial equipment.

Stackpole's comprehensive resistor portfolio includes:

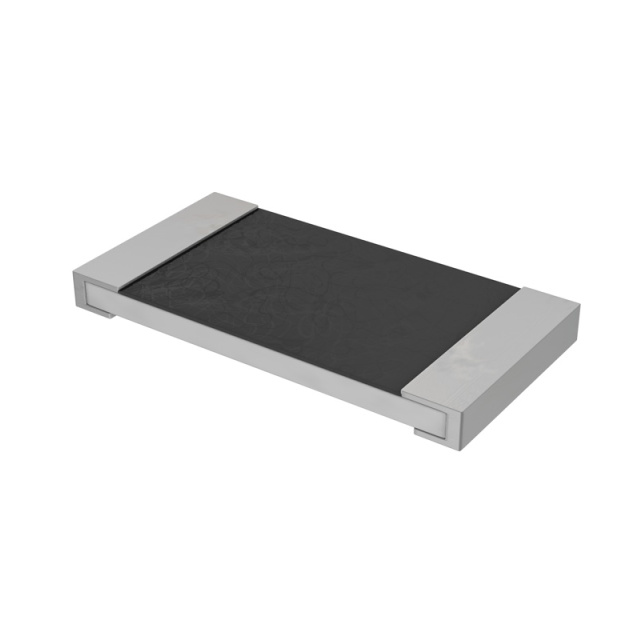

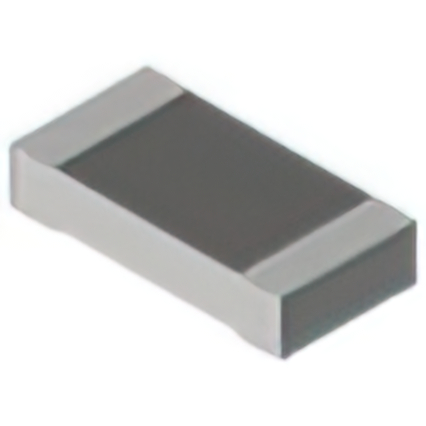

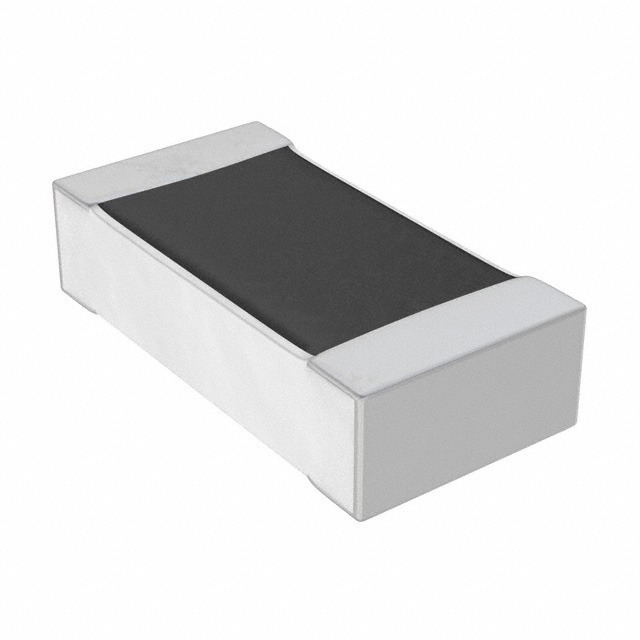

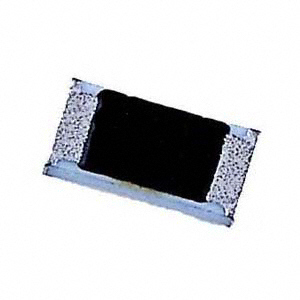

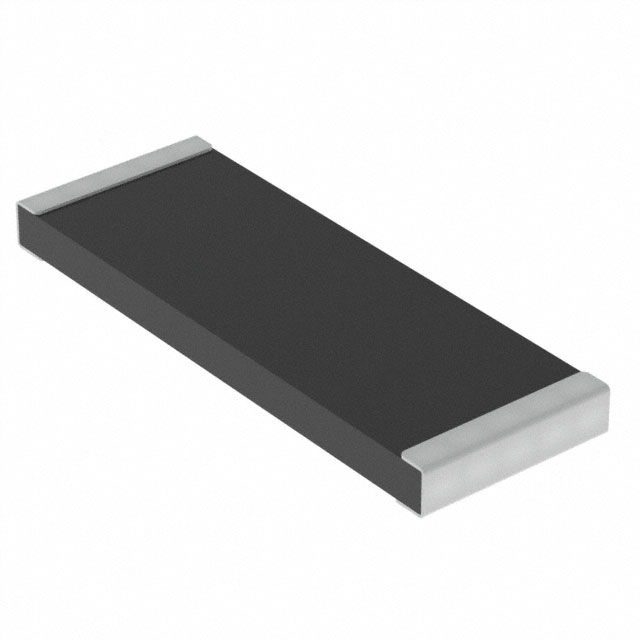

Chip resistors - Thick film and thin film surface mount resistors in standard and precision grades
Current sense resistors - CSS/CSSH series for high-efficiency current sensing, CSSK Kelvin-terminated resistors, and ultra-low ohm metal alloy resistors

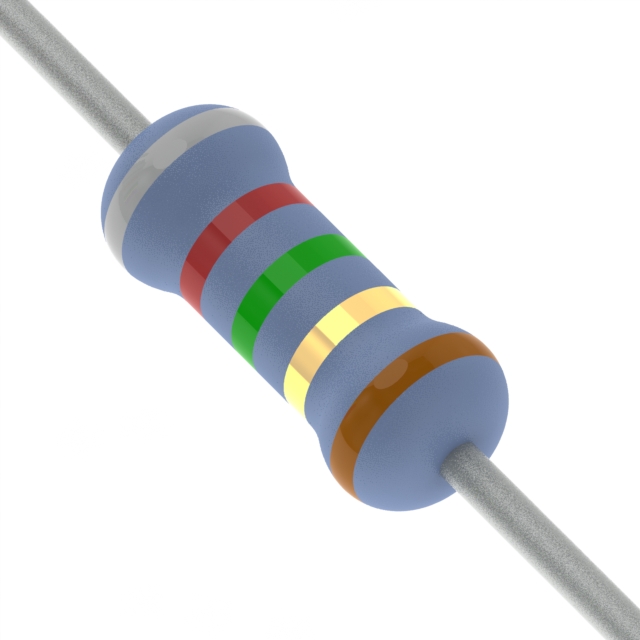

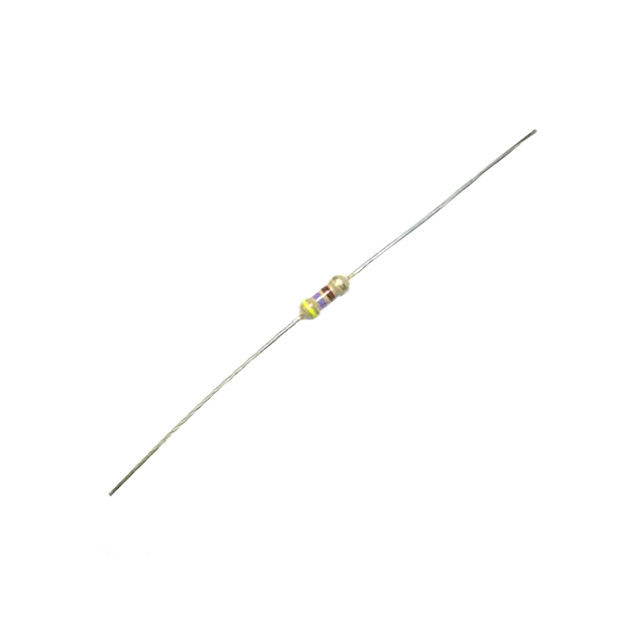

Leaded resistors - Carbon film, metal film, metal oxide, and wirewound through-hole resistors
Power resistors - High-power wirewound and thick film resistors for demanding applications

Stackpole's current sense products are particularly notable, with the CSSK series featuring four-terminal asymmetric connection that eliminates lead resistance effects for increased sensing accuracy, and the CSS0402 offering robust all-metal sense resistors from 2.5 to 20 milliohms with 1% tolerance.

RES, SURGE, 1/4W, 100 KOHM, 5%

Part Information	Pricing (lowest)	Tolerance	Package / Case	Composition	Power (Watts)	Power (Watts) Options	Package Name	Features	Temperature Coefficient	Size / Dimension Diameter	Size / Dimension Length	Number of Terminations	Resistance	Operating Temperature (Max)	Operating Temperature (Min)	Temperature Coefficient (Lowest)	Temperature Coefficient (Highest)

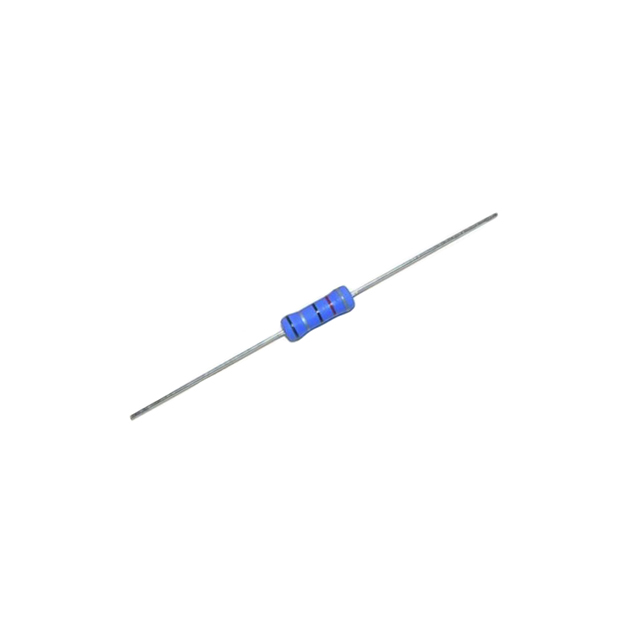

ASR14JA100K Stackpole Electronics Inc RES, SURGE, 1/4W, 100 KOHM, 5%	Sign in to see pricing Log in Sign up free	5 %	Axial	Metal Film	250 mW	1/4W	Axial	Flame Retardant Coating, Pulse Withstanding, Safety	200 ppm/°C	0.091 in	0.236 in	2	100 kOhm	155 °C	-55 °C	—	—
ASR14JA100R Stackpole Electronics Inc RES, SURGE, 1/4W, 100 OHM, 5%	Sign in to see pricing Log in Sign up free	5 %	Axial	Metal Film	250 mW	1/4W	Axial	Flame Retardant Coating, Pulse Withstanding, Safety	200 ppm/°C	0.091 in	0.236 in	2	100 Ohms	155 °C	-55 °C	—	—
ASR14JA10K0 Stackpole Electronics Inc RES 10K OHM 5% 1/4W AXIAL	Sign in to see pricing Log in Sign up free	5 %	Axial	Metal Film	250 mW	1/4W	Axial	Flame Retardant Coating, Pulse Withstanding, Safety	—	0.091 in	0.236 in	2	10 kOhm	155 °C	-55 °C	-1800 ppm/°C	0 ppm/°C
ASR14JA10M0 Stackpole Electronics Inc RES 10M OHM 5% 1/4W AXIAL	Sign in to see pricing Log in Sign up free	5 %	Axial	Metal Film	250 mW	1/4W	Axial	Flame Retardant Coating, Pulse Withstanding, Safety	—	0.091 in	0.236 in	2	10 MOhm	155 °C	-55 °C	-1800 ppm/°C	0 ppm/°C
ASR14JA10R0 Stackpole Electronics Inc RES 10 OHM 5% 1/4W AXIAL	Sign in to see pricing Log in Sign up free	5 %	Axial	Metal Film	250 mW	1/4W	Axial	Flame Retardant Coating, Pulse Withstanding, Safety	—	0.091 in	0.236 in	2	10 Ohms	155 °C	-55 °C	-1800 ppm/°C	0 ppm/°C
ASR14JA110K Stackpole Electronics Inc RES, SURGE, 1/4W, 110 KOHM, 5%	Sign in to see pricing Log in Sign up free	5 %	Axial	Metal Film	250 mW	1/4W	Axial	Flame Retardant Coating, Pulse Withstanding, Safety	200 ppm/°C	0.091 in	0.236 in	2	110 kOhm	155 °C	-55 °C	—	—
ASR14JA110R Stackpole Electronics Inc RES, SURGE, 1/4W, 110 OHM, 5%	Sign in to see pricing Log in Sign up free	5 %	Axial	Metal Film	250 mW	1/4W	Axial	Flame Retardant Coating, Pulse Withstanding, Safety	200 ppm/°C	0.091 in	0.236 in	2	110 Ohm	155 °C	-55 °C	—	—
ASR14JA11K0 Stackpole Electronics Inc RES, SURGE, 1/4W, 11 KOHM, 5%	Sign in to see pricing Log in Sign up free	5 %	Axial	Metal Film	250 mW	1/4W	Axial	Flame Retardant Coating, Pulse Withstanding, Safety	200 ppm/°C	0.091 in	0.236 in	2	11 kOhm	155 °C	-55 °C	—	—
ASR14JA11M0 Stackpole Electronics Inc RES, SURGE, 1/4W, 11 MOHM, 5%	Sign in to see pricing Log in Sign up free	5 %	Axial	Metal Film	250 mW	1/4W	Axial	Flame Retardant Coating, Pulse Withstanding, Safety	200 ppm/°C	0.091 in	0.236 in	2	11 MOhms	155 °C	-55 °C	—	—
ASR14JA11R0 Stackpole Electronics Inc RES, SURGE, 1/4W, 11 OHM, 5%	Sign in to see pricing Log in Sign up free	5 %	Axial	Metal Film	250 mW	1/4W	Axial	Flame Retardant Coating, Pulse Withstanding, Safety	200 ppm/°C	0.091 in	0.236 in	2	11 Ohm	155 °C	-55 °C	—	—

Series	Category	Parts	Status
AV14K	Circuit Protection	4	Active
AV17K	Circuit Protection	1	Active
AV20K	Circuit Protection	1	Active
AV30K	Circuit Protection	3	Active
AV30K3225	Circuit Protection	1	Active
AV40K1210	Circuit Protection	1	Active
CV115K	Circuit Protection	3	Active
CV130K	Circuit Protection	1	Active
CV140K	Circuit Protection	8	Active
CV150	Circuit Protection	4	Active
