EMZ8T2 Series

PNP Low VCE(sat) Transistor + NPN General Purpose Amplification Transistor

Catalog

PNP Low VCE(sat) Transistor + NPN General Purpose Amplification Transistor

Part	DC Current Gain (hFE) (Min) @ Ic, Vce	Operating Temperature	Current - Collector (Ic) (Max)	Supplier Device Package	Frequency - Transition	Mounting Type	Vce Saturation (Max) @ Ib, Ic	Voltage - Collector Emitter Breakdown (Max)	Package / Case	Current - Collector Cutoff (Max) [Max]	Transistor Type

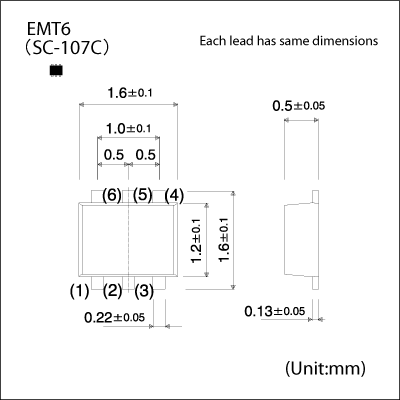

Rohm Semiconductor EMZ8T2R	120 270	150 °C	150 mA 500 mA	EMT6	180 MHz 260 MHz	Surface Mount	250 mV 400 mV	12 V 50 V	SOT-563 SOT-666	100 nA	1 NPN 1 PNP

Catalog

PNP Low VCE(sat) Transistor + NPN General Purpose Amplification Transistor

Description

Devices integrating two transistors are available in ultra-compact packages, suitable for various applications such as pre-amplifier differential amplification circuits, high-frequency oscillators, driver ICs and so forth.
