MCPF90 Series

Catalog

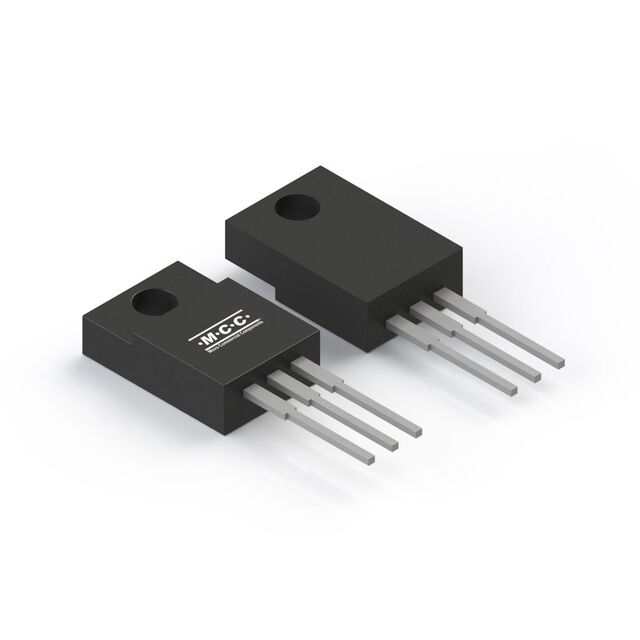

N-CHANNEL MOSFET,TO-220F

Part	Drive Voltage (Max Rds On, Min Rds On)	Operating Temperature [Min]	Operating Temperature [Max]	Technology	FET Type	Mounting Type	Gate Charge (Qg) (Max) @ Vgs	Power Dissipation (Max) [Max]	Input Capacitance (Ciss) (Max) @ Vds	Package / Case	Rds On (Max) @ Id, Vgs	Supplier Device Package	Vgs(th) (Max) @ Id	Drain to Source Voltage (Vdss)	Current - Continuous Drain (Id) @ 25°C	Vgs (Max)
Micro Commercial Components MCPF90N12A-BP	4.5 V 10 V	-55 °C	150 °C	MOSFET (Metal Oxide)	N-Channel	Through Hole	72 nC	78 W	4600 pF	TO-220-3 Full Pack	9 mOhm	TO-220F	3 V	120 V	90 A	20 V
