FH23 Series

FFC & FPC Connectors 0.3MM 25 POS R/A SMT GOLD FLASH PLATING

Manufacturer: Hirose Electric Co Ltd

Catalog

FFC & FPC Connectors 0.3MM 25 POS R/A SMT GOLD FLASH PLATING

Catalog

FFC & FPC Connectors 0.3MM 25 POS R/A SMT GOLD FLASH PLATING

Part	Current Rating (Amps)	Mating Cycles	Actuator Color	Housing Color	Height Above Board [z]	Height Above Board [z]	Mounting Type	Voltage Rating	Cable End Type	Housing Material	Actuator Material	Contact Finish	Connector/Contact Type	Termination	Locking Feature	Pitch	Pitch	Number of Positions	Features	Flat Flex Type	Contact Material	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	FFC, FCB Thickness [custom]	Number of Positions [custom]

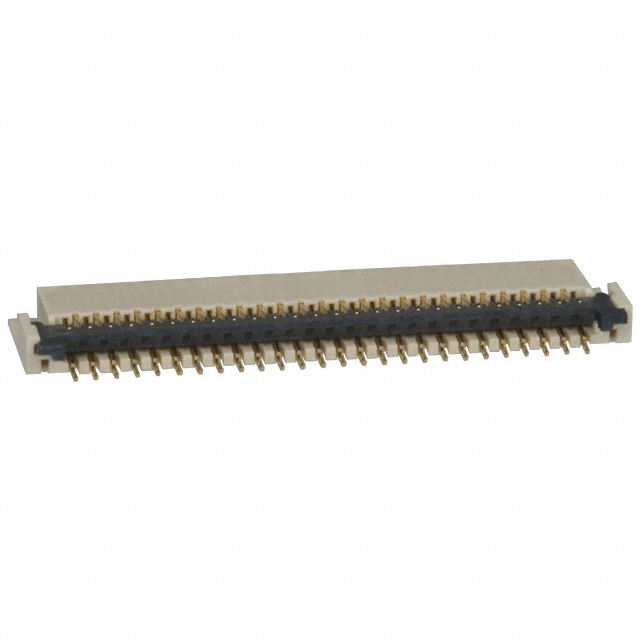

Hirose Electric Co Ltd FH23-51S-0.3SHW(06)	0.3 A	10	Black	Beige	1.25 mm	0.049 in	Right Angle Surface Mount	30 VDC	Tapered	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Gold	Contacts Bottom	Solder	Flip Lock	0.012 in	0.3 mm	51	Low Insertion Force (LIF)	FPC	Phosphor Bronze	UL94 V-0	-55 C	85 °C	0.2 mm
Hirose Electric Co Ltd FH23-51S-0.3SHAW(06)	0.3 A	10	Black	Beige	1.25 mm	0.049 in	Right Angle Surface Mount	30 VDC	Tapered	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)	Gold	Contacts Bottom	Solder	Flip Lock	0.012 in	0.3 mm	51	Low Insertion Force (LIF)	FPC	Phosphor Bronze	UL94 V-0	-55 C	85 °C	0.2 mm

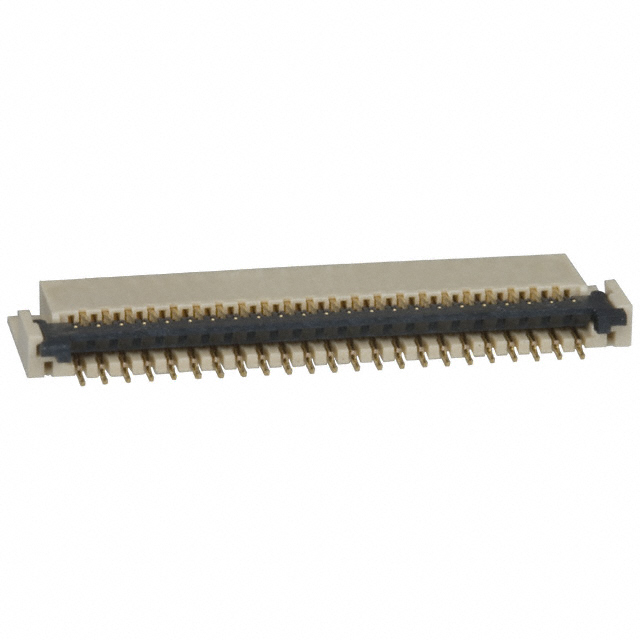

Hirose Electric Co Ltd FH23-45S-0.3SHAW(05)	0.3 A	10	Black	Beige	1.25 mm	0.049 in	Right Angle Surface Mount	30 VDC	Tapered	Liquid Crystal Polymer (LCP) Halogen Free	Liquid Crystal Polymer (LCP) Halogen Free	Gold	Contacts Bottom	Solder	Flip Lock	0.012 in	0.3 mm	45	Low Insertion Force (LIF)	FPC	Phosphor Bronze	UL94 V-0	-55 C	85 °C	0.2 mm
Hirose Electric Co Ltd FH23-37S-0.3SHW(05)	0.3 A	10	Black	Beige	1.25 mm	0.049 in	Right Angle Surface Mount	30 VDC	Tapered	Liquid Crystal Polymer (LCP) Halogen Free	Liquid Crystal Polymer (LCP) Halogen Free	Gold	Contacts Bottom	Solder	Flip Lock	0.012 in	0.3 mm	37	Low Insertion Force (LIF)	FPC	Phosphor Bronze	UL94 V-0	-55 C	85 °C	0.2 mm
Hirose Electric Co Ltd FH23-23S-0.3SHAW(05)	0.3 A	10	Black	Beige	1.25 mm	0.049 in	Right Angle Surface Mount	30 VDC	Tapered	Liquid Crystal Polymer (LCP) Halogen Free	Liquid Crystal Polymer (LCP) Halogen Free	Gold	Contacts Bottom	Solder	Flip Lock	0.012 in	0.3 mm	23	Low Insertion Force (LIF)	FPC	Phosphor Bronze	UL94 V-0	-55 C	85 °C	0.2 mm

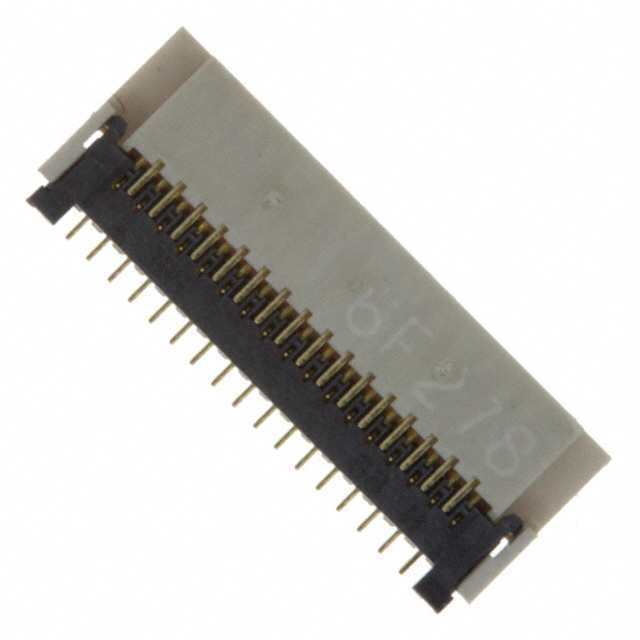

Hirose Electric Co Ltd FH23-33S-0.3SHAW(05)	0.3 A	10	Black	Beige	1.25 mm	0.049 in	Right Angle Surface Mount	30 VDC	Tapered	Liquid Crystal Polymer (LCP) Halogen Free	Liquid Crystal Polymer (LCP) Halogen Free	Gold	Contacts Bottom	Solder	Flip Lock	0.012 in	0.3 mm		Low Insertion Force (LIF)	FPC	Phosphor Bronze	UL94 V-0	-55 C	85 °C	0.2 mm	33

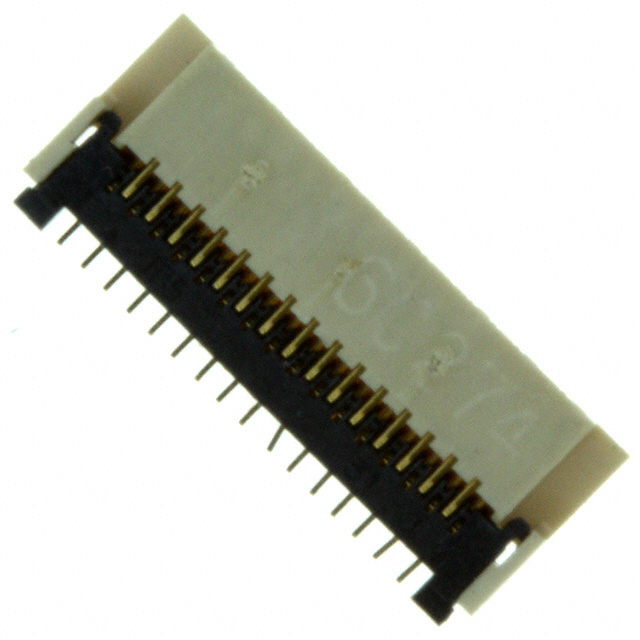

Hirose Electric Co Ltd FH23-31S-0.3SHAW(05)	0.3 A	10	Black	Beige	1.25 mm	0.049 in	Right Angle Surface Mount	30 VDC	Tapered	Liquid Crystal Polymer (LCP) Halogen Free	Liquid Crystal Polymer (LCP) Halogen Free	Gold	Contacts Bottom	Solder	Flip Lock	0.012 in	0.3 mm		Low Insertion Force (LIF)	FPC	Phosphor Bronze	UL94 V-0	-55 C	85 °C	0.2 mm	31

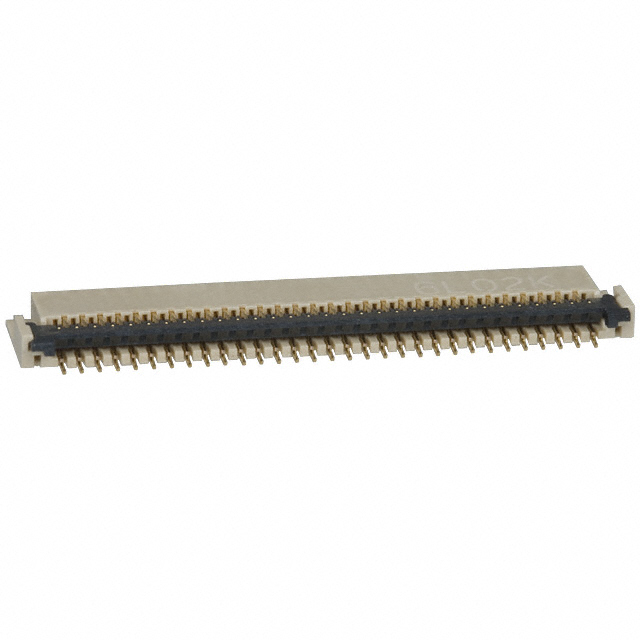

Hirose Electric Co Ltd FH23-61S-0.3SHAW(05)	0.3 A	10	Black	Beige	1.25 mm	0.049 in	Right Angle Surface Mount	30 VDC	Tapered	Liquid Crystal Polymer (LCP) Halogen Free	Liquid Crystal Polymer (LCP) Halogen Free	Gold	Contacts Bottom	Solder	Flip Lock	0.012 in	0.3 mm	61	Low Insertion Force (LIF)	FPC	Phosphor Bronze	UL94 V-0	-55 C	85 °C	0.2 mm
Hirose Electric Co Ltd FH23-21S-0.3SHAW(05)	0.3 A	10	Black	Beige	1.25 mm	0.049 in	Right Angle Surface Mount	30 VDC	Tapered	Liquid Crystal Polymer (LCP) Halogen Free	Liquid Crystal Polymer (LCP) Halogen Free	Gold	Contacts Bottom	Solder	Flip Lock	0.012 in	0.3 mm	21	Low Insertion Force (LIF)	FPC	Phosphor Bronze	UL94 V-0	-55 C	85 °C	0.2 mm
Hirose Electric Co Ltd FH23-25S-0.3SHAW(05)	0.3 A	10	Black	Beige	1.25 mm	0.049 in	Right Angle Surface Mount	30 VDC	Tapered	Liquid Crystal Polymer (LCP) Halogen Free	Liquid Crystal Polymer (LCP) Halogen Free	Gold	Contacts Bottom	Solder	Flip Lock	0.012 in	0.3 mm	25	Low Insertion Force (LIF)	FPC	Phosphor Bronze	UL94 V-0	-55 C	85 °C	0.2 mm
