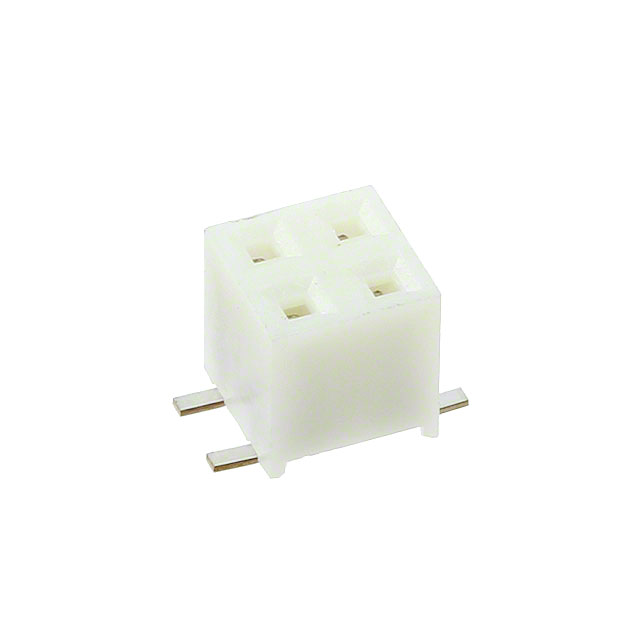

A3-4DA-2 Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN RCPT 4POS 0.079 GOLD SMD
| Part | Contact Shape | Contact Material | Insulation Material | Applications | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Connector Type | Mounting Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Number of Rows [custom] | Insulation Height | Insulation Height | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Style | Contact Type | Fastening Type | Row Spacing - Mating | Row Spacing - Mating | Material Flammability Rating | Insulation Color | Pitch - Mating | Pitch - Mating | Voltage Rating | Number of Positions Loaded | Number of Positions | Contact Finish - Mating | Contact Finish - Post | Mated Stacking Heights |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Square | Phosphor Bronze | Polyphenylene Sulfide (PPS) | General Purpose Telecommunications | 39.4 çin | 1 çm | Receptacle | Surface Mount | 8 µin | 0.203 µm | 2 | 0.165 in | 4.2 mm | -55 C | 85 °C | Solder | Board to Board Cable | Female Socket | Push-Pull | 2 mm | 0.079 in | UL94 V-0 | Brown | 0.079 " | 2 mm | 200 VAC | All | 4 | Gold | Tin | 5.1 mm 6 mm |
