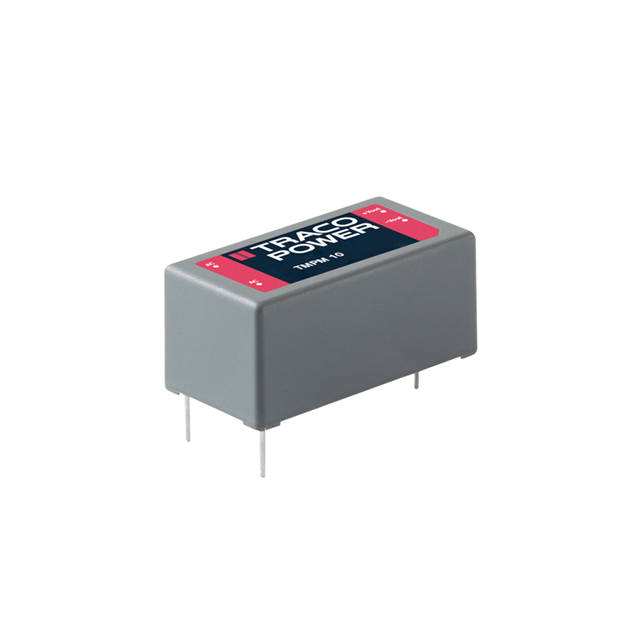

TMPM 10 Series
Manufacturer: Traco Power
Beta
⌘K
AC/DC CONVERTER 15V 10W
| Part | Efficiency | Voltage - Input [Min] | Voltage - Input [Max] | Power (Watts) | Package / Case | Mounting Type | Approval Agency | Current - Output (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Features | Applications | Voltage - Output 1 | Type | Number of Outputs | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Load Regulation | Line Regulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 75 % | 85 VAC 120 VDC | 264 VAC 370 VDC | 10 W | 4-DIP Module | Through Hole | CB CE cULus cURus | 667 mA | 70 °C | -25 °C | OTP SCP Universal Input | ITE (Commercial) | 15 V | Enclosed | 1 | 0.93 " | 23.5 mm | 27.2 mm | 1.07 in | 2.06 " | 52.4 mm | ||
Traco Power | 72 % | 85 VAC 120 VDC | 264 VAC 370 VDC | 10 W | 4-DIP Module | Through Hole | CB CE cULus cURus | 2 A | 70 °C | -20 °C | OTP SCP Universal Input | ITE (Commercial) | 5 V | Enclosed | 1 | 0.93 " | 23.5 mm | 27.2 mm | 1.07 in | 2.06 " | 52.4 mm | ±1% | 1 % |
 Traco Power | 70 % | 85 VAC 120 VDC | 264 VAC 370 VDC | 8.3 W | 4-DIP Module | Through Hole | CB CE cULus cURus | 2.5 A | 70 °C | -25 °C | OTP SCP Universal Input | ITE (Commercial) | 3.3 V | Enclosed | 1 | 0.93 " | 23.5 mm | 27.2 mm | 1.07 in | 2.06 " | 52.4 mm |
