FX8C Series

Catalog

CONN HDR 140POS SMD GOLD

...

Part	Contact Finish	Features	Mounting Type	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	Pitch	Pitch	Number of Rows [custom]	Connector Type	Number of Positions	Mated Stacking Heights [Min]	Mated Stacking Heights [Max]	Number of Positions [custom]

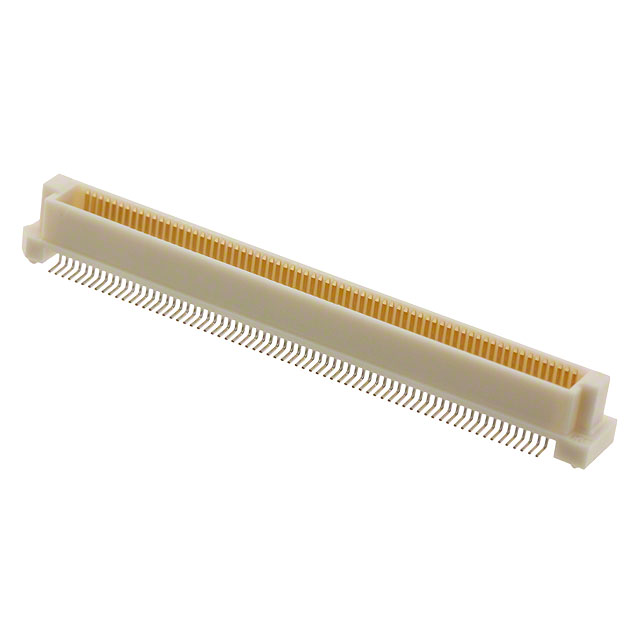

Hirose Electric Co Ltd FX8C-140P-SV(92)	Gold	Board Guide	Surface Mount	5 mm 10 mm	4.45 mm	0.175 in	0.6 mm	0.024 "	2	Header Outer Shroud Contacts	140

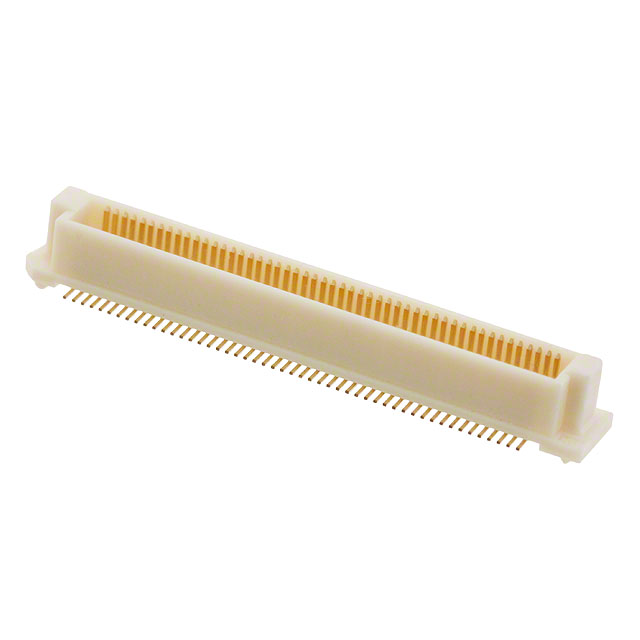

Hirose Electric Co Ltd FX8C-100P-SV2(71)	Gold	Board Guide	Surface Mount		6.45 mm	0.254 "	0.6 mm	0.024 "	2	Header Outer Shroud Contacts	100	7 mm	12 mm

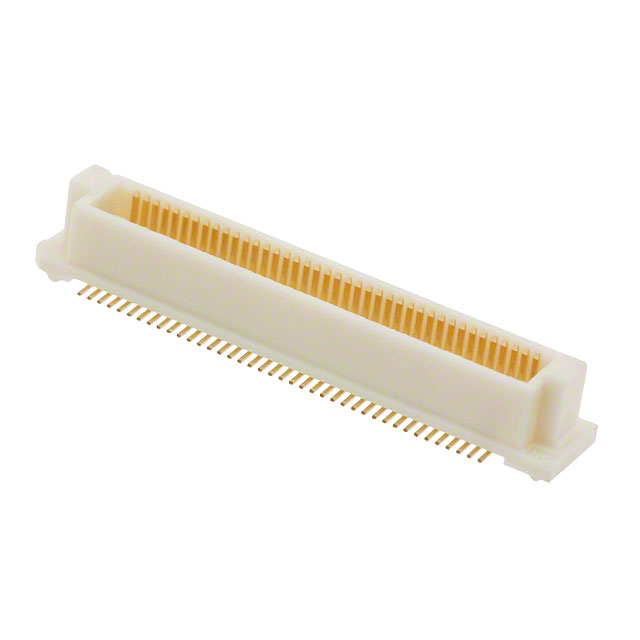

Hirose Electric Co Ltd FX8C-80P-SV(93)	Gold	Board Guide	Surface Mount	5 mm 10 mm	4.45 mm	0.175 in	0.6 mm	0.024 "	2	Header Outer Shroud Contacts	80
Hirose Electric Co Ltd FX8C-140P-SV1(21)	Gold	Board Guide	Surface Mount	6 mm 11 mm	5.45 mm	0.214 in	0.6 mm	0.024 "	2	Header Outer Shroud Contacts	140
Hirose Electric Co Ltd FX8C-120/120S11-SVJ(71)	Gold	Board Guide Bridged Receptacles (2)	Surface Mount	5 mm 6 mm 7 mm 9 mm 11 mm	3.96 mm	0.156 "	0.6 mm	0.024 "		Receptacle Center Strip Contacts				240
Hirose Electric Co Ltd FX8C-100P-SV(93)	Gold	Board Guide	Surface Mount	5 mm 10 mm	4.45 mm	0.175 in	0.6 mm	0.024 "	2	Header Outer Shroud Contacts	100
Hirose Electric Co Ltd FX8C-100S-SV(21)	Gold	Board Guide	Surface Mount	5 mm 6 mm 7 mm 9 mm 11 mm	3.96 mm	0.156 "	0.6 mm	0.024 "	2	Receptacle Center Strip Contacts	100
Hirose Electric Co Ltd FX8C-80/80S11-SV5J(71)	Gold	Board Guide Bridged Receptacles (2)	Surface Mount	10 mm 11 mm 12 mm 14 mm 16 mm	8.95 mm	0.352 in	0.6 mm	0.024 "		Receptacle Center Strip Contacts	160
Hirose Electric Co Ltd FX8C-80P-SV(21)	Gold	Board Guide	Surface Mount	5 mm 10 mm	4.45 mm	0.175 in	0.6 mm	0.024 "	2	Header Outer Shroud Contacts	80
Hirose Electric Co Ltd FX8C-120P-SV1(92)	Gold	Board Guide	Surface Mount	6 mm 11 mm	5.45 mm	0.214 in	0.6 mm	0.024 "	2	Header Outer Shroud Contacts	120
