E3033S Series
Manufacturer: Prysmian Group
Beta
⌘K

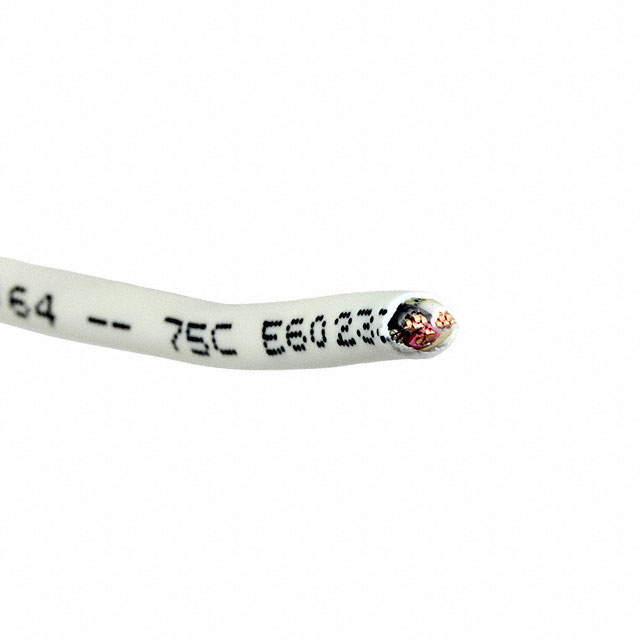

CABLE 3COND 18AWG WHITE
| Part | Number of Conductors | Jacket (Insulation) Material | Wire Gauge | Length | Length | Voltage | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Usage | Conductor Material | Conductor Insulation | Jacket Color | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | 3 | Plenum Poly-Vinyl Chloride (PVC) | 18 AWG | 304.8 m | 1000 ft | 300 VDC | 0.381 mm | 0.015 in | 75 ░C | 0 °C | 0.166 in | 4.22 mm | ASTM B-3 | 26 AWG | 7 | Multi-Conductor | Alarm Security Sound | Copper Bare | Poly-Vinyl Chloride (PVC) | White | ||
 Prysmian Group | 3 | Plenum Poly-Vinyl Chloride (PVC) | 18 AWG | 15.24 m 304.8 m | 50 ft 1000 ft | 300 VDC | 0.381 mm | 0.015 in | 75 ░C | 0 °C | 0.166 in | 4.22 mm | ASTM B-3 | 26 AWG | 7 | Multi-Conductor | Alarm Security Sound | Copper Annealed Bare | Poly-Vinyl Chloride (PVC) | White | 25 ft 100 ft | 7.62 m 30.5 m |
Prysmian Group | 3 | Plenum Poly-Vinyl Chloride (PVC) | 18 AWG | 304.8 m | 1000 ft | 300 VDC | 0.381 mm | 0.015 in | 75 ░C | 0 °C | 0.166 in | 4.22 mm | ASTM B-3 | 26 AWG | 7 | Multi-Conductor | Alarm Security Sound | Copper Bare | Poly-Vinyl Chloride (PVC) | Blue | ||
Prysmian Group | 3 | Plenum Poly-Vinyl Chloride (PVC) | 18 AWG | 304.8 m | 1000 ft | 300 VDC | 0.381 mm | 0.015 in | 75 ░C | 0 °C | 0.166 in | 4.22 mm | ASTM B-3 | 26 AWG | 7 | Multi-Conductor | Alarm Security Sound | Copper Bare | Poly-Vinyl Chloride (PVC) | Blue | ||
 Prysmian Group | 3 | Plenum Poly-Vinyl Chloride (PVC) | 18 AWG | 15.24 m 304.8 m | 50 ft 1000 ft | 300 VDC | 0.381 mm | 0.015 in | 75 ░C | 0 °C | 0.166 in | 4.22 mm | ASTM B-3 | 26 AWG | 7 | Multi-Conductor | Alarm Security Sound | Copper Annealed Bare | Poly-Vinyl Chloride (PVC) | Natural | ||
Prysmian Group | 3 | Plenum Poly-Vinyl Chloride (PVC) | 18 AWG | 304.8 m | 1000 ft | 300 VDC | 0.381 mm | 0.015 in | 75 ░C | 0 °C | 0.166 in | 4.22 mm | ASTM B-3 | 26 AWG | 7 | Multi-Conductor | Alarm Security Sound | Copper Annealed Bare | Poly-Vinyl Chloride (PVC) | White | 25 ft | 7.62 m |
Prysmian Group | 3 | Plenum Poly-Vinyl Chloride (PVC) | 18 AWG | 304.8 m | 1000 ft | 300 VDC | 0.381 mm | 0.015 in | 75 ░C | 0 °C | 0.166 in | 4.22 mm | ASTM B-3 | 26 AWG | 7 | Multi-Conductor | Alarm Security Sound | Copper Bare | Poly-Vinyl Chloride (PVC) | White | ||
Prysmian Group | 3 | Plenum Poly-Vinyl Chloride (PVC) | 18 AWG | 15.24 m 152.4 m 304.8 m | 50 ft 500 ft 1000 ft | 300 VDC | 0.381 mm | 0.015 in | 75 ░C | 0 °C | 0.166 in | 4.22 mm | ASTM B-3 | 26 AWG | 7 | Multi-Conductor | Alarm Security Sound | Copper Annealed Bare | Poly-Vinyl Chloride (PVC) | Natural | 100 ft | 30.5 m |
