C3065 Series
Manufacturer: Prysmian Group
Beta
⌘K

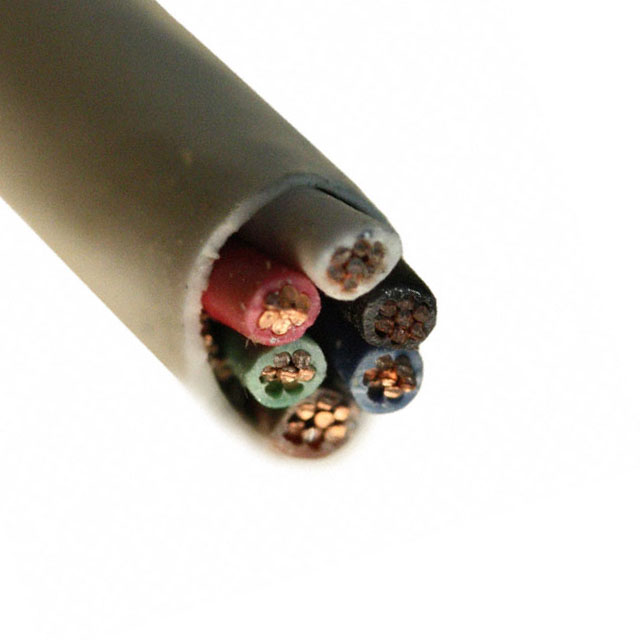

CABLE 6COND 18AWG NATURAL
| Part | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Conductor Insulation | Shield Material | Features | Shield Coverage | Usage | Ratings | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] | Length | Length | Length [x] | Length [x] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket Color | Wire Gauge | Jacket (Insulation) Material | Shield Type | Jacket (Insulation) Thickness [x] | Jacket (Insulation) Thickness [x] | Cable Type | Number of Conductors |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Prysmian Group | 150 V | 26 AWG | 7 | Poly-Vinyl Chloride (PVC) | Flexfoil® | Drain Wire Rip Cord | 100 % | Communication Control | ASTM B-3 | Copper Annealed Bare | 75 ░C | 0 °C | 304.8 m | 1000 ft | 100 ft | 30.5 m | 0.23 in | 5.84 mm | Natural | 18 AWG | Poly-Vinyl Chloride (PVC) | Foil | 0.381 mm | 0.015 in | Multi-Conductor | 6 |
Prysmian Group | 150 V | 26 AWG | 7 | Poly-Vinyl Chloride (PVC) | Drain Wire Rip Cord | Communication Control | ASTM B-3 | Copper Annealed Bare | 75 ░C | 0 °C | 15.24 m 304.8 m | 50 ft 1000 ft | 100 ft | 30.5 m | 0.23 in | 5.84 mm | Natural | 18 AWG | Poly-Vinyl Chloride (PVC) | Foil | 0.381 mm | 0.015 in | Multi-Conductor | 6 |
