HR12 Series

Catalog

CONTACT SOCKET 26-30AWG CRIMP

Part	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Contact Termination	Type	Contact Finish	Termination Finish	Contact Size	Contact Material	Contact Type	Features	Mounting Feature	Orientation	Connector Type	Fastening Type	Primary Material	Mounting Type	Termination	Shell Size - Insert [custom]	Shell Material	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Voltage Rating	Color	Number of Positions	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Accessory Type	Shell Finish	Housing Color	Contact Shape	Insert Material	Note	Shell Size - Insert
Hirose Electric Co Ltd HR12-SC-213	30 AWG	26 AWG	Crimp	Signal Stamped	Tin	Phosphor Bronze	1 mm	Phosphor Bronze	Socket

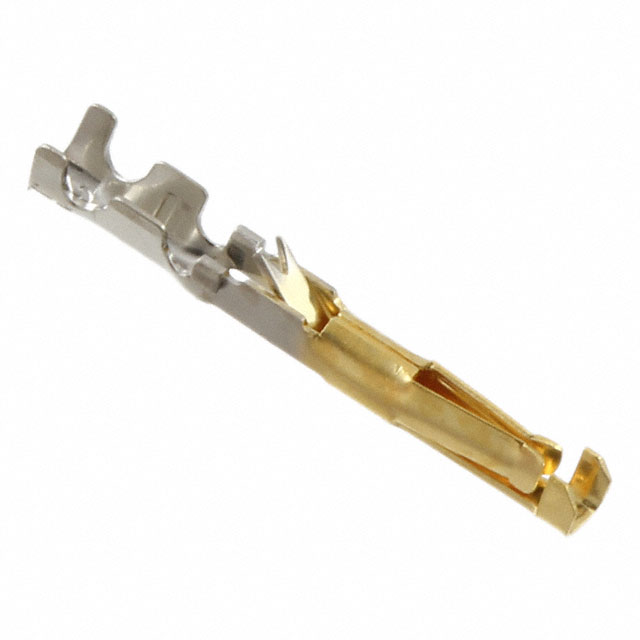

Hirose Electric Co Ltd HR12-SC-111	30 AWG	26 AWG	Crimp	Signal Stamped	Gold	Phosphor Bronze	1 mm	Phosphor Bronze	Socket	Insulation Support

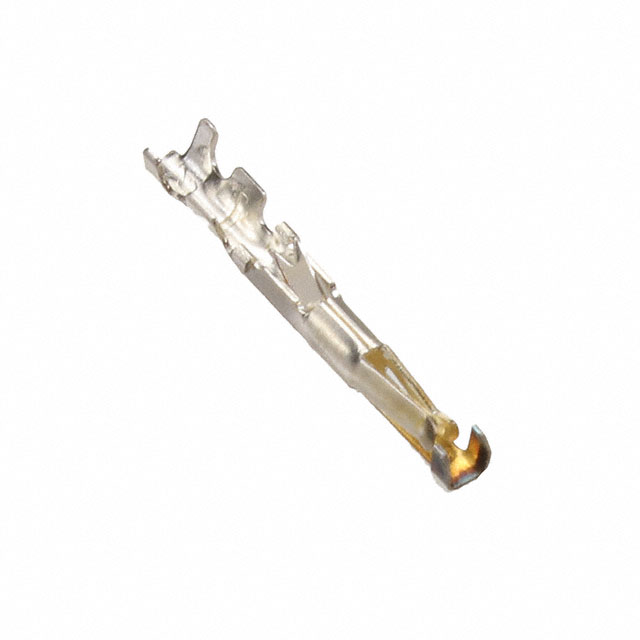

Hirose Electric Co Ltd HR12-SC-212	30 AWG	26 AWG	Crimp	Signal Stamped	Silver	Phosphor Bronze	1 mm	Phosphor Bronze	Socket

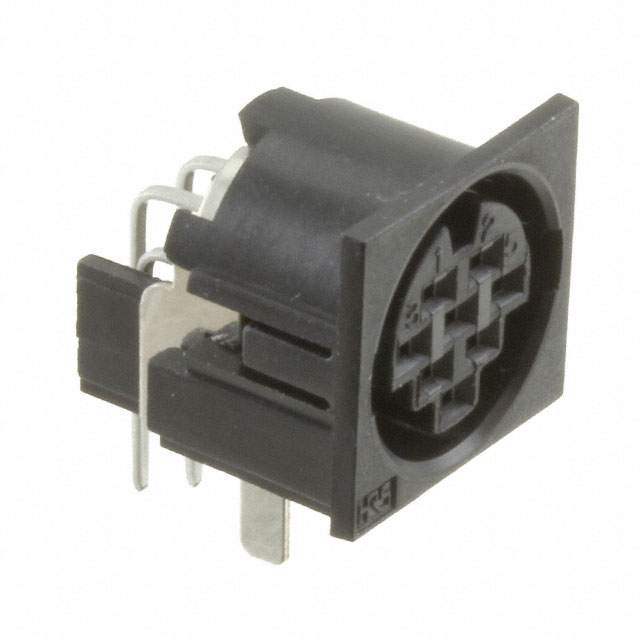

Hirose Electric Co Ltd HR12-10R-8SDL(71)								Phosphor Bronze		Ground	Flange	Keyed	Receptacle Female Sockets	Snap-In	Plastic	Right Angle Through Hole	Solder	10	Polybutylene Terephthalate (PBT)	UL94 V-0	-15 °C	60 °C	Shielded	100 VAC 140 VDC	Black	8

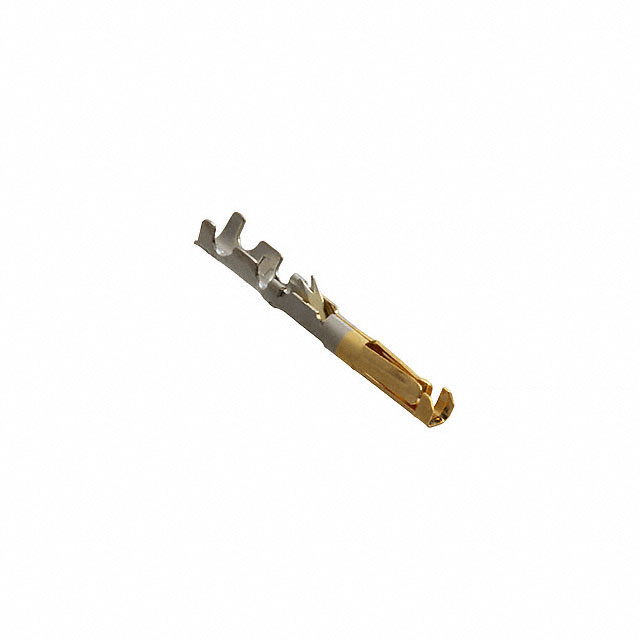

Hirose Electric Co Ltd HR12-SC-211	30 AWG	26 AWG	Crimp	Signal Stamped	Gold	Phosphor Bronze	1 mm	Phosphor Bronze	Socket
Hirose Electric Co Ltd HR12-10R-8SD(73)								Phosphor Bronze		Ground	Bulkhead - Rear Side Nut	Keyed	Receptacle Female Sockets	Snap-In	Plastic	Panel Mount Through Hole	Solder	10	Polybutylene Terephthalate (PBT)	UL94 V-0	-15 °C	60 °C	Shielded	100 VAC 140 VDC	Black	8	Gold	8 µin	0.203 µm

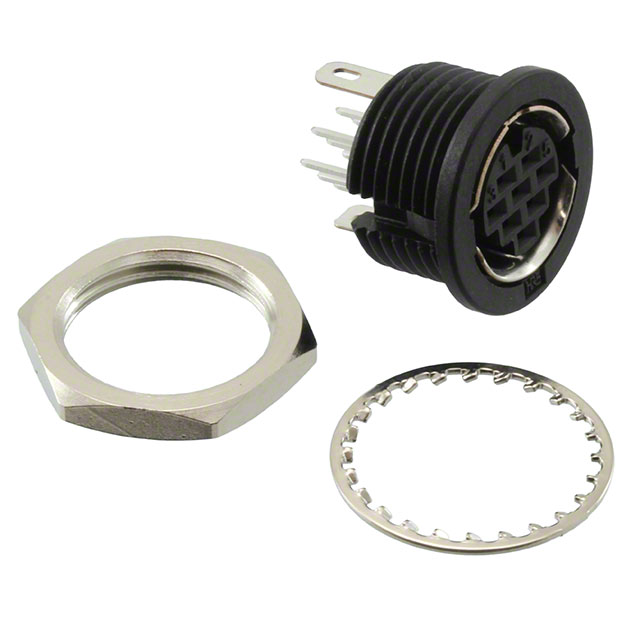

Hirose Electric Co Ltd HR12-10R-8SD(71)								Phosphor Bronze		Ground	Bulkhead - Rear Side Nut	Keyed	Receptacle Female Sockets	Snap-In	Plastic	Panel Mount Through Hole	Solder	10	Polybutylene Terephthalate (PBT)	UL94 V-0	-15 °C	60 °C	Shielded	100 VAC 140 VDC	Black	8

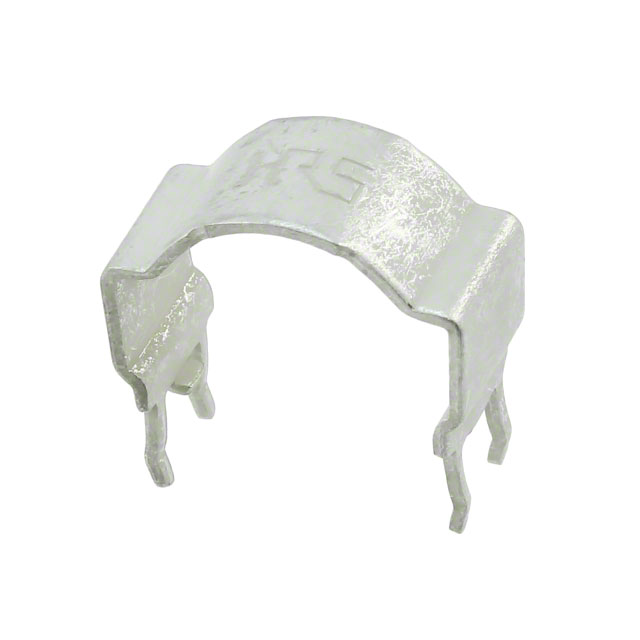

Hirose Electric Co Ltd HR12-10R-SP(71)																		10							Silver					Stopper Plate
Hirose Electric Co Ltd HR212-10RA-8SDL(74)										Ground		Keyed	Receptacle Female Sockets	Snap-In	Plastic	Right Angle Through Hole	Solder	10	Polybutylene Terephthalate (PBT)	UL94 V-0	-15 °C	60 °C	Shielded	100 VAC 140 VDC	Black Silver	8					Tin
Hirose Electric Co Ltd HR12-14RA-20SC(01)				For Female Sockets			1 mm		Crimp		Flange	Keyed	Receptacle Housing	Snap-In		Panel Mount			Polybutylene Terephthalate (PBT)	UL94 V-0	-15 °C	60 °C	Shielded			20						Black	Circular	Polybutylene Terephthalate (PBT)	Contacts Not Included	14
