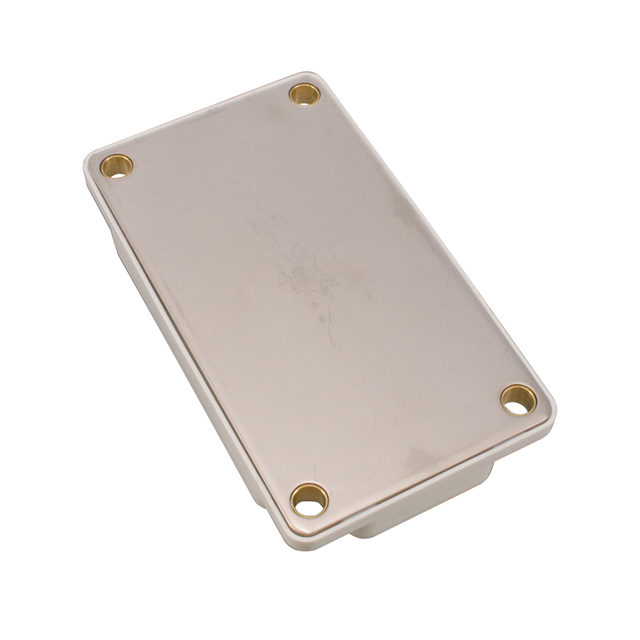

APTDF200KK60D16AG-Module Series

600V/Fast diode Common-cathode/Si Diode Modules

Catalog

600V/Fast diode Common-cathode/Si Diode Modules

Part	Operating Temperature - Junction [Min]	Operating Temperature - Junction [Max]	Diode Configuration	Current - Average Rectified (Io) (per Diode)	Technology	Mounting Type	Package / Case	Reverse Recovery Time (trr)	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If	Speed
Microchip Technology APTDF200KK60D16AG	-40 °C	175 ░C	1 Pair Common Cathode	460 A	Standard	Chassis Mount	Module	160 ns	600 V	50 µA	2.5 V	200 mA 500 ns

Catalog

600V/Fast diode Common-cathode/Si Diode Modules

Key Features

- • Configuration: Fast diode Common-cathode

- • VRRM (V): 600

- • VF (V): 1.6

- • Current (A) Tc=80°C: 200

- • Silicon type: FRED diode

- • Package: D1

Description

• FRED Si diode • Fast recovery times • Soft recovery characteristics • High blocking voltage • High current • Low leakage current • M6 power connectors • Aluminum Nitride (AlN) substrate for improved thermal performance • Low stray inductance • Direct mounting to heatsink (isolated package) • Low junction-to-case thermal resistance • RoHS Compliant
