U.FL Series

Catalog

RF CABLE ASSEMBLIES U.FL M TO OPEN ASBLY 600MM 1.37DIA GRAY

Part	Overall Impedance	1st Connector	Length [x]	Length [x]	1st Connector Mounting Type	Style	1st Contact Gender	Color	2nd Connector	Operating Temperature [Max]	Operating Temperature [Min]	Cable Type	Cable Type [diameter]	Frequency - Max [Max]	Features	Center Contact Material	Center Contact Finish	Connector Style	Accessory Type	For Use With/Related Products	Body Finish	Body Material	2nd Connector Mounting Type	2nd Contact Gender	Length	Length
Hirose Electric Co Ltd U.FL-LP-088K1T-A-(600)	50 Ohms	U.FL (UMCC) Plug Right Angle	23.62 in	600 mm	Free Hanging (In-Line)	U.FL (UMCC) to Cable	Female	Gray	Cable (Round)	90 °C	-40 C	Coaxial Cable	1.37 mm	6000 MHz	Shielded
Hirose Electric Co Ltd U.FL-LP-068N2-A-(800)	50 Ohms	U.FL (UMCC) Plug Right Angle	31.5 in	0.8 m	Free Hanging (In-Line)	U.FL (UMCC) to Cable	Female	Black	Cable (Round)	90 °C	-40 C	Coaxial Cable	1.13 mm	6000 MHz	Shielded

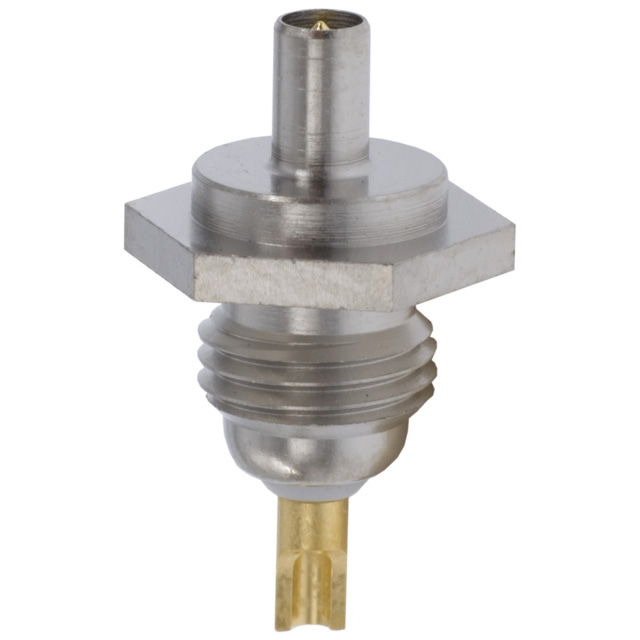

Hirose Electric Co Ltd U.FL-R-1								Silver								Beryllium Copper	Gold	U.FL (UMCC)	Inspection Adapter	U.FL Plugs	Nickel	Stainless Steel
Hirose Electric Co Ltd UFL-2LPA-068Y3T-A-200	50 Ohms	U.FL (UMCC) Plug Right Angle			Free Hanging (In-Line)	U.FL (UMCC) to U.FL (UMCC)	Female		U.FL (UMCC) Plug Right Angle	105 ░C	-40 C	Coaxial Cable	1.13 mm	6000 MHz									Free Hanging (In-Line)	Female	200 mm	7.874 in
Hirose Electric Co Ltd U.FL-LP-068N2-A-(90)	50 Ohms	U.FL (UMCC) Plug Right Angle			Free Hanging (In-Line)	U.FL (UMCC) to Cable	Female	Black	Cable (Round)	90 °C	-40 C	Coaxial Cable	1.13 mm	6000 MHz	Shielded										90 mm	3.543 "
Hirose Electric Co Ltd U.FL-066/CR-AD2(69)																			Cable Clamp	U.FL-066/CR-AD2
Hirose Electric Co Ltd U.FL-LP-04N1-A-(60)	50 Ohms	U.FL (UMCC) Plug Right Angle	2.362 in	60 mm	Free Hanging (In-Line)	U.FL (UMCC) to Cable	Female	Gray	Cable (Round)	90 °C	-40 C	Coaxial Cable	0.81 mm	6000 MHz	Shielded
Hirose Electric Co Ltd U.FL-2LP(V)-04N1-A-(600)	50 Ohms	U.FL (UMCC) Plug Right Angle	23.62 in	600 mm	Free Hanging (In-Line)	U.FL (UMCC) to U.FL (UMCC)	Female	White	U.FL (UMCC) Plug Right Angle			Coaxial Cable	0.81 mm	6000 MHz	Shielded								Free Hanging (In-Line)	Female
Hirose Electric Co Ltd U.FL-2LP-066J1-A-(150)	50 Ohms	U.FL (UMCC) Plug Right Angle			Free Hanging (In-Line)	U.FL (UMCC) to U.FL (UMCC)	Female	Gray	U.FL (UMCC) Plug Right Angle			1.32mm OD Coaxial Cable		6000 MHz	Shielded								Free Hanging (In-Line)	Female	150 mm	5.906 in
Hirose Electric Co Ltd U.FL-LP-066J2-A-(170)	50 Ohms	U.FL (UMCC) Plug Right Angle			Free Hanging (In-Line)	U.FL (UMCC) to Cable	Female	Black	Cable (Round)	90 °C	-40 C	1.32mm OD Coaxial Cable		6000 MHz	Shielded										170 mm	6.693 in
