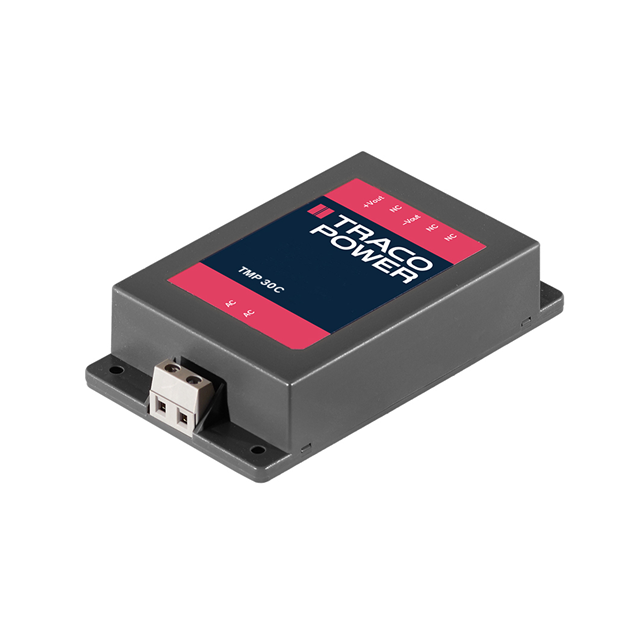

TMP 30215 Series
Manufacturer: Traco Power
Beta
⌘K
AC/DC CONVERTER +/-15V 30W
| Part | Minimum Load Required | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Features | Number of Outputs | Power (Watts) | Type | Voltage - Output 1 | Current - Output 2 | Approval Agency | Voltage - Output 2 | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Voltage - Input [Min] | Voltage - Input [Max] | Current - Output 1 | Mounting Type | Voltage - Isolation | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Traco Power | 25.7 mm | 2.51 " | 112 mm | 1.01 " | 4.41 " | 63.8 mm | Adjustable Output Universal Input | 2 | 30 Watts | Enclosed | 15 V | 1 A | CB CE cULus cURus | -15 V | 70 °C | -25 °C | 80 % | 85 VAC 120 VDC | 264 VAC 370 VDC | 1 A | Chassis Mount | 3000 V | Industrial ITE (Commercial) |
