BM14B Series

Catalog

CONN HDR 50POS SMD GOLD

Part	Contact Finish	Mounting Type	Features	Mated Stacking Heights	Number of Positions	Pitch	Pitch	Connector Type	Number of Rows [custom]	Height Above Board [z]	Height Above Board [z]
Hirose Electric Co Ltd BM14B(0.8)-50DP-0.4V(51)	Gold	Surface Mount	Solder Retention	0.8 mm	50	0.4 mm	0.016 in	Header Outer Shroud Contacts	2	0.024 in	0.61 mm
Hirose Electric Co Ltd BM14B(0.8)-40DS-0.4V(51)	Gold	Surface Mount	Solder Retention	0.8 mm	40	0.4 mm	0.016 in	Receptacle Center Strip Contacts	2	0.031 in	0.8 mm
Hirose Electric Co Ltd BM14B(0.8)-60DP-0.4V(51)	Gold	Surface Mount	Solder Retention	0.8 mm	60	0.4 mm	0.016 in	Header Outer Shroud Contacts	2	0.024 in	0.61 mm
Hirose Electric Co Ltd BM14B(0.8)-40DS-0.4V(52)	Gold	Surface Mount	Solder Retention	0.8 mm	40	0.4 mm	0.016 in	Receptacle Center Strip Contacts	2	0.031 in	0.8 mm

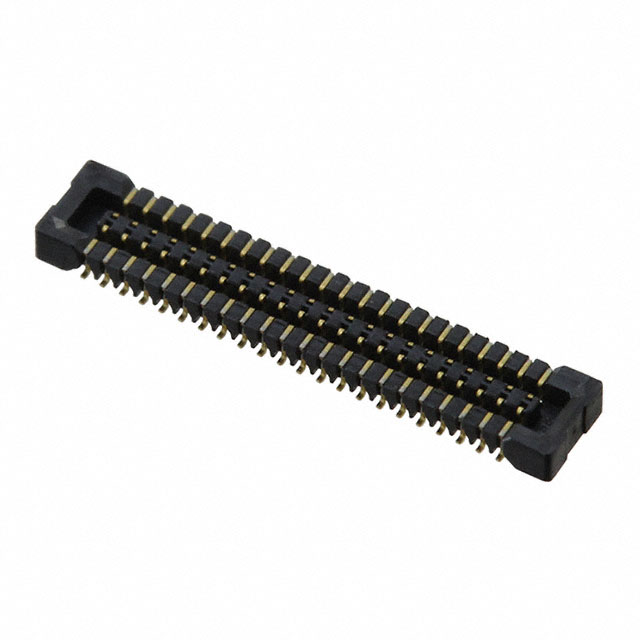

Hirose Electric Co Ltd BM14B(0.8)-40DS-0.4V(53)	Gold	Surface Mount	Solder Retention	0.8 mm	40	0.4 mm	0.016 in	Receptacle Center Strip Contacts	2	0.031 in	0.8 mm
Hirose Electric Co Ltd BM14B(0.8)-40DP-0.4V(51)	Gold	Surface Mount	Solder Retention	0.8 mm	40	0.4 mm	0.016 in	Header Outer Shroud Contacts	2	0.024 in	0.61 mm
Hirose Electric Co Ltd BM14B(0.8)-50DS-0.4V(51)	Gold	Surface Mount	Solder Retention	0.8 mm	50	0.4 mm	0.016 in	Receptacle Center Strip Contacts	2	0.031 in	0.8 mm
