A3A-14DA Series

Catalog

CONN RCPT 14POS 0.079 GOLD SMD

Part	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Contact Material	Contact Shape	Features	Operating Temperature [Min]	Operating Temperature [Max]	Style	Number of Positions	Voltage Rating	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Row Spacing - Mating	Row Spacing - Mating	Mounting Type	Material Flammability Rating	Number of Rows [custom]	Mated Stacking Heights	Insulation Height	Insulation Height	Insulation Color	Number of Positions Loaded	Connector Type	Pitch - Mating	Pitch - Mating	Termination	Contact Finish - Post	Contact Finish - Mating

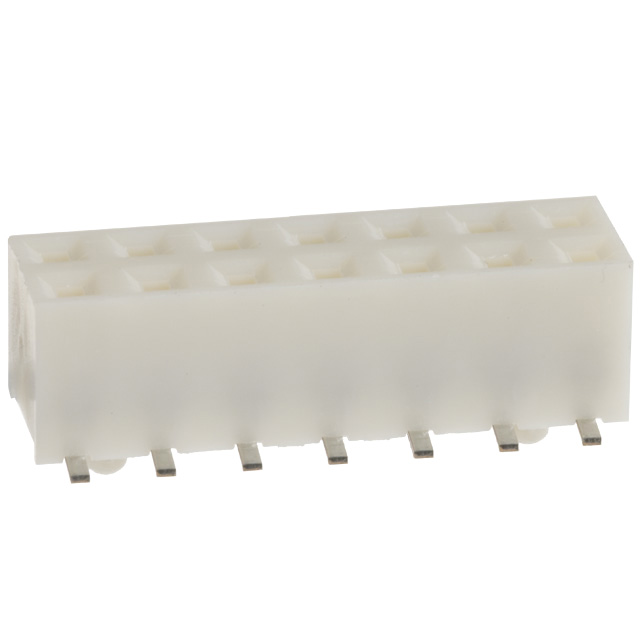

Hirose Electric Co Ltd A3A-14DA-2SV(71)	General Purpose Telecommunications	39.4 çin	1 çm	Polyphenylene Sulfide (PPS)	Phosphor Bronze	Square	Board Guide	-55 C	85 °C	Board to Board Cable	14	200 VAC	Female Socket	8 µin	0.203 µm	Push-Pull	2 mm	0.079 in	Surface Mount	UL94 V-0	2	5.1 mm 6 mm	0.165 in	4.2 mm	Brown	All	Receptacle	0.079 "	2 mm	Solder	Tin	Gold
Hirose Electric Co Ltd A3A-14DA-2SV	General Purpose Telecommunications	39.4 çin	1 çm	Polyphenylene Sulfide (PPS)	Phosphor Bronze	Square	Board Guide	-55 C	85 °C	Board to Board Cable	14	200 VAC	Female Socket	8 µin	0.203 µm	Push-Pull	2 mm	0.079 in	Surface Mount	UL94 V-0	2	5.1 mm 6 mm	0.165 in	4.2 mm	Brown	All	Receptacle	0.079 "	2 mm	Solder	Tin	Gold
