L298 Series

Catalog

MOTOR DRIVER, FULL BRIDGE, TTL LOGIC, 4 OUTPUTS, 4.8 V TO 46 V SUPPLY, 4 A OUT, POWERSO-20

Part	Applications	Voltage - Load [Min]	Voltage - Load [Max]	Mounting Type	Technology	Interface	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Output Configuration	Voltage - Supply [Max]	Voltage - Supply [Min]	Load Type	Fault Protection	Current - Peak Output	Package / Case
STMicroelectronics L298P	DC Motors Relays Solenoids Stepper Motors	4.8 V	46 V	Surface Mount	Bipolar	Logic	PowerSO-20	-25 °C	130 °C	Full Bridge (2)	7 V	4.5 V	Inductive	Current Limiting Over Temperature	2 A	20-SOIC (0.433" 11.00mm Width) Exposed Pad
STMicroelectronics L298N	DC Motors Relays Solenoids Stepper Motors	4.8 V	46 V	Through Hole	Bipolar	Logic	15-Multiwatt	-25 °C	130 °C	Half Bridge (4)	7 V	4.5 V	Inductive	Current Limiting Over Temperature	2 A	Multiwatt-15 (Vertical Bent and Staggered Leads)
STMicroelectronics L298P013TR	DC Motors Relays Solenoids Stepper Motors	4.8 V	46 V	Surface Mount	Bipolar	Logic	PowerSO-20	-25 °C	130 °C	Half Bridge (4)	7 V	4.5 V	Inductive	Current Limiting Over Temperature	2 A	20-SOIC (0.433" 11.00mm Width) Exposed Pad

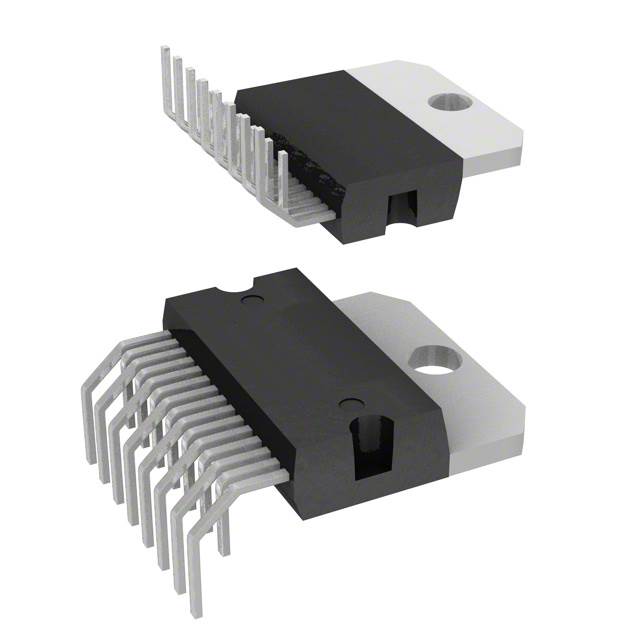

STMicroelectronics L298HN	DC Motors Relays Solenoids Stepper Motors	4.8 V	46 V	Through Hole	Bipolar	Logic	15-Multiwatt	-25 °C	130 °C	Half Bridge (4)	7 V	4.5 V	Inductive	Current Limiting Over Temperature	2 A	Multiwatt-15 (Horizontal Bent and Staggered Leads)
