11AA040 Series

1.8V UNI/O® Serial EEPROM with 4Kb of memory

Catalog

1.8V UNI/O® Serial EEPROM with 4Kb of memory

Part	Package / Case	Technology	Mounting Type	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Write Cycle Time - Word	Write Cycle Time - Page	Package Name	Memory Format	Memory Size	Memory Type	Clock Frequency	Memory Interface (Type)	Memory Width	Memory Depth	Package Length	Package Width
Microchip Technology 11AA040T-I/TT	SC-59 SOT-23-3 TO-236-3	EEPROM	Surface Mount	85 °C	-40 °C	5.5 V	1.8 V	5 ms	5 ms	SOT-23-3	EEPROM	4 Kbit	Non-Volatile	100 kHz	Single Wire	8 bit	512
Microchip Technology 11AA040-I/SN		EEPROM	Surface Mount	85 °C	-40 °C	5.5 V	1.8 V	5 ms	5 ms	8-SOIC	EEPROM	4 Kbit	Non-Volatile	100 kHz	Single Wire	8 bit	512	0.154 in	3.9 mm
Microchip Technology 11AA040T-I/SN		EEPROM	Surface Mount	85 °C	-40 °C	5.5 V	1.8 V	5 ms	5 ms	8-SOIC	EEPROM	4 Kbit	Non-Volatile	100 kHz	Single Wire	8 bit	512	0.154 in	3.9 mm

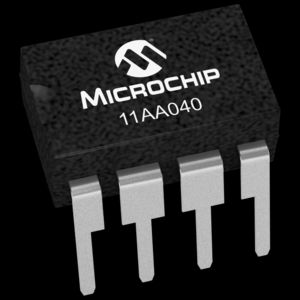

Microchip Technology 11AA040-I/P		EEPROM	Through Hole	85 °C	-40 °C	5.5 V	1.8 V	5 ms	5 ms	8-DIP 8-PDIP	EEPROM	4 Kbit	Non-Volatile	100 kHz	Single Wire	8 bit	512	0.3 in	7.62 mm

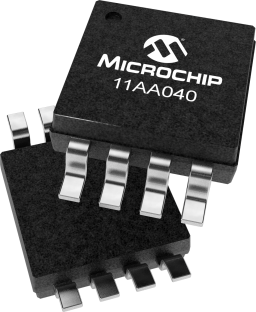

Microchip Technology 11AA040T-I/MS		EEPROM	Surface Mount	85 °C	-40 °C	5.5 V	1.8 V	5 ms	5 ms	8-MSOP 8-TSSOP 8-MSOP	EEPROM	4 Kbit	Non-Volatile	100 kHz	Single Wire	8 bit	512	0.118 in	3 mm
Microchip Technology 11AA040-I/MS		EEPROM	Surface Mount	85 °C	-40 °C	5.5 V	1.8 V	5 ms	5 ms	8-MSOP 8-TSSOP 8-MSOP	EEPROM	4 Kbit	Non-Volatile	100 kHz	Single Wire	8 bit	512	0.118 in	3 mm
Microchip Technology 11AA040T-I/MNY	8-WFDFN Exposed Pad	EEPROM	Surface Mount	85 °C	-40 °C	5.5 V	1.8 V	5 ms	5 ms	8-TDFN	EEPROM	4 Kbit	Non-Volatile	100 kHz	Single Wire	8 bit	512	2 mm	3 mm

Catalog

1.8V UNI/O® Serial EEPROM with 4Kb of memory

Description

Need more microcontroller pins for new features? Want to stay with a low pin-count microcontroller rather than switching to a more expensive one? Microchip’s UNI/O® bus serial EEPROM uses only one connection to the host microcontroller. This compares to two or three pins for I2C and three to six pins for Microwire or SPI buses. This proprietary bus offers advanced features like a status register and write protection on demand, along with all I/O, memory array and command functions through a single pin.
