AD261 Series

Catalog

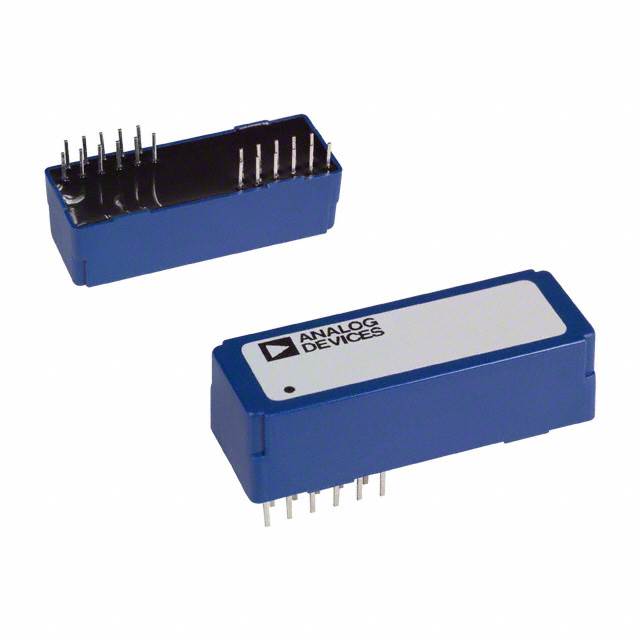

DGTL ISO 3.5KV GEN PURP 22DIP

Part	Mounting Type	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Propagation Delay tpLH / tpHL (Max) [Max] [custom]	Voltage - Supply [Min]	Voltage - Supply [Max]	Common Mode Transient Immunity (Min) [Min]	Package / Case	Type	Number of Channels [custom]	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Technology	Inputs - Side 1/Side 2	Channel Type	Voltage - Isolation	Inputs - Side 1/Side 2 [custom]	Inputs - Side 1/Side 2 [custom]	Inputs - Side 1/Side 2 [Min]	Inputs - Side 1/Side 2 [Max]
Analog Devices AD261BND-1	Through Hole	25 ns	25 ns	4 V	5.75 V	10 kV/µs	22-DIP Module	General Purpose	5	22-PDIP	-25 °C	85 °C	Magnetic Coupling	0.25	Unidirectional	3500 Vrms
Analog Devices AD261AND-3	Through Hole	25 ns	25 ns	4 V	5.75 V	10 kV/µs	22-DIP Module	General Purpose	5	22-PDIP	-25 °C	85 °C	Magnetic Coupling		Unidirectional	1750 Vrms	3	2
Analog Devices AD261BND-2	Through Hole	25 ns	25 ns	4 V	5.75 V	10 kV/µs	22-DIP Module	General Purpose	5	22-PDIP	-25 °C	85 °C	Magnetic Coupling		Unidirectional	3500 Vrms	2	3
Analog Devices AD261AND-5	Through Hole	25 ns	25 ns	4 V	5.75 V	10 kV/µs	22-DIP Module	General Purpose	5	22-PDIP	-25 °C	85 °C	Magnetic Coupling		Unidirectional	1750 Vrms
Analog Devices AD261BND-0	Through Hole	25 ns	25 ns	4 V	5.75 V	10 kV/µs	22-DIP Module	General Purpose	5	22-PDIP	-25 °C	85 °C	Magnetic Coupling		Unidirectional	3500 Vrms			0	5
