PIC18F27Q83 Series

Microcontroller family with CAN Flexible Data

Catalog

Microcontroller family with CAN Flexible Data

Part	Oscillator Type	Core Size	Operating Temperature [Max]	Operating Temperature [Min]	RAM Size	Speed	Program Memory Type	Supplier Device Package	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Mounting Type	Data Converters	Core Processor	Number of I/O	Connectivity	Package / Case	Data Converters [custom]	Data Converters [custom]	Peripherals	Program Memory Size	Package / Case [custom]	Package / Case [custom]	Package / Case	Package / Case	Package / Case [x]	Package / Case [y]
Microchip Technology PIC18F27K42T-I/ML	Internal	8-Bit	85 °C	-40 °C	8 K	64 MHz	FLASH	28-QFN (6x6)	5.5 V	2.3 V	Surface Mount	A/D 24x12b D/A 1x5b	PIC	25	I2C LINbus SPI UART/USART	28-VQFN Exposed Pad

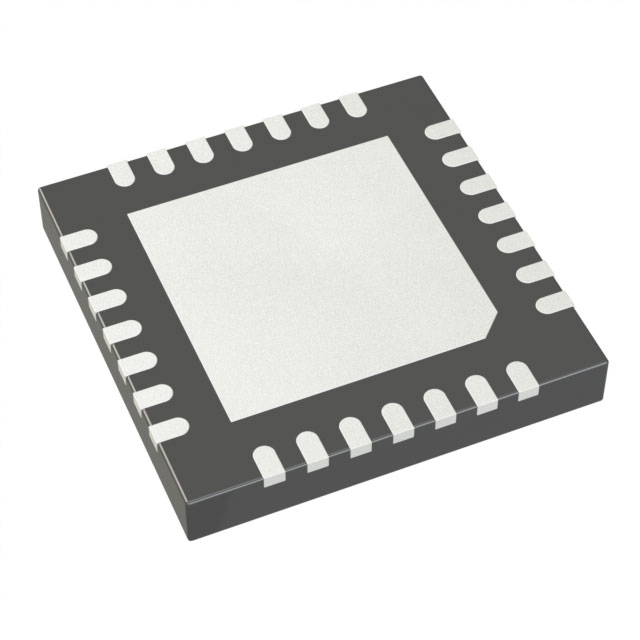

Microchip Technology PIC18F27Q83T-I/5N	Internal	8-Bit	85 °C	-40 °C	12.5 K	64 MHz	FLASH	28-VQFN (6x6)	5.5 V	1.8 V	Surface Mount		PIC	25	CANbus I2C LINbus SPI UART/USART	28-VQFN Exposed Pad	8 b 12 b	1 24	Brown-out Detect/Reset DMA POR PWM WDT	128 KB
Microchip Technology PIC18F27Q43-I/SS	Internal	8-Bit	85 °C	-40 °C	8 K	64 MHz	FLASH	28-SSOP	5.5 V	1.8 V	Surface Mount		PIC	25	I2C LINbus SPI UART/USART	28-SSOP	8 b 12 b	1 24	Brown-out Detect/Reset LVD POR PWM WDT	128 KB	0.209 in	5.3 mm
Microchip Technology PIC18F27Q43-E/STX	Internal	8-Bit	125 °C	-40 °C	8 K	64 MHz	FLASH	28-VQFN (4x4)	5.5 V	1.8 V	Surface Mount		PIC	25	I2C LINbus SPI UART/USART	28-VFQFN Exposed Pad	8 b 12 b	1 24	Brown-out Detect/Reset LVD POR PWM WDT	128 KB
Microchip Technology PIC18F27Q43-I/STX	Internal	8-Bit	85 °C	-40 °C	8 K	64 MHz	FLASH	28-VQFN (4x4)	5.5 V	1.8 V	Surface Mount		PIC	25	I2C LINbus SPI UART/USART	28-VFQFN Exposed Pad	8 b 12 b	1 24	Brown-out Detect/Reset LVD POR PWM WDT	128 KB
Microchip Technology PIC18F27Q83-I/SP	Internal	8-Bit	85 °C	-40 °C	12.5 K	64 MHz	FLASH	28-SPDIP	5.5 V	1.8 V	Through Hole		PIC	25	CANbus I2C LINbus SPI UART/USART	28-DIP	8 b 12 b	1 24	Brown-out Detect/Reset DMA POR PWM WDT	128 KB			0.3 in	7.62 mm
Microchip Technology PIC18F27Q10-E/SO	Internal	8-Bit	125 °C	-40 °C	3.53 K	64 MHz	FLASH	28-SOIC	5.5 V	1.8 V	Surface Mount		PIC	25	I2C LINbus SPI UART/USART	28-SOIC	5 10	1 24	Brown-out Detect/Reset HLVD POR PWM WDT						0.295 in	7.5 mm
Microchip Technology PIC18F27Q83T-I/SS	Internal	8-Bit	85 °C	-40 °C	12.5 K	64 MHz	FLASH	28-SSOP	5.5 V	1.8 V	Surface Mount		PIC	25	CANbus I2C LINbus SPI UART/USART	28-SSOP	8 b 12 b	1 24	Brown-out Detect/Reset DMA POR PWM WDT	128 KB	0.209 in	5.3 mm
Microchip Technology PIC18F27Q43-I/SO	Internal	8-Bit	85 °C	-40 °C	8 K	64 MHz	FLASH	28-SOIC	5.5 V	1.8 V	Surface Mount		PIC	25	I2C LINbus SPI UART/USART	28-SOIC	8 b 12 b	1 24	Brown-out Detect/Reset LVD POR PWM WDT	128 KB					0.295 in	7.5 mm
Microchip Technology PIC18F27Q43-E/SP	Internal	8-Bit	125 °C	-40 °C	8 K	64 MHz	FLASH	28-SPDIP	5.5 V	1.8 V	Through Hole		PIC	25	I2C LINbus SPI UART/USART	28-DIP	8 b 12 b	1 24	Brown-out Detect/Reset LVD POR PWM WDT	128 KB			0.3 in	7.62 mm

Key Features

- PIC18 Core with 83 Instructions, 31 Stack Levels

- Internal 64MHz oscillator

- Operating Voltage Range:- 1.8V – 5.5V

- Temperature Range:- Industrial Version (-40C to 85C)- Extended Version (-40C to 125C)

- 128 KB Flash Program Memory with self read/write capability

- 3615 Bytes Data SRAM Memory

- 1024 Bytes of EEPROM

- [10-bit ADC with computation, 24 channels](https://www.microchip.com/en-us/products/microcontrollers-and-microprocessors/8-bit-mcus/core-independent-and-analog-peripherals/integrated-analog/analog-to-digital-converter-with-enhanced-features)

- [8 x Configurable Logic Cell (CLC)](https://www.microchip.com/en-us/products/microcontrollers-and-microprocessors/8-bit-mcus/core-independent-and-analog-peripherals/system-flexibility/custom-logic)

- [1 x 5-bit DAC](https://www.microchip.com/en-us/products/microcontrollers-and-microprocessors/8-bit-mcus/core-independent-and-analog-peripherals/integrated-analog/digital-to-analog-converter)

- [2 x Comparators](https://www.microchip.com/en-us/products/microcontrollers-and-microprocessors/8-bit-mcus/core-independent-and-analog-peripherals/integrated-analog/comparator)

- [Fixed Voltage Reference (FVR) module - 1.024V, 2.048V and 4.096V output levels](https://www.microchip.com/en-us/products/microcontrollers-and-microprocessors/8-bit-mcus/core-independent-and-analog-peripherals/integrated-analog/voltage-reference)

- Hardware Capacitive Voltage Divider (CVD) for mTouch buttons/sliders

- [1 x Zero-Cross Detect](https://www.microchip.com/en-us/products/microcontrollers-and-microprocessors/8-bit-mcus/core-independent-and-analog-peripherals/integrated-analog/zero-cross-detect)

- 1 x I2C/SPI

- 1 x EUSART with LIN support

- [CRC with Memory Scan](https://www.microchip.com/en-us/products/microcontrollers-and-microprocessors/8-bit-mcus/core-independent-and-analog-peripherals/safety-and-monitoring/cyclic-redundancy-check)

- [Windowed Watchdog Timer (WWDT)](https://www.microchip.com/en-us/products/microcontrollers-and-microprocessors/8-bit-mcus/core-independent-and-analog-peripherals/safety-and-monitoring/windowed-watchdog-timer)

- [1 x Hardware Limit Timer (HLT)](https://developerhelp.microchip.com/xwiki/bin/view/products/mcu-mpu/8bit-pic/peripherals/timers/hardware-limit/)

- [1 x Complementary Waveform Generator](https://www.microchip.com/en-us/products/microcontrollers-and-microprocessors/8-bit-mcus/core-independent-and-analog-peripherals/waveform-control/complementary-waveform-generator)

- [2 x standalone 10-bit PWM modules](https://www.microchip.com/en-us/products/microcontrollers-and-microprocessors/8-bit-mcus/core-independent-and-analog-peripherals/waveform-control/pulse-width-modulation)

- 2 x Capture/Compare/PWM modules

- [Three 8-bit Timers/Counters](https://www.microchip.com/en-us/products/microcontrollers-and-microprocessors/8-bit-mcus/core-independent-and-analog-peripherals/timer-peripheral)

- Four 16-bit Timers/Counters

- 1 x Hardware Limit Timer (HLT)

- Extended Watchdog Timer (WDT)

- Doze, Idle, and Sleep Power Saving Operating Modes

- Low Current Power-on Reset (POR)

- Brown-out Reset (BOR)

- Low-Power BOR (LPBOR)

- [Peripheral Pin Select](https://www.microchip.com/en-us/products/microcontrollers-and-microprocessors/8-bit-mcus/core-independent-and-analog-peripherals/system-flexibility/input-and-output-features)

- In-Circuit Debug Integrated On-Chip

- In-Circuit Serial Programing (ICSP) via Two Pins

Description

The PIC18-Q84 family expands the 8-bit MCUs by combining an extensive array of Core Independent Peripherals (CIPs) with Controller Area Network Flexible Data Rate (CAN FD). These cost optimized MCUs contain time-saving CIPs in up to 48-pins with up to 128 KB of flash memory. The family introduces new features and peripherals like the Universal Timer (UTMR) with customization capability; context switching added to the 12-bit ADC with Computation for automating analog signal analysis for real-time system response. Additionally, it includes industry standard options, JTAG Boundary Scan, 32-bit Cyclic Redundancy Check (CRC) with memory scan on boot for added system safety. System designers can benefit greatly by saving time, as it is significantly easier to configure a hardware-based peripheral, as opposed to writing and validating an entire software routine, to accomplish a task. **Functional Safety**: This product is suitable for [safety-critical applications](https://www.microchip.com/en-us/products/microcontrollers-and-microprocessors/8-bit-mcus/functional-safety) targeting automotive (IEC 60730), industrial (ISO26262) and automotive products (IEC 61508) products. Various important collateral and tools are available to aid developers of safety applications – refer to the Product Features below for a list of device specific safety collaterals. TÜV SÜD certified MPLABX development tools are also available for this product. Contact your local Microchip sales office or your distributor for more information.
