MP34DT05 Series

MEMS audio sensor omnidirectional stereo digital microphone

Catalog

MEMS audio sensor omnidirectional stereo digital microphone

Part	Termination	Type	S/N Ratio	Voltage - Rated	Shape	Sensitivity	Direction	Height (Max) [Max] [z]	Height (Max) [z]	Output Type	Port Location	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Frequency Range [Min]	Frequency Range [Max]	Current - Supply	Contents	Utilized IC / Part

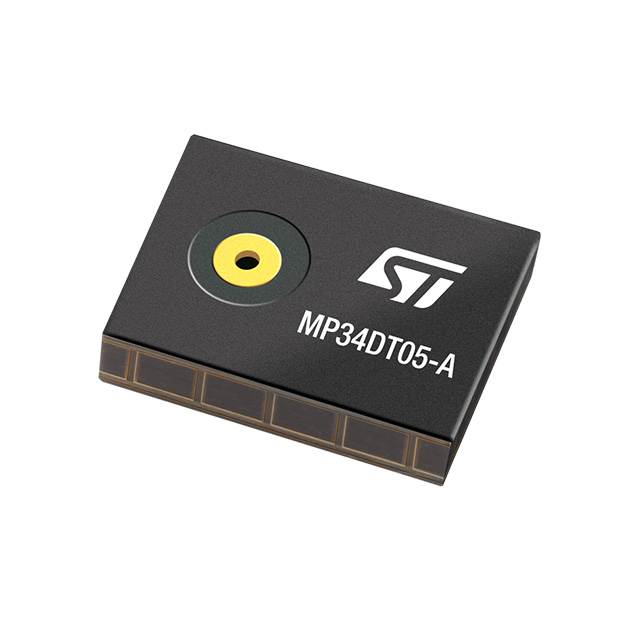

STMicroelectronics MP34DT05TR-A	Solder Pads	MEMS (Silicon)	64 dB	1.8 V	Rectangular	-26 dB	Omnidirectional	0.043 in	1.1 mm	Digital PDM	Top	0.157 "	0.118 "	4 mm	3 mm	100 Hz	10 kHz	650 µA
STMicroelectronics STEVAL-MIC001V1		Audio																	Board(s)	MP34DT05-A

Catalog

MEMS audio sensor omnidirectional stereo digital microphone

Description

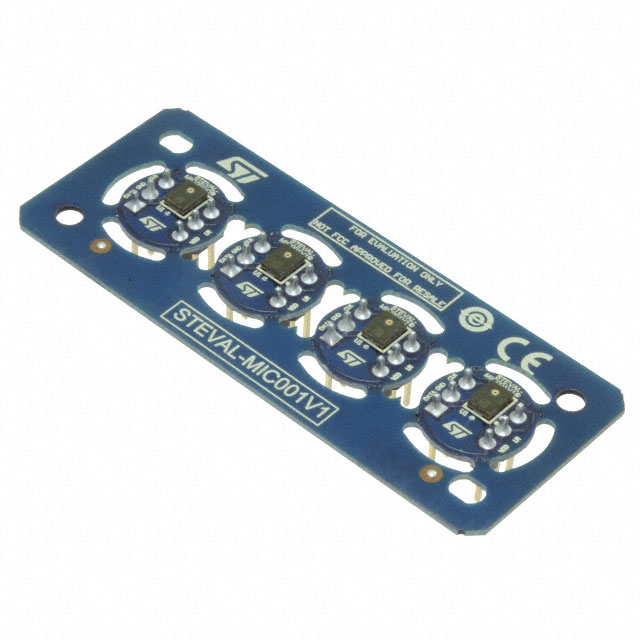

The STEVAL-MIC001V1 daughterboard is designed to be used in conjunction with the X-NUCLEO-CCA02M1 expansion board; it is able to export the four additional PDMs for any user application requirement (NBW algorithm detection).
