AS11P2 Series

Catalog

ANALOGUE MULTIPLEXER / DEMULTIPLEXER, 2:1, 1, 3 OHM, 1.65V TO 4.5V, DFN, 6 ROHS COMPLIANT: YES

Part	Channel-to-Channel Matching (ΔRon)	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply, Single (V+) [Max]	Voltage - Supply, Single (V+) [Min]	On-State Resistance (Max) [Max]	Charge Injection	Switch Circuit	Supplier Device Package [y]	Supplier Device Package	Supplier Device Package [x]	Crosstalk	Package / Case	Current - Leakage (IS(off)) (Max)	Multiplexer/Demultiplexer Circuit	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Switch Time (Ton, Toff) (Max) [Max] [custom]	Switch Time (Ton, Toff) (Max) [Max] [custom]	-3db Bandwidth	Number of Circuits	Mounting Type

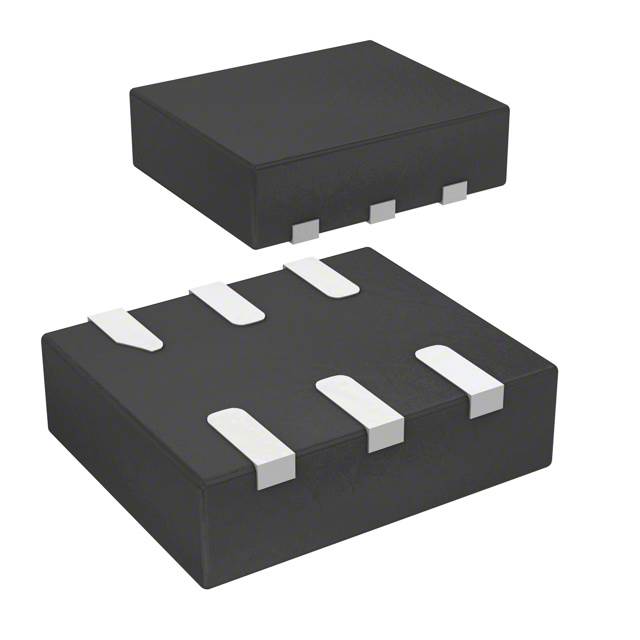

STMicroelectronics AS11P2TLRQ	50 mOhm	85 C	-40 ¯C	4.5 V	1.65 V	1.2 Ohm	33 pC	SPDT	1	6-DFN	1.2	-80 dB	6-UFDFN	20 nA	2:1	25 pF	25 pF	28 ns	21 ns	150 MHz	1	Surface Mount
