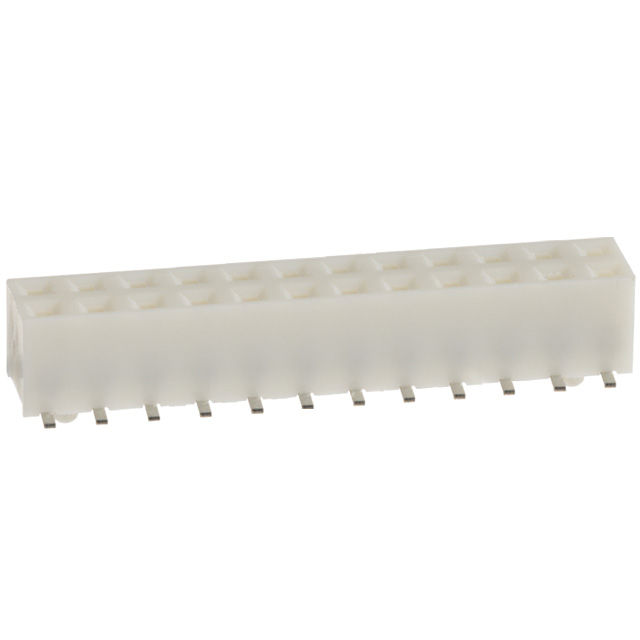

A3A-24DA Series

Catalog

CONN RCPT 24POS 0.079 GOLD SMD

Part	Contact Shape	Contact Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Insulation Material	Contact Finish - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Features	Insulation Height	Insulation Height	Material Flammability Rating	Number of Positions Loaded	Style	Fastening Type	Connector Type	Row Spacing - Mating	Row Spacing - Mating	Pitch - Mating	Pitch - Mating	Voltage Rating	Contact Type	Mated Stacking Heights	Termination	Insulation Color	Number of Rows [custom]	Mounting Type
Hirose Electric Co Ltd A3A-24DA-2SV	Square	Phosphor Bronze	39.4 çin	1 çm	General Purpose Telecommunications	Polyphenylene Sulfide (PPS)	Gold	-55 C	85 °C	Tin	8 µin	0.203 µm	24	Board Guide	0.165 in	4.2 mm	UL94 V-0	All	Board to Board Cable	Push-Pull	Receptacle	2 mm	0.079 in	0.079 "	2 mm	200 VAC	Female Socket	5.1 mm 6 mm	Solder	Brown	2	Surface Mount
Hirose Electric Co Ltd A3A-24DA-2SV(71)	Square	Phosphor Bronze	39.4 çin	1 çm	General Purpose Telecommunications	Polyphenylene Sulfide (PPS)	Gold	-55 C	85 °C	Tin	8 µin	0.203 µm	24	Board Guide	0.165 in	4.2 mm	UL94 V-0	All	Board to Board Cable	Push-Pull	Receptacle	2 mm	0.079 in	0.079 "	2 mm	200 VAC	Female Socket	5.1 mm 6 mm	Solder	Brown	2	Surface Mount
