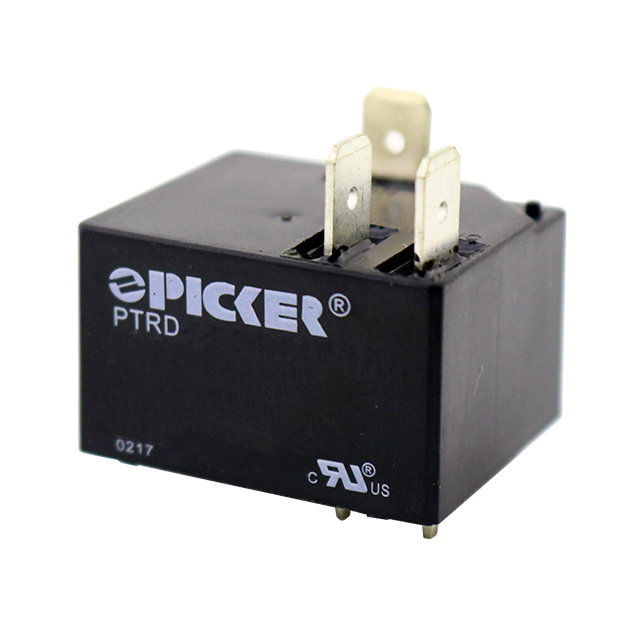

PTRD-1C Series
Manufacturer: Picker Components
Beta
⌘K
RELAY GEN PURPOSE SPDT 40A 12V
| Part | Coil Resistance | Contact Rating (Current) | Must Operate Voltage | Relay Type | Load - Max Switching (Apparent Power) | Load - Max Switching (Real Power) | Coil Insulation | Switching Voltage AC (Max) | Switching Voltage DC (Max) | Coil Type | Operate Time | Contact Form | Coil Voltage | Quick Connect Size (0.250") | Termination Style | Quick Connect Size (Primary) | Quick Connect Size (Secondary) | Quick Connect Size (0.187") | Must Release Voltage | Seal Rating | Coil Current | Release Time | Contact Material | Operating Temperature (Min) | Operating Temperature (Max) | Approval Agency | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Picker Components | 150 Ohms | 40 A | 9 VDC | General Purpose | 12000 VA | 4400 W | Class F | 300 VAC | 110 VDC | Non Latching | 15 ms | 1 C Form SPDT | 12 VAC | 0.25 in | Quick Connect | 0.187 in | 0.25 in | 0.187 in | 1.2 V | Fully Sealed | 80 mA | 10 ms | Silver Cadmium Oxide (AgCdO) | -55 °C | 100 °C | cUL cURus UL | Chassis Mount |
 Picker Components | 150 Ohms | 40 A | 9 VDC | General Purpose | 12000 VA | 4400 W | Class F | 300 VAC | 110 VDC | Non Latching | 15 ms | 1 C Form SPDT | 12 VAC | 0.25 in | PC Pin Quick Connect | 1.2 V | Fully Sealed | 80 mA | 10 ms | Silver Cadmium Oxide (AgCdO) | -55 °C | 100 °C | cUL cURus UL | Through Hole |
