AM1DM Series

Manufacturer: aimtec

Catalog

DC DC CONVERTER +/-9V 1W

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Mounting Type	Approval Agency	Number of Outputs	Voltage - Isolation	Package / Case	Efficiency	Type	Voltage - Output 2	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Applications	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Current - Output (Max)	Supplier Device Package	Voltage - Output 1	Voltage - Output 1 [Max] [custom]	Voltage - Output 1 [Min] [custom]	Current - Output (Max) [Max]
aimtec AM1DM-2409DH60-NZ	85 °C	-40 C	56 mA	Through Hole	CE cURus	2	6000 VDC	7-SIP Module 5 Leads	79 %	Isolated Module	-9 V	0.39 in	19.5 mm	0.77 in	9.8 mm	0.51 in	13 mm	21.6 V	26.4 V	Medical
aimtec AM1DM-0512DH60-NZ	85 °C	-40 C		Through Hole	CE cURus	2	6000 VDC	7-SIP Module	74 %	Isolated Module	-12 V	0.39 in	19.5 mm	0.77 in	9.8 mm	0.49 "	12.5 mm	4.5 V	5.5 V	Medical	-12 V	12 V	42 mA
aimtec AM1DM-0505SH60-NZ	85 °C	-40 C	200 mA	Through Hole	CE cURus	1	6000 VDC	7-SIP Module 4 Leads	78 %	Isolated Module		0.39 in	19.5 mm	0.77 in	9.8 mm	0.49 "	12.5 mm	4.5 V	5.5 V	Medical				7-SIP	5 V

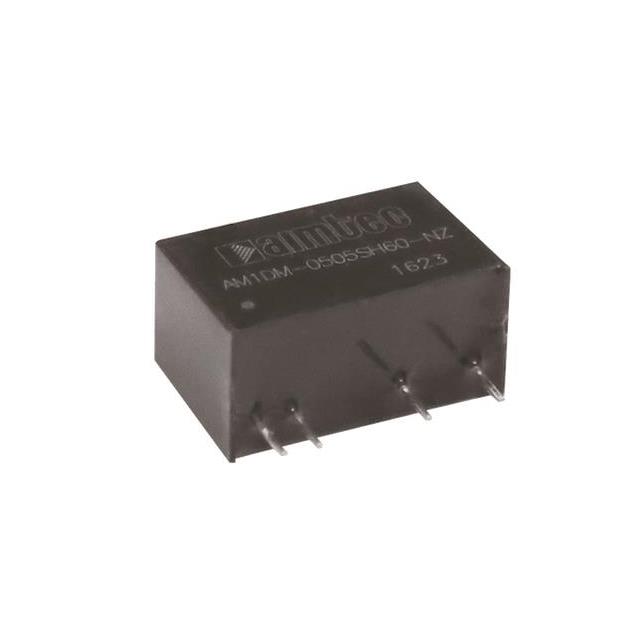

aimtec AM1DM-0305SH60-NZ	85 °C	-40 C	200 mA	Through Hole	CE cURus	1	6000 VDC	7-SIP Module 4 Leads	71 %	Isolated Module		0.39 in	19.5 mm	0.77 in	9.8 mm	0.51 in	13 mm	2.97 V	3.63 V	Medical					5 V
aimtec AM1DM-1215DH60-NZ	85 °C	-40 C	34 mA	Through Hole	CE cURus	2	6000 VDC	7-SIP Module 5 Leads	75 %	Isolated Module	-15 V	0.39 in	19.5 mm	0.77 in	9.8 mm	0.51 in	13 mm	10.8 V	13.2 V	Medical						15 V	-15 V	34 mA
aimtec AM1DM-2412DH60-NZ	85 °C	-40 C		Through Hole	CE cURus	2	6000 VDC	7-SIP Module 5 Leads	76 %	Isolated Module	-12 V	0.39 in	19.5 mm	0.77 in	9.8 mm	0.51 in	13 mm	21.6 V	26.4 V	Medical	-12 V	12 V	42 mA
aimtec AM1DM-0515DH60-NZ	85 °C	-40 C	34 mA	Through Hole	CE cURus	2	6000 VDC	7-SIP Module 5 Leads	76 %	Isolated Module	-15 V	0.39 in	19.5 mm	0.77 in	9.8 mm	0.51 in	13 mm	4.5 V	5.5 V	Medical						15 V	-15 V	34 mA
aimtec AM1DM-0512SH60-NZ	85 °C	-40 C	84 mA	Through Hole	CE cURus	1	6000 VDC	7-SIP Module 4 Leads	76 %	Isolated Module		0.39 in	19.5 mm	0.77 in	9.8 mm	0.51 in	13 mm	4.5 V	5.5 V	Medical					12 V
aimtec AM1DM-1209DH60-NZ	85 °C	-40 C	56 mA	Through Hole	CE cURus	2	6000 VDC	7-SIP Module 5 Leads	80 %	Isolated Module	-9 V	0.39 in	19.5 mm	0.77 in	9.8 mm	0.51 in	13 mm	10.8 V	13.2 V	Medical
