ADS8588S Series

16-Bit High-Speed 8-Channel Simultaneous-Sampling ADC With Bipolar Inputs on a Single Supply

Catalog

16-Bit High-Speed 8-Channel Simultaneous-Sampling ADC With Bipolar Inputs on a Single Supply

Part	Number of A/D Converters	Input Type	Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Reference Type	Number of Bits	Data Interface	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital [Max]	Package / Case	Voltage - Supply, Analog [Max]	Voltage - Supply, Analog [Min]	Sampling Rate (Per Second)	Number of Inputs	Architecture	Supplier Device Package	Features	Ratio - S/H:ADC	Utilized IC / Part	Supplied Contents	Input Range
Texas Instruments ADS8588HIPMR	8	Single Ended	PGA-ADC	-40 °C	125 °C	Surface Mount	External Internal	16	Parallel Serial	2.3 V	5.25 V	64-LQFP	5.25 V	4.75 V	500k	8	SAR	64-LQFP (10x10)	Simultaneous Sampling	0:1
Texas Instruments ADS8588SIPMR	8	Single Ended	PGA-ADC	-40 °C	125 °C	Surface Mount	External Internal	16	Parallel Serial	2.3 V	5.25 V	64-LQFP	5.25 V	4.75 V	200k	8	SAR	64-LQFP (10x10)	Simultaneous Sampling	0:1

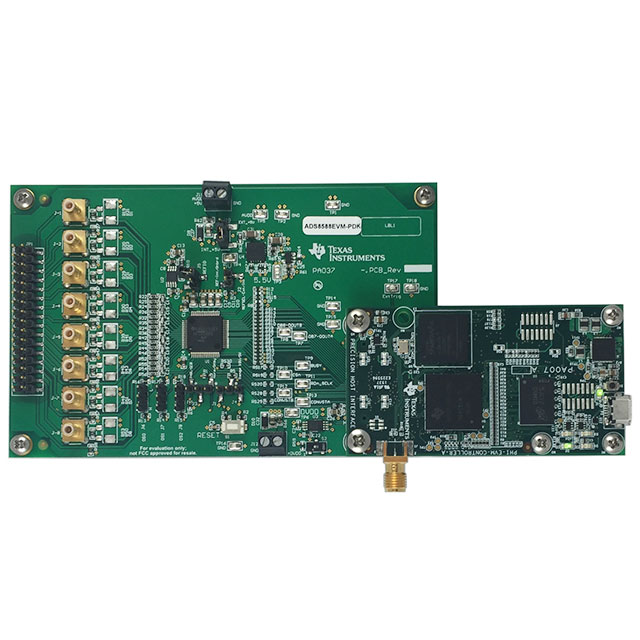

Texas Instruments ADS8588SEVM-PDK	8							16	Parallel Serial						200k						ADS8588S	Board(s)	10 V
Texas Instruments ADS8588SIPM	8	Single Ended	PGA-ADC	-40 °C	125 °C	Surface Mount	External Internal	16	Parallel Serial	2.3 V	5.25 V	64-LQFP	5.25 V	4.75 V	200k	8	SAR	64-LQFP (10x10)	Simultaneous Sampling	0:1

Catalog

16-Bit High-Speed 8-Channel Simultaneous-Sampling ADC With Bipolar Inputs on a Single Supply

Key Features

• 16-bit ADC with integrated analog front-endSimultaneous sampling: 8 channelsPin-programmable bipolar inputs: ± 10 V and ± 5 VHigh input impedance: 1 MΩ5-V analog supply: 2.3-V to 5-V I/O supplyOvervoltage input clamp with 9-kV ESDLow-drift, on-chip reference (2.5 V) and bufferPerformance:500-kSPS max throughput on all channelsDNL: ± 0.3 LSB typ; INL: ± 0.5 LSB typSNR: 92.7 dB typ; THD: − 110 dB typOver temperature performance:Max offset drift: 3 ppm/°CGain drift: 6 ppm/°COn-chip digital filter for oversamplingFlexible parallel, byte, and serial interfaceTemperature range: –40°C to +125°CPackage: LQFP-6416-bit ADC with integrated analog front-endSimultaneous sampling: 8 channelsPin-programmable bipolar inputs: ± 10 V and ± 5 VHigh input impedance: 1 MΩ5-V analog supply: 2.3-V to 5-V I/O supplyOvervoltage input clamp with 9-kV ESDLow-drift, on-chip reference (2.5 V) and bufferPerformance:500-kSPS max throughput on all channelsDNL: ± 0.3 LSB typ; INL: ± 0.5 LSB typSNR: 92.7 dB typ; THD: − 110 dB typOver temperature performance:Max offset drift: 3 ppm/°CGain drift: 6 ppm/°COn-chip digital filter for oversamplingFlexible parallel, byte, and serial interfaceTemperature range: –40°C to +125°CPackage: LQFP-64

Description

The ADS8588S device is an 8-channel, integrated data acquisition (DAQ) system based on a simultaneous-sampling, 16-bit successive approximation (SAR) analog-to-digital converter (ADC) operating at a maximum of 200 kSPS per channel. The device features a complete analog front-end for each channel, including a programmable gain amplifier (PGA) with high input impedance of 1 MΩ, input clamp, low-pass filter, and an ADC input driver. The device also features a low-drift, precision reference with a buffer to drive the ADC. A flexible digital interface supporting serial, parallel, and parallel byte communication enables the device to be used with a variety of host controllers. The ADS8588S can be configured to accept ±10-V or ±5-V true bipolar inputs using a single 5-V supply. The high input impedance allows direct connection with sensors and transformers, thus eliminating the need for external driver circuits. The high performance and accuracy, along with zero-latency conversions offered by this device, also make the ADS8588S a great choice for many industrial automation and control applications. The ADS8588S device is an 8-channel, integrated data acquisition (DAQ) system based on a simultaneous-sampling, 16-bit successive approximation (SAR) analog-to-digital converter (ADC) operating at a maximum of 200 kSPS per channel. The device features a complete analog front-end for each channel, including a programmable gain amplifier (PGA) with high input impedance of 1 MΩ, input clamp, low-pass filter, and an ADC input driver. The device also features a low-drift, precision reference with a buffer to drive the ADC. A flexible digital interface supporting serial, parallel, and parallel byte communication enables the device to be used with a variety of host controllers. The ADS8588S can be configured to accept ±10-V or ±5-V true bipolar inputs using a single 5-V supply. The high input impedance allows direct connection with sensors and transformers, thus eliminating the need for external driver circuits. The high performance and accuracy, along with zero-latency conversions offered by this device, also make the ADS8588S a great choice for many industrial automation and control applications.
