BK22C07 Series

Catalog

BOARD TO BOARD & MEZZANINE CONNECTORS PLUG, 6POS., 0.4MM PITCH, 15A

Part	Mounting Type	Height Above Board [z]	Height Above Board [z]	Connector Type	Number of Rows [custom]	Number of Positions [custom]	Number of Positions [custom]	Pitch	Pitch	Features	Contact Finish	Mated Stacking Heights	Number of Positions

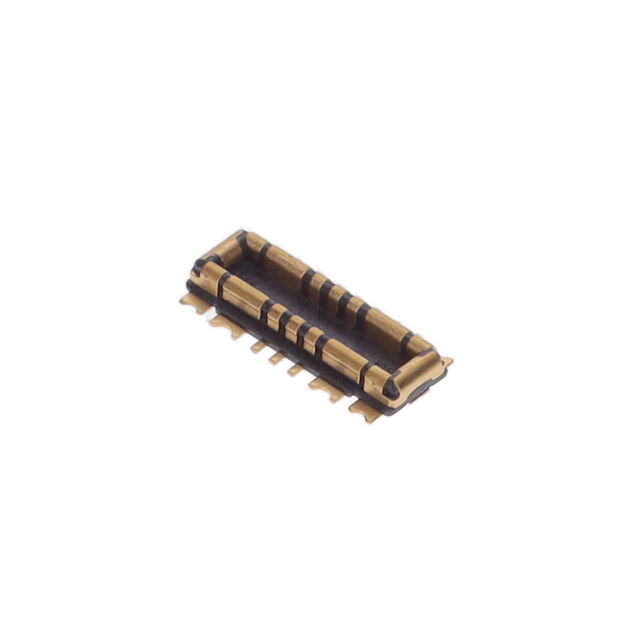

Hirose Electric Co Ltd BK22C07-6DP/2-0.4V(800)	Surface Mount	0.024 in	0.61 mm	Header Outer Shroud Contacts	2	2	6	0.4 mm	0.016 in	Solder Retention	Gold	0.7 mm

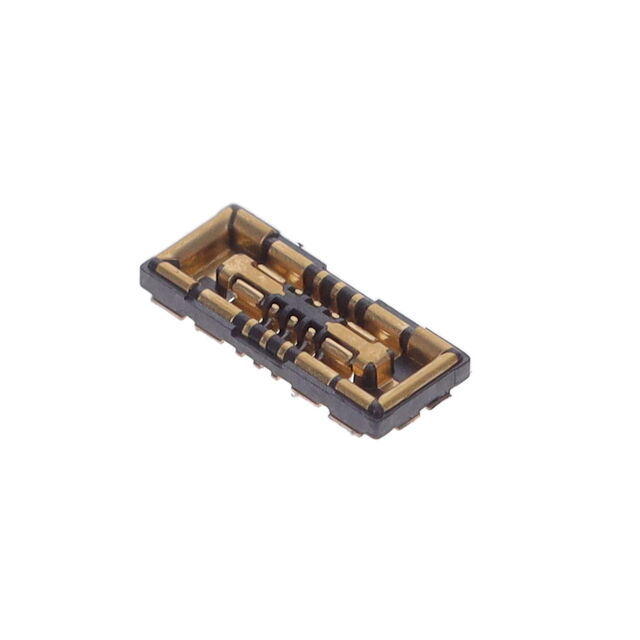

Hirose Electric Co Ltd BK22C07-6DS/2-0.4V(800)	Surface Mount	0.026 "	0.65 mm	Receptacle Center Strip Contacts	2	2	6	0.4 mm	0.016 in	Solder Retention	Gold	0.7 mm

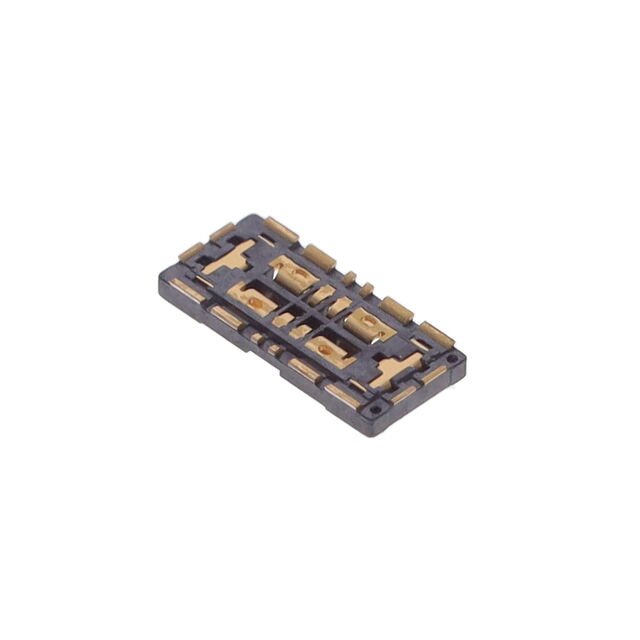

Hirose Electric Co Ltd BK22C07-4DS/2-0.4V(800)	Surface Mount	0.026 "	0.65 mm	Receptacle Center Strip Contacts	2			0.4 mm	0.016 in	Solder Retention	Gold	0.7 mm	6

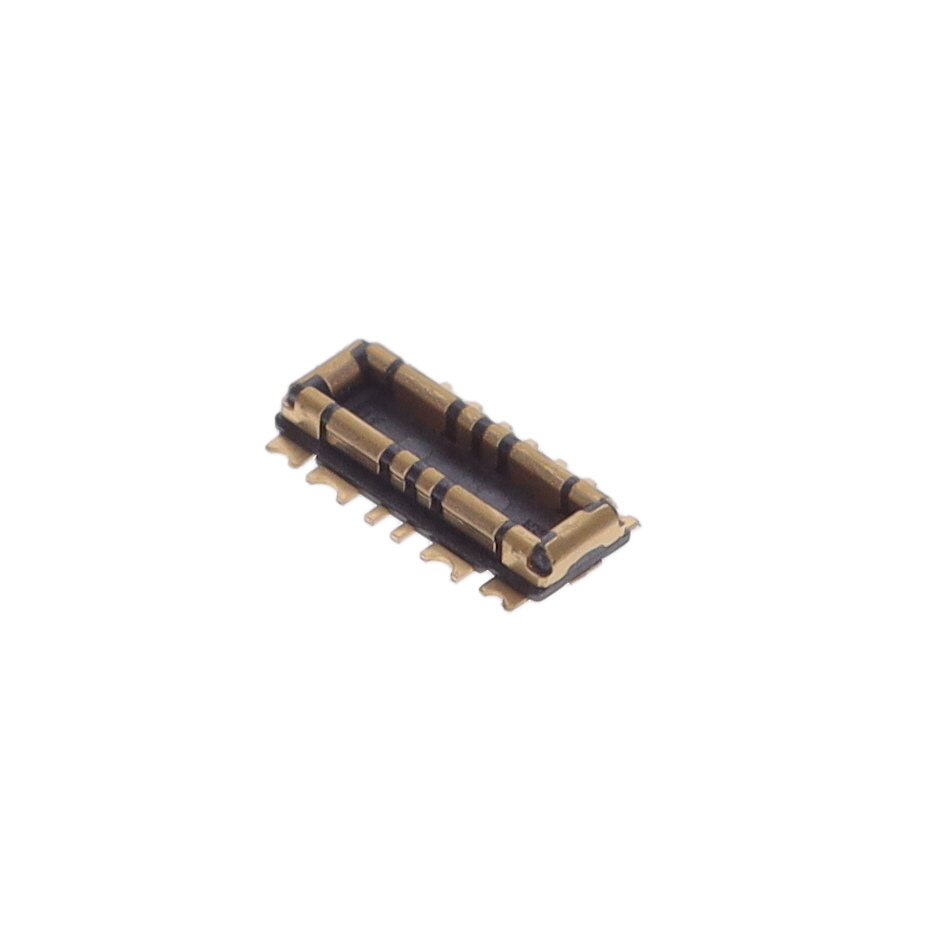

Hirose Electric Co Ltd BK22C07-4DP/2-0.4V(800)	Surface Mount	0.024 in	0.61 mm	Header Outer Shroud Contacts	2			0.4 mm	0.016 in	Solder Retention	Gold	0.7 mm	6
