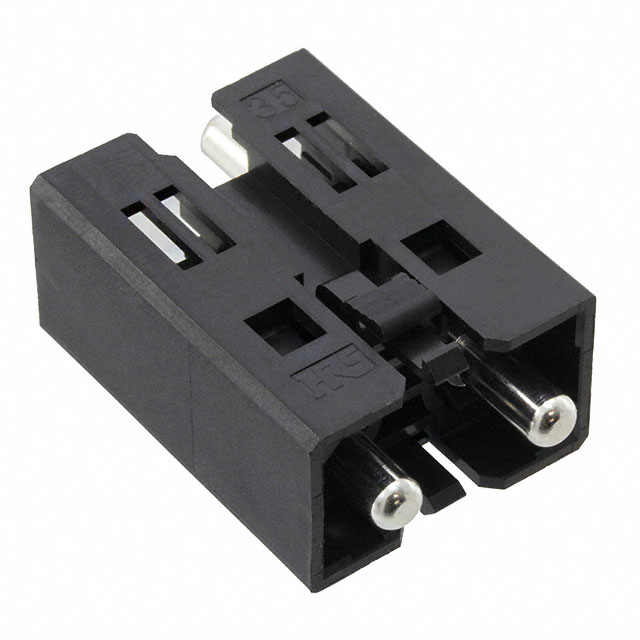

IT-P-2P Series

Catalog

CONN HEADER 2POS 12MM

Part	Mated Stacking Heights	Fastening Type	Current Rating (Amps)	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Pitch - Mating	Pitch - Mating	Insulation Color	Insulation Material	Number of Positions Loaded	Number of Positions	Number of Rows	Voltage Rating	Material Flammability Rating	Shrouding	Termination	Connector Type	Insulation Height	Insulation Height	Contact Shape	Contact Type
Hirose Electric Co Ltd IT-P-2P-25H(11)	25 mm	Locking Ramp	60 A	Silver	5.08 µm	200 µin	Copper Alloy	-55 C	85 °C	Stacking	0.472 in	12 mm	Black	Polybutylene Terephthalate (PBT)	All	2	1	300 VDC	UL94 V-0	Shrouded - 4 Wall	Solder	Interposer	0.787 in	19.99 mm	Circular	Male Pin
Hirose Electric Co Ltd IT-P-2P-35H(11)	35 mm	Locking Ramp	60 A	Silver	5.08 µm	200 µin	Copper Alloy	-55 C	85 °C	Stacking	0.472 in	12 mm	Black	Polybutylene Terephthalate (PBT)	All	2	1	300 VDC	UL94 V-0	Shrouded - 4 Wall	Solder	Interposer	0.787 in	19.99 mm	Circular	Male Pin
Hirose Electric Co Ltd IT-P-2P-35H	35 mm	Locking Ramp	60 A	Silver	5.08 µm	200 µin	Copper Alloy	-55 C	85 °C	Stacking	0.472 in	12 mm	Black	Polybutylene Terephthalate (PBT)	All	2	1	300 VDC	UL94 V-0	Shrouded - 4 Wall	Solder	Interposer	0.787 in	19.99 mm	Circular	Male Pin
