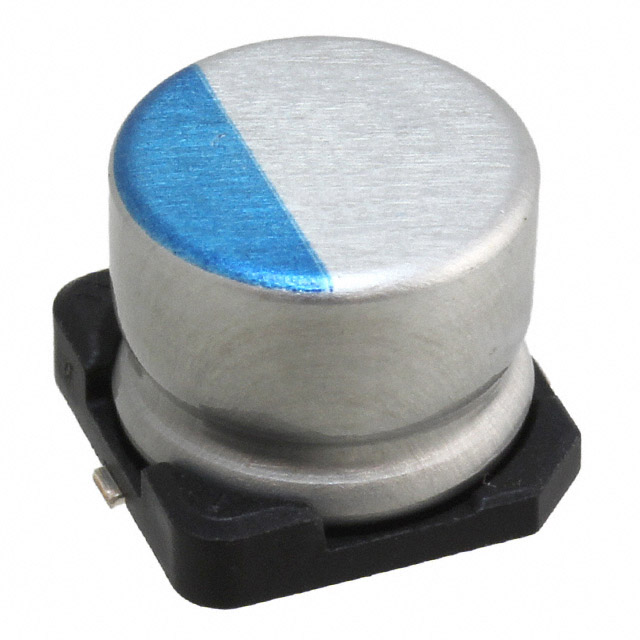

PCS Series
Manufacturer: Nichicon
Beta
⌘K
CAP ALUMINUM POLYMER 390UF 6.3VDC 20%( 8 X 7MM) SMD 0.022 OHM 3.2A 5000H 105°C T/R AUTOMOTIVE AEC-Q200
| Part | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Surface Mount Land Size [x] | Surface Mount Land Size [y] | Lifetime @ Temp. | Type | Mounting Type | Ratings | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | ESR (Equivalent Series Resistance) | Ripple Current @ High Frequency | Capacitance | Operating Temperature [Min] | Operating Temperature [Max] | Tolerance | Applications | Package / Case | Size / Dimension [diameter] | Size / Dimension [diameter] | Voltage - Rated |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Nichicon | 8.3 mm | 8.3 mm | 0.327 in | 0.327 in | 5000 Hrs | Polymer | Surface Mount | AEC-Q200 | 0.276 in | 7 mm | 22 mOhms | 3.2 A | 390 µF | -55 C | 105 ░C | 20 % | General Purpose | Radial Can - SMD | 0.315 in | 8 mm | 6.3 VDC |
