8468 Series

Catalog

IC & COMPONENT SOCKET, 68 CONTACTS, PLCC SOCKET, 2.54 MM, 8400 SERIES, COPPER ALLOY

Part	Current Rating (Amps)	Termination Post Length	Termination Post Length	Material Flammability Rating	Termination	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Housing Material	Contact Material - Mating	Contact Material - Post [custom]	Pitch - Post	Pitch - Post	Features	Pitch - Mating	Pitch - Mating	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Type	Contact Finish - Post	Contact Resistance
3M Electronic Specialty 8468-11B1-RK-TP	1 A	0.132 "	3.35 mm	UL94 V-0	Solder	4	17	68	4.06 µm	160 µin	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	Copper Alloy	0.05 in	1.27 mm	Closed Frame	1.27 mm	0.05 in	Through Hole	-40 C	105 ░C	PLCC	Tin

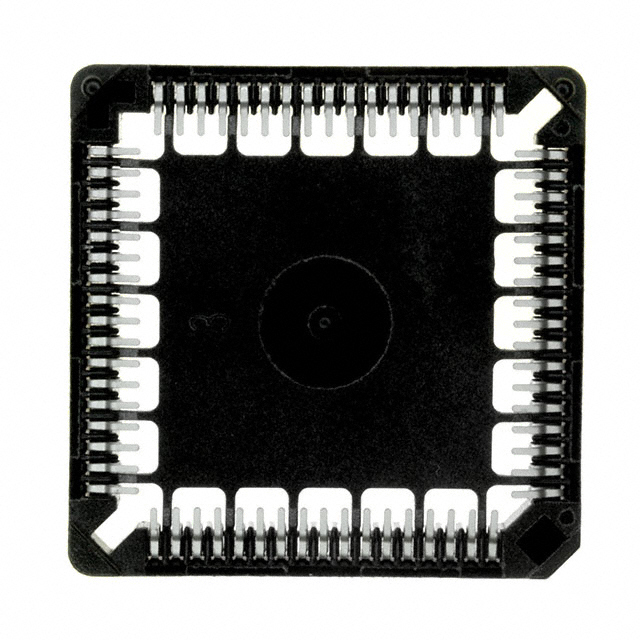

3M Electronic Specialty 8468-21A1-RK-TP	1 A	0.132 "	3.35 mm	UL94 V-0	Solder	4	17	68	4.06 µm	160 µin	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	Copper Alloy	0.05 in	1.27 mm	Closed Frame	1.27 mm	0.05 in	Surface Mount	-40 C	105 ░C	PLCC	Tin
3M Electronic Specialty 8468-21B1-RK-TP	1 A	0.132 "	3.35 mm	UL94 V-0	Solder	4	17	68	4.06 µm	160 µin	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	Copper Alloy	0.05 in	1.27 mm	Closed Frame	1.27 mm	0.05 in	Surface Mount	-40 C	105 ░C	PLCC	Tin

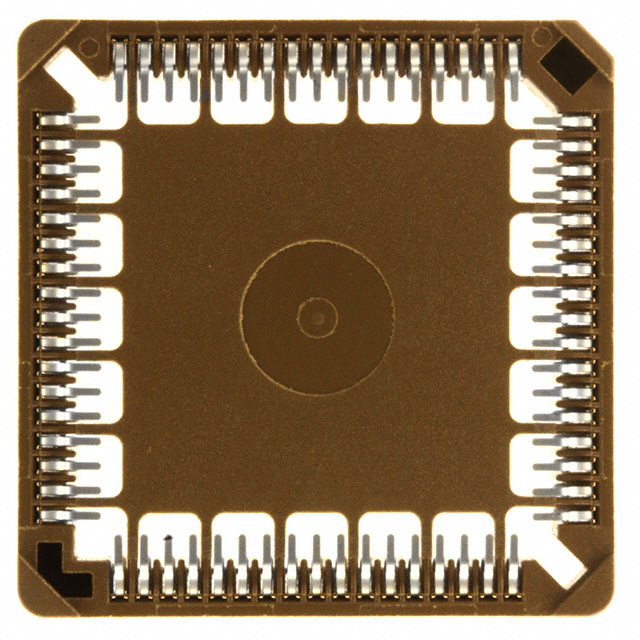

3M Electronic Specialty 8468-21B1-RK-TR	1 A	0.132 "	3.35 mm	UL94 V-0	Solder	4	17	68	4.06 µm	160 µin	Polybutylene Terephthalate (PBT) Glass Filled	Copper Alloy	Copper Alloy	0.05 in	1.27 mm	Closed Frame	1.27 mm	0.05 in	Surface Mount	-40 C	105 ░C	PLCC	Tin	15 mOhm
