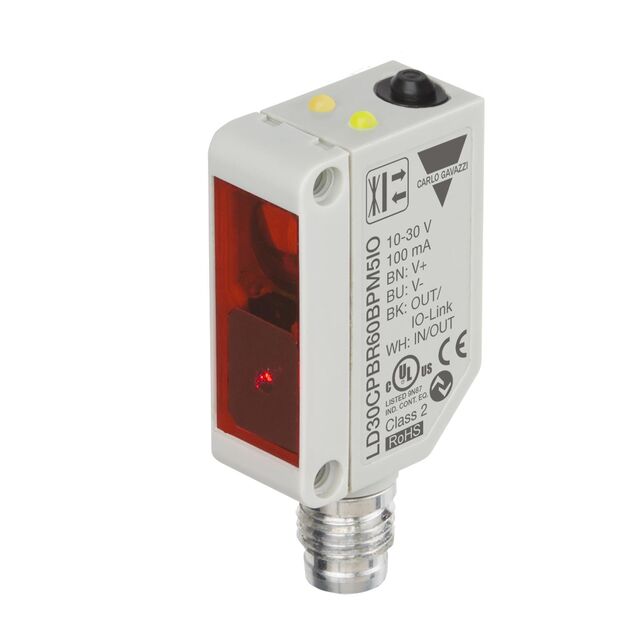

LD30 Series
Manufacturer: Carlo Gavazzi Inc.
Beta
⌘K
PHOTOELECTRIC SENSORS BACKGROUND SUPPRESSION PHOTOELECTRIC SENSOR, IO-LINK, CLASS 1 940NM LASER, PNP/NPN, NO/NC, AISI316L STAINLESS STEEL HOUSING, IP68 IP69K, ECOLAB, CONNECTOR
| Part | Response Time | Adjustment Type | Sensing Method | Output Configuration | Voltage - Supply [Min] | Voltage - Supply [Max] | Light Source | Connection Method | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Sensing Distance | Sensing Distance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Carlo Gavazzi Inc. | 100 ms | Adjustable | Background Suppression | NC/NO NPN/PNP Push-Pull | 10 VDC | 30 VDC | Infrared (940nm) | Connector M8 | 50 °C | -25 °C | IP68 IP69K | 3.28 ft | 1 m |
 Carlo Gavazzi Inc. | 2 ms | Teaching Method | Background Foreground Suppression | NC/NO NPN/PNP Push-Pull | 10 VDC | 30 VDC | Red Laser Diode (650nm) | Connector M8 | 50 °C | -25 °C | IP67 | 23.622 " | 60 cm |
