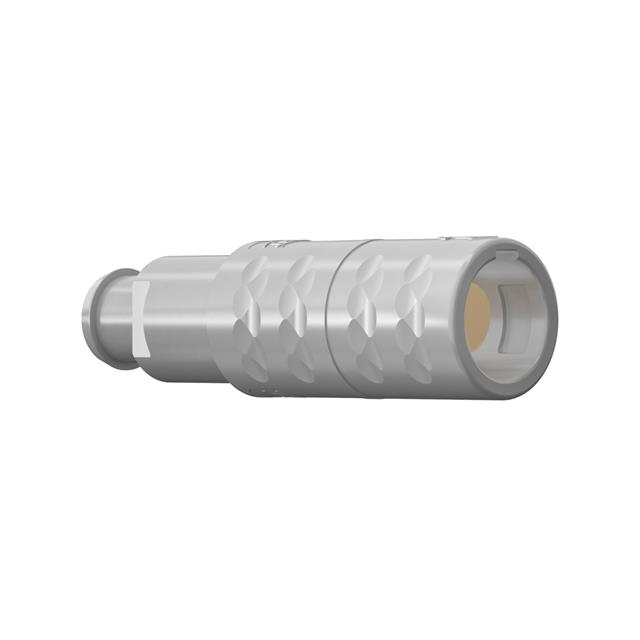

K21MC7-P Series
Manufacturer: ODU
Beta
⌘K
CONN RCPT FMALE 2P GOLD SLDR CUP
| Part | Mounting Type | Backshell Material, Plating | Operating Temperature [Max] | Operating Temperature [Min] | Applications | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Features | Contact Finish - Mating | Primary Material | Shell Material | Fastening Type | Contact Material | Number of Positions | Connector Type | Current Rating (Amps) | Color | Orientation | Ingress Protection | Shielding | Insert Material | Shell Size - Insert | Cable Opening | Cable Opening [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Free Hanging (In-Line) | Polysulfone (PSU) | 120 °C | -50 °C | Industrial Medical Military Testing Equipment & Measurement | 3.9 mm | 0.154 in | 2.7 mm | 0.106 in | Backshell Strain Relief | Gold | Plastic | Polysulfone (PSU) | Detent Lock Push-Pull | Brass | 2 | Receptacle Female Sockets | 14 A | Gray | C | IP50 - Dust Protected | Unshielded | Polyetheretherketone (PEEK) | 1 | |||
Free Hanging (In-Line) | Polysulfone (PSU) | 120 °C | -50 °C | Industrial Medical Military Testing Equipment & Measurement | 0.205 in | 0.157 in | Backshell Strain Relief | Gold | Plastic | Polysulfone (PSU) | Detent Lock Push-Pull | Brass | 8 | Receptacle Female Sockets | 3.85 A | Gray | C | IP50 - Dust Protected | Unshielded | Polyetheretherketone (PEEK) | 1 | 4 mm 5.2 mm | ||||
Free Hanging (In-Line) | Polysulfone (PSU) | 120 °C | -50 °C | Industrial Medical Military Testing Equipment & Measurement | 3.9 mm | 0.154 in | 2.7 mm | 0.106 in | Backshell Strain Relief | Gold | Plastic | Polysulfone (PSU) | Detent Lock Push-Pull | Brass | 6 | Receptacle Female Sockets | 4.55 A | Gray | C | IP50 - Dust Protected | Unshielded | Polyetheretherketone (PEEK) | 1 | |||
Free Hanging (In-Line) | Polysulfone (PSU) | 120 °C | -50 °C | Industrial Medical Military Testing Equipment & Measurement | 0.205 in | 0.157 in | Backshell Strain Relief | Gold | Plastic | Polysulfone (PSU) | Detent Lock Push-Pull | Brass | 2 | Receptacle Female Sockets | 14 A | Gray | C | IP50 - Dust Protected | Unshielded | Polyetheretherketone (PEEK) | 1 | 4 mm 5.2 mm | ||||
Free Hanging (In-Line) | Polysulfone (PSU) | 120 °C | -50 °C | Industrial Medical Military Testing Equipment & Measurement | 0.256 in | 5.3 mm | 0.209 in | Backshell Strain Relief | Gold | Plastic | Polysulfone (PSU) | Detent Lock Push-Pull | Brass | 5 | Receptacle Female Sockets | 5.5 Amps | Gray | C | IP50 - Dust Protected | Unshielded | Polyetheretherketone (PEEK) | 1 | 6.5 mm | |||
Free Hanging (In-Line) | Polysulfone (PSU) | 120 °C | -50 °C | Industrial Medical Military Testing Equipment & Measurement | 0.205 in | 0.157 in | Backshell Strain Relief | Gold | Plastic | Polysulfone (PSU) | Detent Lock Push-Pull | Brass | 9 | Receptacle Female Sockets | 2.6 A | Gray | C | IP50 - Dust Protected | Unshielded | Polyetheretherketone (PEEK) | 1 | 4 mm 5.2 mm | ||||
Free Hanging (In-Line) | Polysulfone (PSU) | 120 °C | -50 °C | Industrial Medical Military Testing Equipment & Measurement | 0.205 in | 0.157 in | Backshell Strain Relief | Gold | Plastic | Polysulfone (PSU) | Detent Lock Push-Pull | Brass | 8 | Receptacle Female Sockets | 3.85 A | Gray | C | IP50 - Dust Protected | Unshielded | Polyetheretherketone (PEEK) | 1 | 4 mm 5.2 mm | ||||
Free Hanging (In-Line) | Polysulfone (PSU) | 120 °C | -50 °C | Industrial Medical Military Testing Equipment & Measurement | 0.205 in | 0.157 in | Backshell Strain Relief | Gold | Plastic | Polysulfone (PSU) | Detent Lock Push-Pull | Brass | 10 | Receptacle Female Sockets | 2.2 A | Gray | C | IP50 - Dust Protected | Unshielded | Polyetheretherketone (PEEK) | 1 | 4 mm 5.2 mm | ||||
Free Hanging (In-Line) | Polysulfone (PSU) | 120 °C | -50 °C | Industrial Medical Military Testing Equipment & Measurement | 3.9 mm | 0.154 in | 2.7 mm | 0.106 in | Backshell Strain Relief | Gold | Plastic | Polysulfone (PSU) | Detent Lock Push-Pull | Brass | 5 | Receptacle Female Sockets | 5.5 Amps | Gray | C | IP50 - Dust Protected | Unshielded | Polyetheretherketone (PEEK) | 1 | |||
Free Hanging (In-Line) | Polysulfone (PSU) | 120 °C | -50 °C | Industrial Medical Military Testing Equipment & Measurement | 0.256 in | 5.3 mm | 0.209 in | Backshell Strain Relief | Gold | Plastic | Polysulfone (PSU) | Detent Lock Push-Pull | Brass | 10 | Receptacle Female Sockets | 2.2 A | Gray | C | IP50 - Dust Protected | Unshielded | Polyetheretherketone (PEEK) | 1 | 6.5 mm |
