74HC04 Series

Catalog

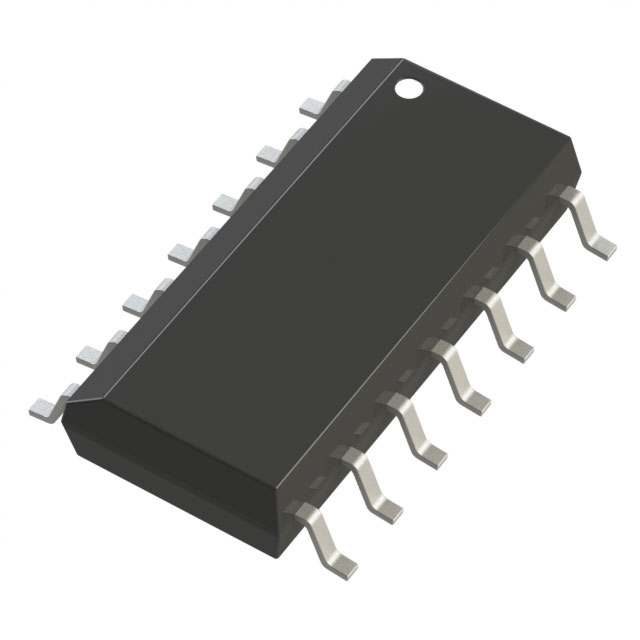

IC INVERTER 6CH 1-INP 14SO

Part	Max Propagation Delay @ V, Max CL	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Current - Quiescent (Max) [Max]	Number of Circuits	Input Logic Level - High [Min]	Input Logic Level - High [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Package / Case	Mounting Type	Number of Inputs [custom]	Logic Type	Supplier Device Package	Input Logic Level - Low [Max]	Input Logic Level - Low [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Package / Case [x]
STMicroelectronics M74HC04RM13TR	16 ns	5.2 mA	5.2 mA	1 çA	6	1.5 V	4.2 V	-55 C	125 °C	0.154 in 3.9 mm	14-SOIC	Surface Mount	1	Inverter	14-SO	1.8 V	0.5 V	6 V	2 V
STMicroelectronics M74HC04YTTR	16 ns	5.2 mA	5.2 mA	1 çA	6	1.9 V	5.8 V	-40 C	125 °C		14-TSSOP	Surface Mount	1	Inverter	14-TSSOP	0.26 V	0 V	6 V	2 V	0.173 " 4.4 mm
