FF900R12 Series

Manufacturer: INFINEON

Catalog

IGBT MODULE 1200V 900A

Part	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Collector Cutoff (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Input	Input Capacitance (Cies) @ Vce	Configuration	Vce(on) (Max) @ Vge, Ic [Max]	Mounting Type	IGBT Type	Current - Collector (Ic) (Max) [Max]	Package / Case	Supplier Device Package	Power - Max [Max]	Vce(on) (Max) @ Vge, Ic
INFINEON FF900R12IP4PBOSA1	1200 V	5 mA	-40 C	150 °C	Standard	54 nF	2 Independent	2.05 V	Chassis Mount	Trench Field Stop	900 A	Module	Module
INFINEON FF900R12IE4BOSA1	1200 V	5 mA	-40 °C	150 °C	Standard	54 nF	Single	2.05 V	Chassis Mount	Trench Field Stop	900 A	Module	Module	5100 W

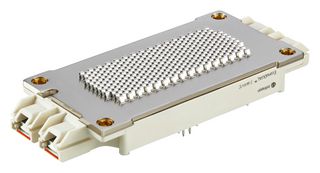

INFINEON FF900R12ME7WB11BPSA1	1200 V		-40 °C	175 °C	Standard	122 nF	Half Bridge Inverter		Chassis Mount	Trench Field Stop	890 A	Module	AG-ECONOD	20 mW	1.8 V

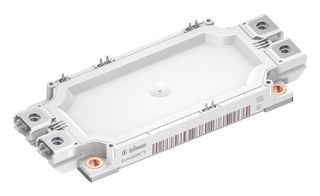

INFINEON FF900R12ME7B11NPSA1	1200 V		-40 °C	175 °C	Standard	122 nF	2 Independent		Chassis Mount	Trench Field Stop	900 A	Module	AG-ECONOD-3	20 mW	1.8 V

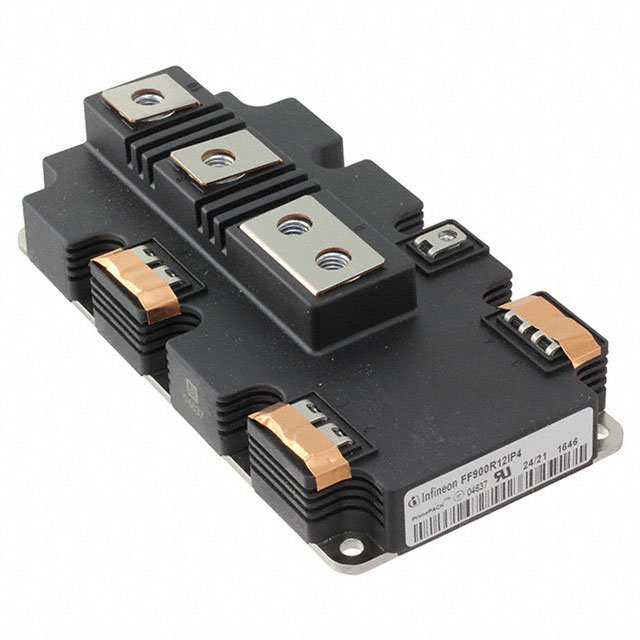

INFINEON FF900R12IP4BOSA2	1200 V	5 mA	-40 °C	150 °C	Standard	54 nF	Single	2.05 V	Chassis Mount	Trench Field Stop	900 A	Module	Module	5100 W
INFINEON FF900R12IE4VPBOSA1	1200 V	5 mA	-40 C	150 °C	Standard	54 nF	Half Bridge		Chassis Mount	Trench Field Stop	900 A	Module	Module	20 mW	2.1 V
INFINEON FF900R12IE4PBOSA1	1200 V	5 mA	-40 C	150 °C	Standard	54 nF	Half Bridge		Chassis Mount	Trench Field Stop	900 A	Module	Module	20 mW	2.1 V
INFINEON FF900R12IP4VBOSA1	1200 V	5 mA	-40 C	150 °C	Standard	54 nF	2 Independent	2.05 V	Chassis Mount	Trench Field Stop	900 A	Module	Module	5100 W
INFINEON FF900R12IE4VBOSA1	1200 V	5 mA	-40 C	150 °C	Standard	54 nF	2 Independent	2.05 V	Chassis Mount	Trench Field Stop	900 A	Module	Module	5100 W
