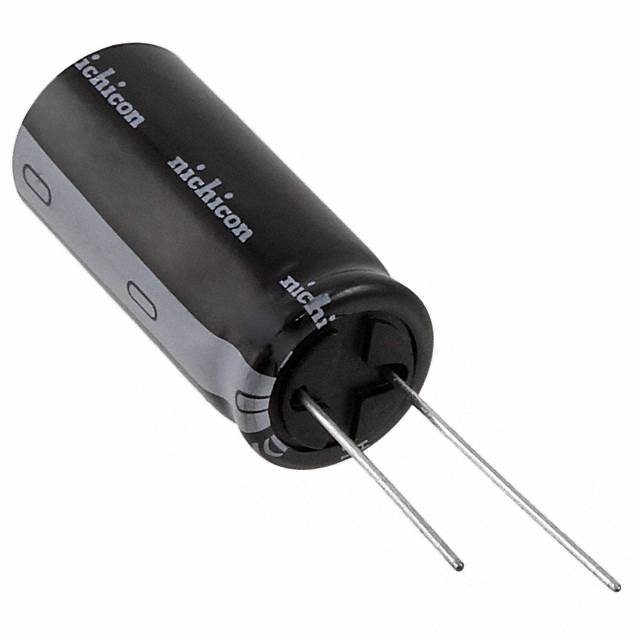

UVY1A Series

Manufacturer: Nichicon

Catalog

CAP ALUM 15000UF 20% 10V RADIAL

Part	Size / Dimension [diameter]	Size / Dimension [diameter]	Lead Spacing	Lead Spacing	Lifetime @ Temp.	Ripple Current @ High Frequency	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Ripple Current @ Low Frequency	Tolerance	Mounting Type	Package / Case	Polarization	Applications	Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max]
Nichicon UVY1A153MHD	0.63 in	16 mm	0.295 in	7.5 mm	2000 Hrs	2.3575 A	10 V	1.476 in	37.5 mm	-55 C	105 ░C	2.05 A	20 %	Through Hole	Can Radial	Polar	General Purpose
Nichicon UVY1A472MHD1TO	0.492 in	12.5 mm	0.197 "	5 mm	2000 Hrs	1.449 A	10 V			-55 C	105 ░C		20 %	Through Hole	Can Radial	Polar	General Purpose	4700 µF	1.063 in	27 mm
Nichicon UVY1A222MPD	0.394 in	10 mm	0.197 "	5 mm	2000 Hrs	810.75 mA	10 V		0.689 in	-55 C	105 ░C	705 mA	20 %	Through Hole	Can Radial	Polar	General Purpose	2200 µF			17.5 mm
Nichicon UVY1A332MHD1TO	0.492 in	12.5 mm	0.197 "	5 mm	2000 Hrs	1.15 A	10 V			-55 C	105 ░C	1 A	20 %	Through Hole	Can Radial	Polar	General Purpose	3.3 mF				0.866 in	22 mm
Nichicon UVY1A471MED1TA	0.248 "	6.3 mm	0.098 in	2.5 mm	1000 Hrs	375 mA	10 V			-55 C	105 ░C	250 mA	20 %	Through Hole	Can Radial	Polar	General Purpose	470 µF		0.492 in				12.5 mm
Nichicon UVY1A471MED	0.248 "	6.3 mm	0.098 in	2.5 mm	1000 Hrs	375 mA	10 V			-55 C	105 ░C	250 mA	20 %	Through Hole	Can Radial	Polar	General Purpose	470 µF		0.492 in				12.5 mm
Nichicon UVY1A471MED1TD	0.248 "	6.3 mm	0.098 in	2.5 mm	1000 Hrs	375 mA	10 V			-55 C	105 ░C	250 mA	20 %	Through Hole	Can Radial	Polar	General Purpose	470 µF		0.492 in				12.5 mm
Nichicon UVY1A333MRD	0.866 "	22 mm	0.394 in	10 mm	2000 Hrs	3.6915 A	10 V			-55 C	105 ░C	3.21 A	20 %	Through Hole	Can Radial	Polar	General Purpose	33000 µF	2.047 in	52 mm
Nichicon UVY1A221MDD1TD	0.197 in	5 mm	0.079 in	2 mm	1000 Hrs	232.5 mA	10 V			-55 C	105 ░C	155 mA	20 %	Through Hole	Can Radial	Polar	General Purpose	220 µF		0.492 in				12.5 mm
Nichicon UVY1A221MDD	0.197 in	5 mm	0.079 in	2 mm	1000 Hrs	232.5 mA	10 V			-55 C	105 ░C	155 mA	20 %	Through Hole	Can Radial	Polar	General Purpose	220 µF		0.492 in				12.5 mm
