V15H1 Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SWITCH SNAP ACTION SPDT 16A 250V

Part	Mechanical Life	Differential Travel	Differential Travel	Release Force	Overtravel [custom]	Overtravel [custom]	Current Rating (Amps)	Voltage Rating - AC	Electrical Life	Pretravel	Pretravel	Actuator Type	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Switch Function	Operating Force	Mounting Type	Operating Position	Operating Position	Voltage Rating - DC	Current Rating (Amps)	Operating Position [x]	Operating Position [x]	Pretravel
Honeywell Sensing and Productivity Solutions V15H16-EZ100A01-K	5000000 Cycles	0.016 in	0.4 mm	25 gf	0.03 "	0.76 mm	16 A	250 V	50000 Cycles	0.063 in	1.6 mm	Lever Straight	Quick Connect	150 °C	-25 °C	SPDT	On-Mom	100 gf	Chassis Mount	15.3 mm	0.602 in

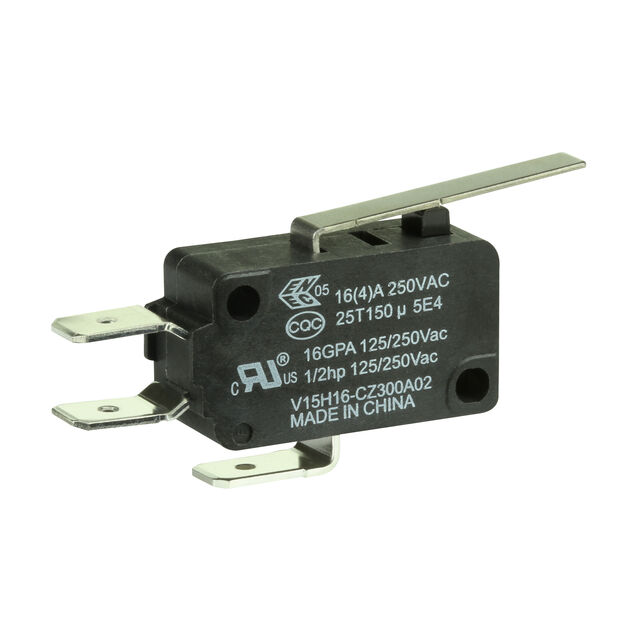

Honeywell Sensing and Productivity Solutions V15H16-CZ300A02	1000000 Cycles						16 A	125 V				Lever Straight	Quick Connect - 0.250" (6.3mm)	150 °C	-25 °C	SPDT	On-Mom		Chassis Mount
Honeywell Sensing and Productivity Solutions V15H16-CZ400B02-K	5000000 Cycles	0.065 in	1.7 mm	30 gf	0.087 "	2.2 mm	16 A	250 V	50000 Cycles	0.236 "	6 mm	Lever Straight	Quick Connect - 0.250" (6.3mm)	150 °C	-25 °C	SPDT	On-Mom	125 gf	Chassis Mount	15.3 mm	0.602 in
Honeywell Sensing and Productivity Solutions V15H10-E1Z200B01-K	1000000 Cycles							125 V				Lever Straight	Quick Connect	150 °C	-25 °C	SPDT	On-Mom		Chassis Mount			30 V	10A 1A
Honeywell Sensing and Productivity Solutions V15H16-EP400-K	1000000 Cycles	0.016 in	0.4 mm		0.03 "	0.76 mm	16 A	250 V	50000 Cycles	0.063 in	1.6 mm	Round (Pin Plunger)	Quick Connect	150 °C	-25 °C	SPST-NO	Off-Mom	400 gf	Chassis Mount	14.7 mm	0.579 in

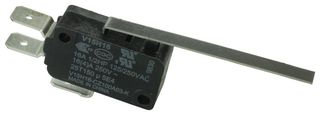

Honeywell Sensing and Productivity Solutions V15H16-CZ100A03-K	5000000 Cycles	0.094 in	2.4 mm		0.102 "	2.6 mm	16 A	250 V	50000 Cycles	0.252 in	6.4 mm	Lever Straight	Quick Connect - 0.250" (6.3mm)	150 °C	-25 °C	SPDT	On-Mom	30 gf	Chassis Mount	15.3 mm	0.602 in

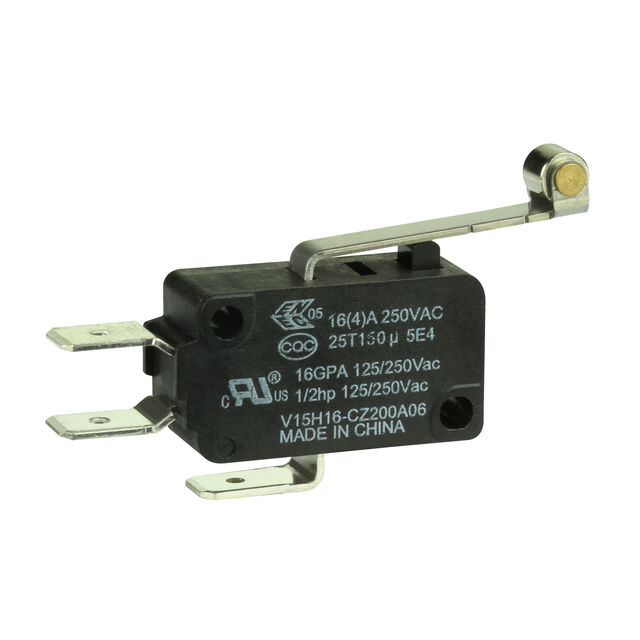

Honeywell Sensing and Productivity Solutions V15H16-CZ200A06	1000000 Cycles						16 A	125 V				Lever Roller	Quick Connect - 0.250" (6.3mm)	150 °C	-25 °C	SPDT	On-Mom		Chassis Mount

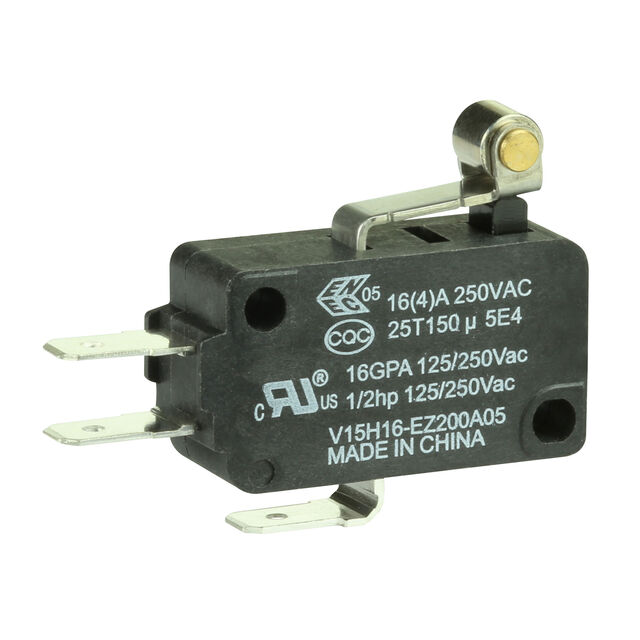

Honeywell Sensing and Productivity Solutions V15H16-EZ200A05	1000000 Cycles	0.031 in	0.8 mm		0.015 "	0.4 mm	16 A	125 V		0.06 in	1.5 mm	Lever Roller	Quick Connect	150 °C	-25 °C	SPDT	On-Mom	240 gf	Chassis Mount	20.6 mm	0.812 in
Honeywell Sensing and Productivity Solutions V15H16-CZ200B04-K	5000000 Cycles	0.062 in	1.6 mm	15 gf	0.098 "	2.5 mm	16 A	250 V	50000 Cycles		0.219 in	Lever Simulated Roller	Quick Connect - 0.250" (6.3mm)	150 °C	-25 °C	SPDT	On-Mom	70 gf	Chassis Mount					18.5 mm	0.73 in	5.6 mm

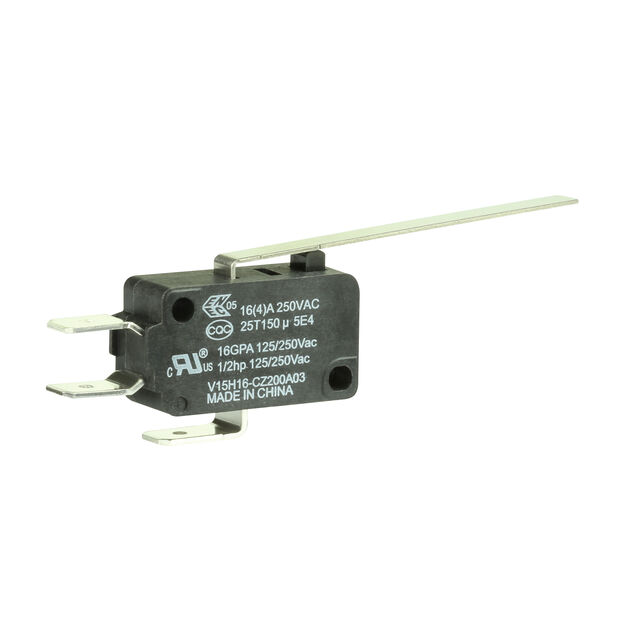

Honeywell Sensing and Productivity Solutions V15H16-CZ200A03	1000000 Cycles						16 A	125 V				Lever Straight	Quick Connect - 0.250" (6.3mm)	150 °C	-25 °C	SPDT	On-Mom		Chassis Mount
