185 Series

Catalog

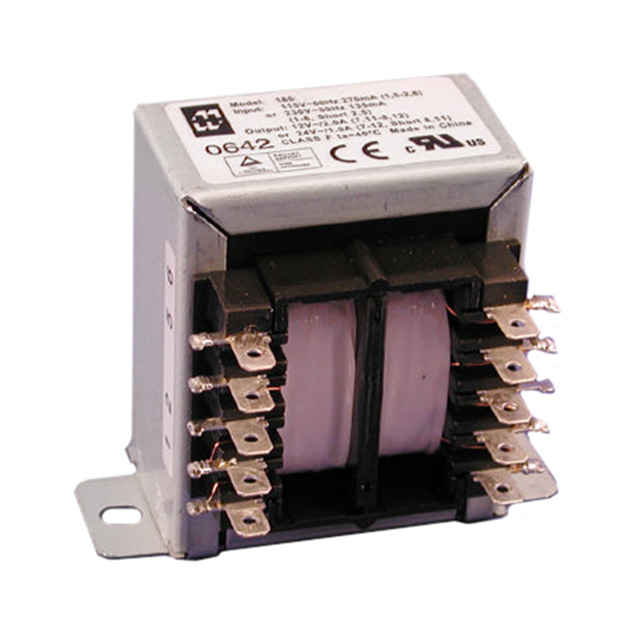

POWER TRANSFORMER 4000VRMS 25VA 10 TERMINAL QUICK CONNECT/SOLDER LUG FLANGE MOUNT

Part	Type	Power - Max [Max]	Height - Seated (Max) [Max] [z]	Center Tap	Voltage - Secondary (Full Load) [custom]	Voltage - Secondary (Full Load) [custom]	Voltage - Isolation	Secondary Winding(s)	Voltage - Primary	Weight [custom]	Weight [custom]	Current - Output (Max) [Max] [custom]	Current - Output (Max) [Max] [custom]	Size / Dimension [y]	Size / Dimension [x]	Primary Winding(s)	Mounting Type	Termination Style	Weight	Weight	Current - Output (Max) [custom]	Current - Output (Max) [custom]
Hammond Manufacturing 185C28	Laminated Core	25 VA	58.67 mm		14 V	28 V	4000 VAC	Dual	115 V 230 V	1.3 lbs	589.7 g	900 mA	1.86 A	56.39 mm	71.37 mm	Dual	Chassis Mount	Quick Connect Solder
Hammond Manufacturing 185D36	Laminated Core	43 VA	68.07 mm		18 V	36 V	4000 VAC	Dual	115 V 230 V					56.39 mm	79.25 mm	Dual	Chassis Mount	Quick Connect Solder	1.8 lbs	816.5 g	2.4 A	1.2 A
