RXL035 Series
Manufacturer: Rohm Semiconductor
Beta
⌘K
NCH 30V 3..5A SMALL SIGNAL MOSFET
| Part | Rds On (Max) @ Id, Vgs | Vgs (Max) | Vgs(th) (Max) @ Id | Power Dissipation (Max) | Drive Voltage (Max Rds On, Min Rds On) [Max] | Drive Voltage (Max Rds On, Min Rds On) [Min] | Operating Temperature | Drain to Source Voltage (Vdss) | Package / Case | Technology | Current - Continuous Drain (Id) @ 25°C | Gate Charge (Qg) (Max) @ Vgs | FET Type | Input Capacitance (Ciss) (Max) @ Vds [Max] | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

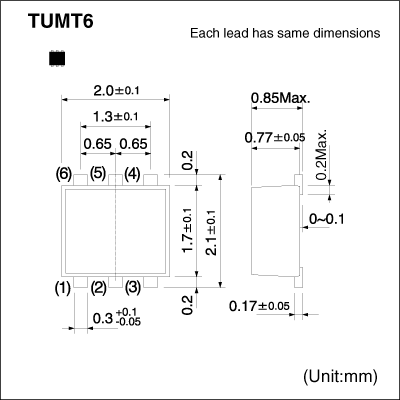

 Rohm Semiconductor | 50 mOhm | 20 V | 2.5 V | 910 mW | 4 V | 10 V | 150 °C | 30 V | 6-SMD Flat Leads | MOSFET (Metal Oxide) | 3.5 A | 3.3 nC | N-Channel | 180 pF | Surface Mount | TUMT6 |
