842-034 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 34POS 0.100

...

Part	Termination Rows [custom]	Material - Insulation	Contact Finish Thickness	Contact Finish Thickness	Pitch	Pitch	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Gender	Contact Material	Card Type	Termination	Read Out	Number of Positions/Bay/Row [custom]	Number of Positions [custom]	Number of Rows [custom]	Mounting Type	Features	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Contact Finish	Color	Card Thickness [Max]	Card Thickness [Min]	Termination Rows	Number of Rows	Number of Positions/Bay/Row

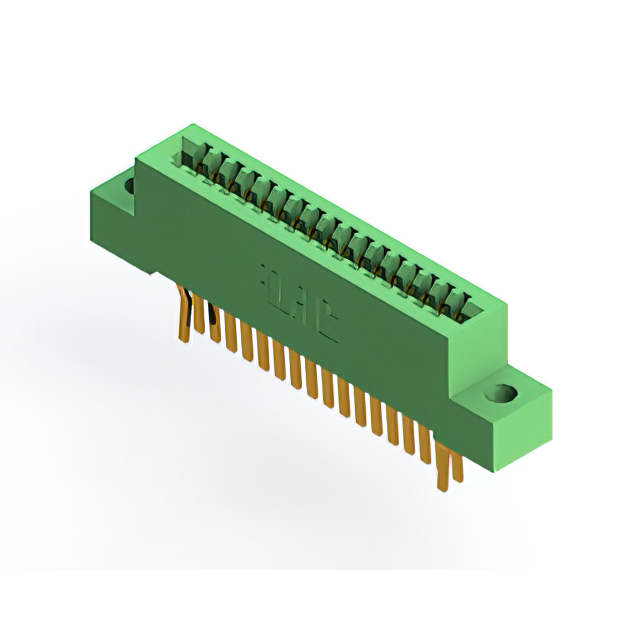

EDAC Inc. 842-034-560-204	2	Diallyl Phthalate (DAP)	0.25 Ám	10 Áin	0.1 "	2.54 mm	125 °C	-40 C	Cantilever	Female	Copper Alloy	Non Specified - Dual Edge	Solder	Dual	17	34	2	Board Edge Straddle Mount	Card Extender	Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Gold	Green	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 842-034-542-203	2	Diallyl Phthalate (DAP)	0.25 Ám	10 Áin	0.1 "	2.54 mm	125 °C	-40 C	Cantilever	Female	Copper Alloy	Non Specified - Dual Edge	Wire Wrap	Dual	17	34	2	Through Hole		Floating Bobbin Flush Mount	0.116 "	2.95 mm	Gold	Green	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 842-034-541-208	2	Diallyl Phthalate (DAP)	0.25 Ám	10 Áin	0.1 "	2.54 mm	125 °C	-40 C	Cantilever	Female	Copper Alloy	Non Specified - Dual Edge	Wire Wrap	Dual	17	34	2	Through Hole		4-40 Flush Mount Threaded Insert Top Opening			Gold	Green	0.07 in 1.78 mm	0.054 in 1.37 mm

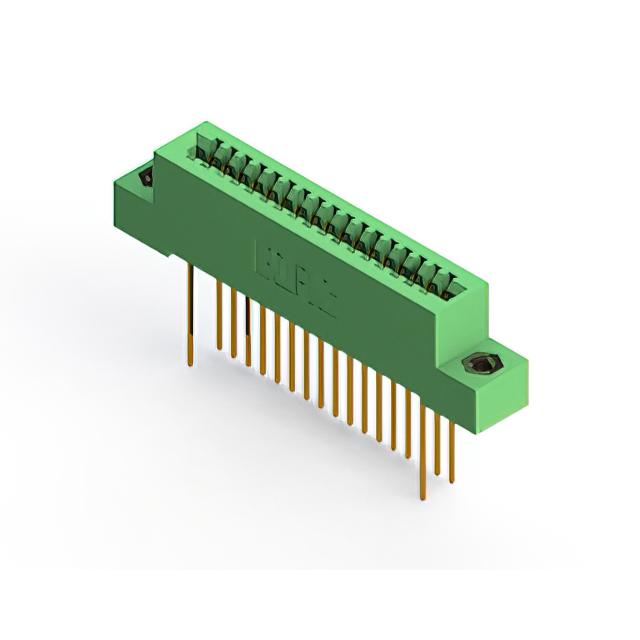

EDAC Inc. 842-034-542-208	2	Diallyl Phthalate (DAP)	0.25 Ám	10 Áin	0.1 "	2.54 mm	125 °C	-40 C	Cantilever	Female	Copper Alloy	Non Specified - Dual Edge	Wire Wrap	Dual	17	34	2	Through Hole		4-40 Flush Mount Threaded Insert Top Opening			Gold	Green	0.07 in 1.78 mm	0.054 in 1.37 mm

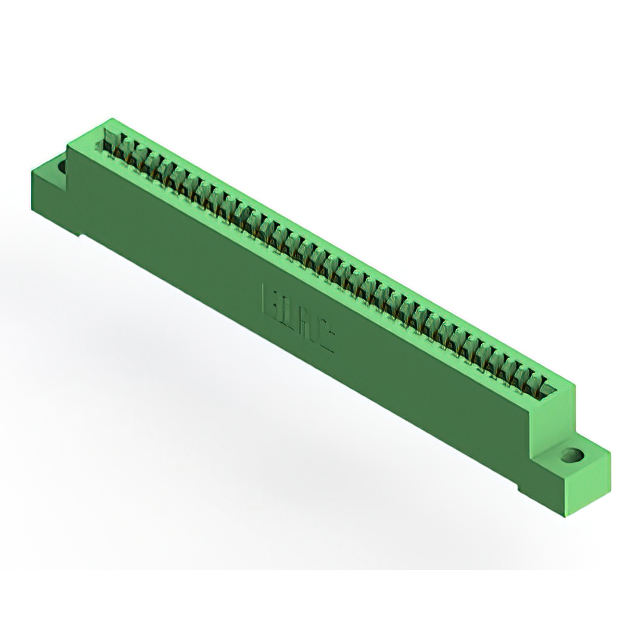

EDAC Inc. 842-034-524-104		Diallyl Phthalate (DAP)	0.25 Ám	10 Áin	0.1 "	2.54 mm	125 °C	-40 C	Cantilever	Female	Copper Alloy	Non Specified - Single Edge	Solder	Single		34		Through Hole		Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Gold	Green	0.07 in 1.78 mm	0.054 in 1.37 mm	1	1	34

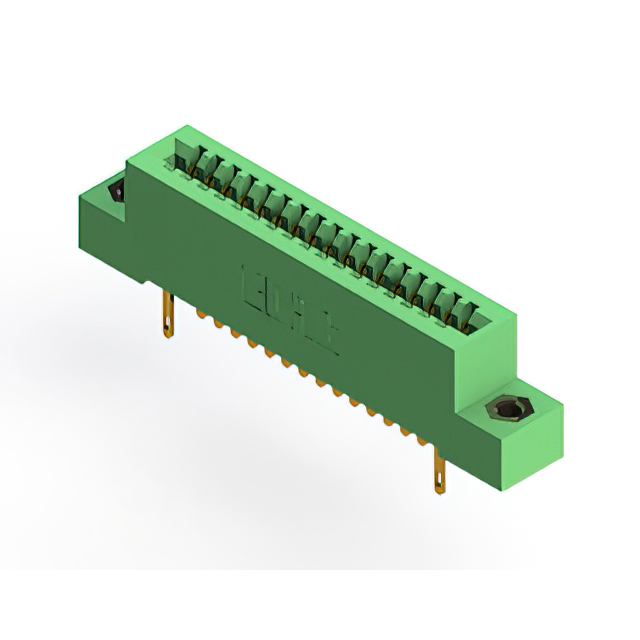

EDAC Inc. 842-034-500-207	2	Diallyl Phthalate (DAP)	0.25 Ám	10 Áin	0.1 "	2.54 mm	125 °C	-40 C	Cantilever	Female	Copper Alloy	Non Specified - Dual Edge	Solder Eyelet(s)	Dual	17	34	2	Through Hole		Flush Mount M3 Threaded Insert Top Opening			Gold	Green	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 842-034-542-202	2	Diallyl Phthalate (DAP)	0.25 Ám	10 Áin	0.1 "	2.54 mm	125 °C	-40 C	Cantilever	Female	Copper Alloy	Non Specified - Dual Edge	Wire Wrap	Dual	17	34	2	Through Hole		Flush Mount Top Opening Unthreaded	0.128 "	3.25 mm	Gold	Green	0.07 in 1.78 mm	0.054 in 1.37 mm

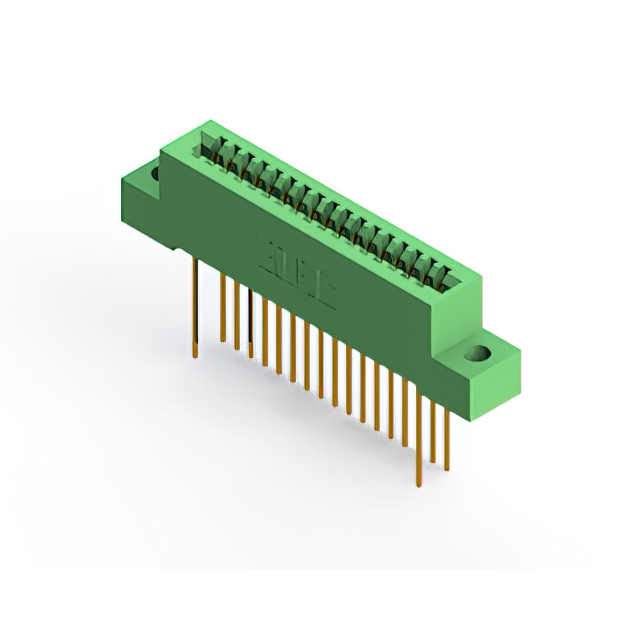

EDAC Inc. 842-034-541-204	2	Diallyl Phthalate (DAP)	0.25 Ám	10 Áin	0.1 "	2.54 mm	125 °C	-40 C	Cantilever	Female	Copper Alloy	Non Specified - Dual Edge	Wire Wrap	Dual	17	34	2	Through Hole		Flush Mount Top Opening Unthreaded	0.156 "	3.96 mm	Gold	Green	0.07 in 1.78 mm	0.054 in 1.37 mm

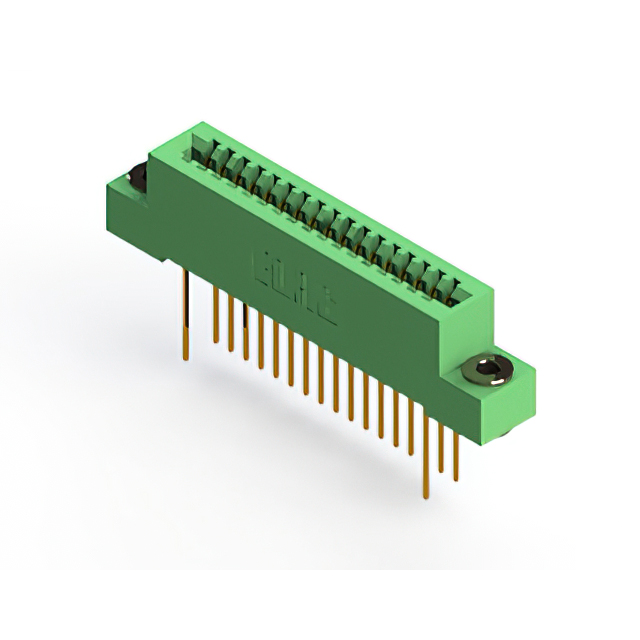

EDAC Inc. 842-034-540-203	2	Diallyl Phthalate (DAP)	0.25 Ám	10 Áin	0.1 "	2.54 mm	125 °C	-40 C	Cantilever	Female	Copper Alloy	Non Specified - Dual Edge	Wire Wrap	Dual	17	34	2	Through Hole		Floating Bobbin Flush Mount	0.116 "	2.95 mm	Gold	Green	0.07 in 1.78 mm	0.054 in 1.37 mm

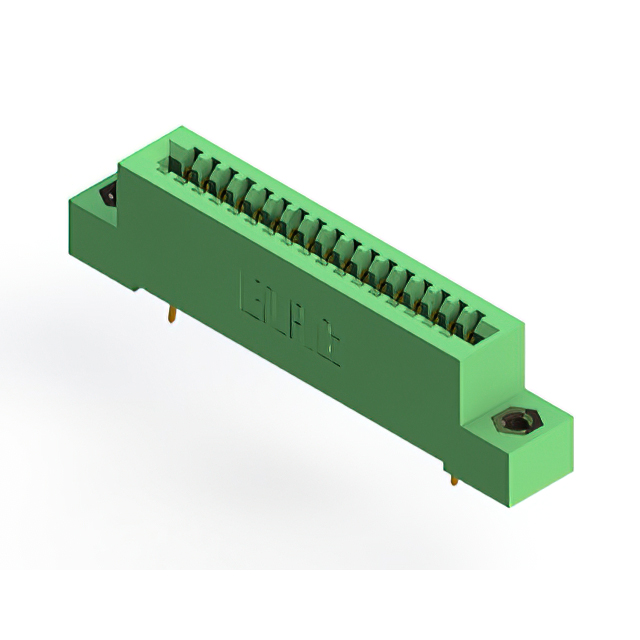

EDAC Inc. 842-034-556-208	2	Diallyl Phthalate (DAP)	0.25 Ám	10 Áin	0.1 "	2.54 mm	125 °C	-40 C	Cantilever	Female	Copper Alloy	Non Specified - Dual Edge	Solder	Dual	17	34	2	Board Edge Straddle Mount	Card Extender	4-40 Flush Mount Threaded Insert Top Opening			Gold	Green	0.07 in 1.78 mm	0.054 in 1.37 mm
