JR25WR Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K

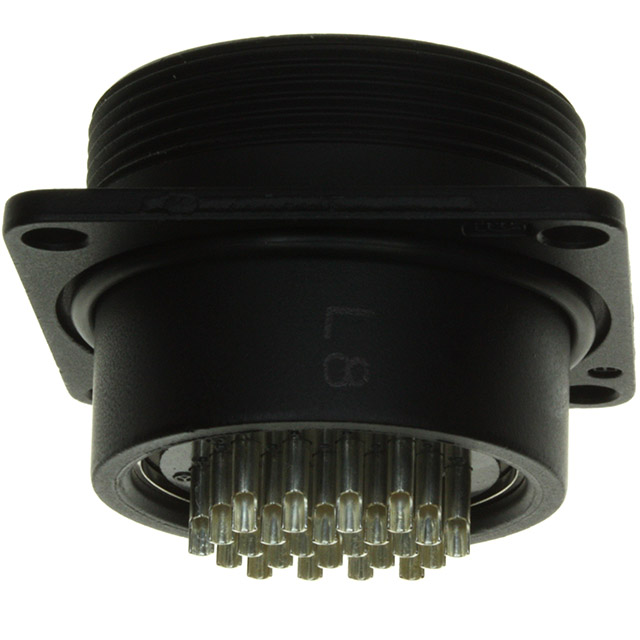

CONN RCPT FMALE 24P SOLDER CUP
| Part | Insert Material | Contact Material | Applications | Shell Finish | Connector Type | Orientation | Voltage Rating | Shell Material | Primary Material | Shell Size - Insert | Mounting Feature | Current Rating (Amps) | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Contact Finish - Mating | Fastening Type | Cable Opening | Cable Opening | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Color | Number of Positions | Ingress Protection | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Hirose Electric Co Ltd | Phenol Formaldehyde (PF) | Brass | Automotive Industrial Telecommunications | Black Chromium | Receptacle Female Sockets | Keyed | 100 VAC 140 VDC | Aluminum Alloy | Metal | 25 | Flange | 5 A | 85 °C | -25 °C | Panel Mount | Silver | Threaded | 1.098 in | 27.9 mm | 78.7 µin | 2 µm | Black | 24 | IP67/IP68 | UL94 V-0 |
Hirose Electric Co Ltd | |||||||||||||||||||||||||
Hirose Electric Co Ltd | |||||||||||||||||||||||||
Hirose Electric Co Ltd | Phenol Formaldehyde (PF) | Copper Alloy | Automotive Industrial Telecommunications | Black Chromium | Receptacle Female Sockets | Keyed | 100 VAC 140 VDC | Aluminum Alloy | Metal | 25 | Flange | 10 A | 85 °C | -25 °C | Panel Mount | Silver | Threaded | 1.098 in | 27.9 mm | 78.7 µin | 2 µm | Black | 16 | IP67/IP68 | UL94 V-0 |
