16-2820 Series
Manufacturer: Aries Electronics
Beta
⌘K

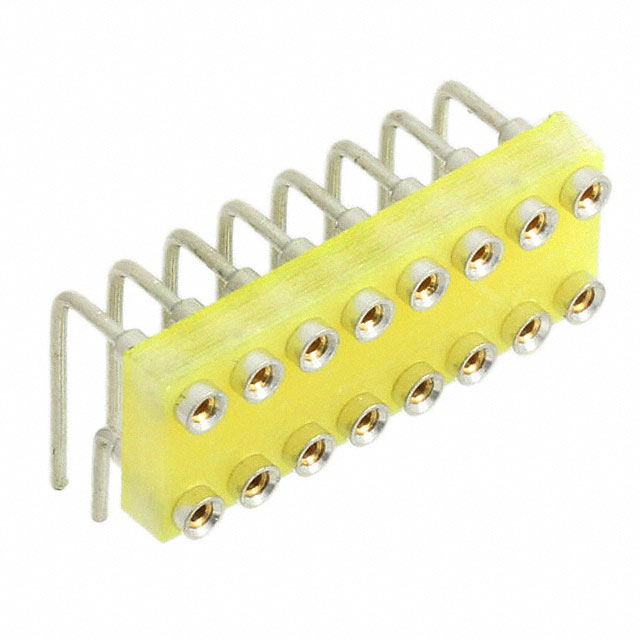

CONN IC DIP SOCKET 16POS GOLD
| Part | Material Flammability Rating | Current Rating (Amps) | Termination Post Length | Termination Post Length | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) | Number of Positions or Pins (Grid) [custom] | Contact Finish - Mating | Contact Material - Post [custom] | Housing Material | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Type | Type | Contact Material - Mating | Pitch - Mating | Pitch - Mating | Termination | Features | Pitch - Post | Pitch - Post | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Aries Electronics | UL94 V-0 | 3 A | 3.56 mm | 0.14 in | -55 C | 105 ░C | 200 µin | 5.08 µm | 2 | 16 | 8 | Gold | Brass | Polyamide (PA46) Nylon 4/6 Glass Filled | 0.76 Ám | 30 Áin | DIP | 5.08 mm | Beryllium Copper | 0.1 " | 2.54 mm | Solder | Closed Frame | 0.1 in | 2.54 mm | Tin |
