CE-OMNI Series

Catalog

HEATSINK CER TO-220 TO-247

Part	Package Cooled	Width [x]	Width [x]	Length [x]	Length [x]	Thermal Resistance @ Natural	Material	Type	Fin Height [z]	Fin Height [z]	Thermal Resistance @ Forced Air Flow	Shape [custom]	Shape [custom]	Attachment Method

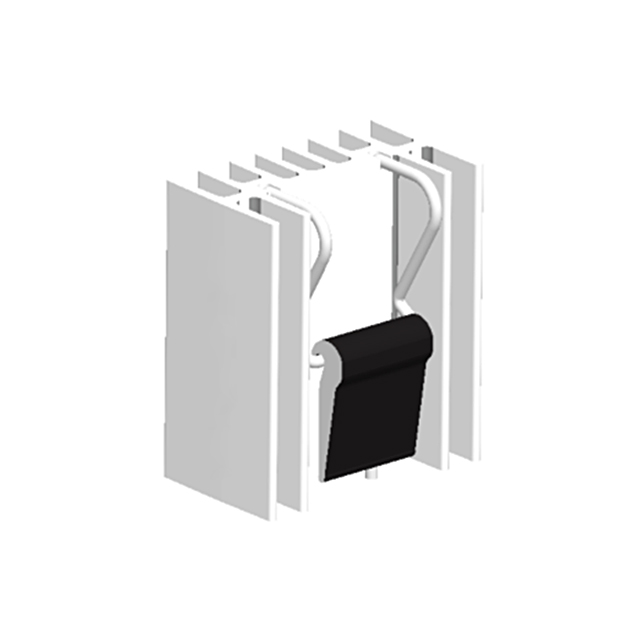

Wakefield Thermal Solutions CE-OMNI-38	TO-220 TO-247	1.339 in	34 mm	0.803 in	20.4 mm	7 °C/W	Ceramic	Board Level Vertical	38.4 mm	1.512 in	3.8 °C/W	Rectangular	Fins	Solderable Feet
Wakefield Thermal Solutions CE-OMNI-38	TO-220 TO-247	1.339 in	34 mm	0.803 in	20.4 mm	7 °C/W	Ceramic	Board Level Vertical	38.4 mm	1.512 in	3.8 °C/W	Rectangular	Fins	Solderable Feet
