MLX90371 Series

Catalog

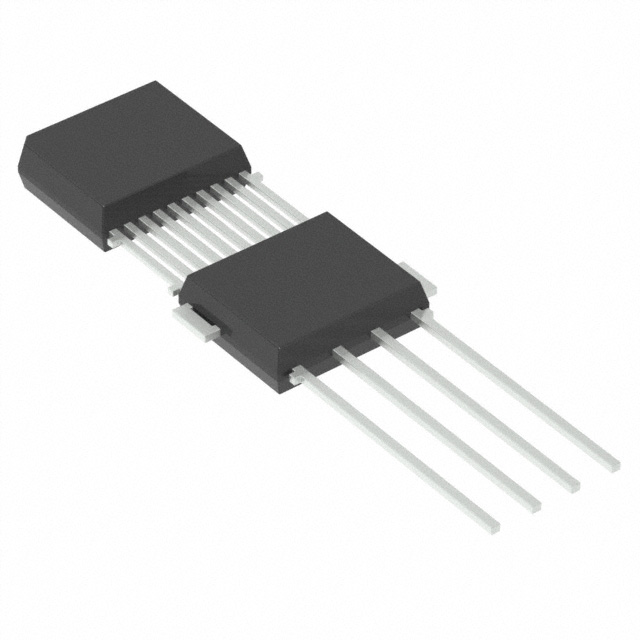

SENSOR ROTARY 360DEG PC PIN

Part	Output Signal	Linearity	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Output	Package / Case	Technology	For Measuring	Termination Style	Rotation Angle - Electrical, Mechanical [Max]	Actuator Type	Package / Case [y]	Package / Case [y]	Package / Case	Package / Case
Melexis Technologies NV MLX90371GVS-BCC-100-RE	Programmable	1 °	5.5 V	4.5 V	4-DMP	160 °C	-40 C	Through Hole	Analog Voltage PWM	4-SIP Module	Hall Effect	Linear Rotary Position	PC Pin	360 °	External Magnet Not Included
Melexis Technologies NV MLX90371GVS-BCC-300-RX	Programmable	1 °	5.5 V	4.5 V	4-DMP	160 °C	-40 C	Through Hole	Analog Voltage PWM	4-SIP Module	Hall Effect	Linear Rotary Position	PC Pin	360 °	External Magnet Not Included
Melexis Technologies NV MLX90371GGO-BCC-100-SP	Programmable	1 °	5.5 V	4.5 V	16-TSSOP	160 °C	-40 C	Surface Mount	Analog Voltage PWM	16-TSSOP	Hall Effect	Linear Rotary Position	Gull Wing	360 °	External Magnet Not Included	4.4 mm	0.173 in
Melexis Technologies NV MLX90371GVS-BCC-100-RX	Programmable	1 °	5.5 V	4.5 V	4-DMP	160 °C	-40 C	Through Hole	Analog Voltage PWM	4-SIP Module	Hall Effect	Linear Rotary Position	PC Pin	360 °	External Magnet Not Included
Melexis Technologies NV MLX90371GGO-BCC-300-RE	Programmable	1 °	5.5 V	4.5 V	16-TSSOP	160 °C	-40 C	Surface Mount	Analog Voltage PWM	16-TSSOP	Hall Effect	Linear Rotary Position	Gull Wing	360 °	External Magnet Not Included	4.4 mm	0.173 in
Melexis Technologies NV MLX90371GDC-BCC-100-SP	Programmable	1 °	5.5 V	4.5 V	8-SOIC	160 °C	-40 C	Surface Mount	Analog Voltage PWM	8-SOIC	Hall Effect	Linear Rotary Position	Gull Wing	360 °	External Magnet Not Included			0.154 in	3.9 mm
Melexis Technologies NV MLX90371GVS-BCC-100-SP	Programmable	1 °	5.5 V	4.5 V	4-DMP	160 °C	-40 C	Through Hole	Analog Voltage PWM	4-SIP Module	Hall Effect	Linear Rotary Position	PC Pin	360 °	External Magnet Not Included
Melexis Technologies NV MLX90371GGO-BCC-100-RE	Programmable	1 °	5.5 V	4.5 V	16-TSSOP	160 °C	-40 C	Surface Mount	Analog Voltage PWM	16-TSSOP	Hall Effect	Linear Rotary Position	Gull Wing	360 °	External Magnet Not Included	4.4 mm	0.173 in
Melexis Technologies NV MLX90371GGO-BCC-300-SP	Programmable	1 °	5.5 V	4.5 V	16-TSSOP	160 °C	-40 C	Surface Mount	Analog Voltage PWM	16-TSSOP	Hall Effect	Linear Rotary Position	Gull Wing	360 °	External Magnet Not Included	4.4 mm	0.173 in
Melexis Technologies NV MLX90371GDC-BCC-100-RE	Programmable	1 °	5.5 V	4.5 V	8-SOIC	160 °C	-40 C	Surface Mount	Analog Voltage PWM	8-SOIC	Hall Effect	Linear Rotary Position	Gull Wing	360 °	External Magnet Not Included			0.154 in	3.9 mm
