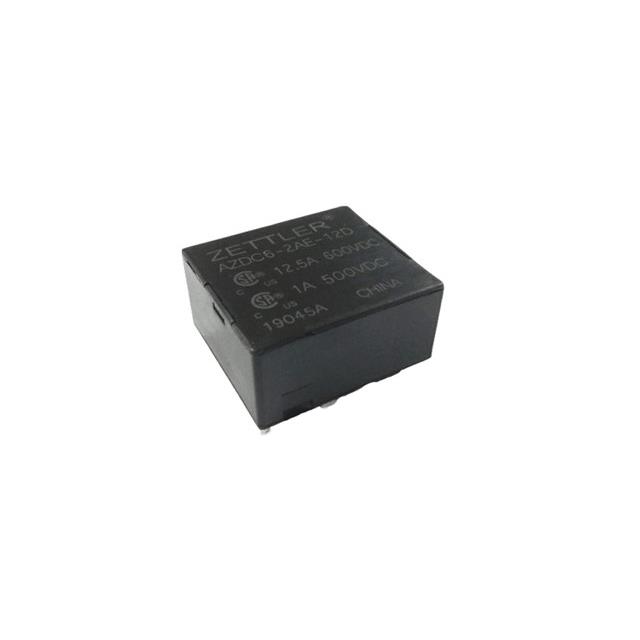

AZDC6-2A Series
Manufacturer: American Zettler
Beta
⌘K
RELAY GEN PURPOSE DPST 12.5A 5V
| Part | Coil Resistance | Operate Time | Coil Voltage | Must Operate Voltage | Contact Rating (Current) | Relay Type | Approval Agency | Mounting Type | Seal Rating | Coil Current | Termination Style | Contact Form | Must Release Voltage | Release Time | Switching Voltage [Max] | Contact Material | Load - Max Switching [Max] | Coil Insulation | Coil Type | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 American Zettler | 18 Ohms | 30 ms | 5 VDC | 3.75 VDC | 12.5 A | General Purpose | CSA | Through Hole | Sealed - Fully | 277.8 mA | PC Pin | DPST-NO (2 Form A) | 0.25 VDC | 10 ms | 600 VDC | Silver Tin Oxide (AgSnO) | 7500 W | Class F | Non Latching | 90 °C | -40 C |
