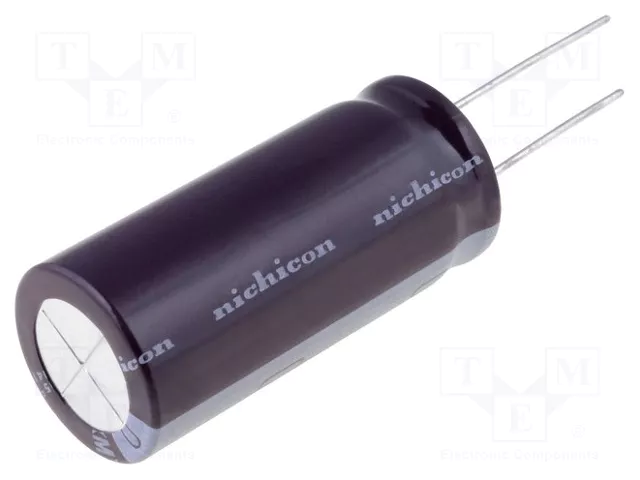

upw Series

Manufacturer: Nichicon

Catalog

ELECTROLYTIC CAPACITOR, MINIATURE, 2200 ΜF, 10 V, ± 20%, PC PIN, 5000 HOURS @ 105°C, POLAR

Part	Impedance	Ratings	Ripple Current @ High Frequency	Voltage - Rated	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Polarization	Tolerance	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Lead Spacing	Lead Spacing	Applications	Lifetime @ Temp.	Package / Case	Ripple Current @ Low Frequency	Size / Dimension [diameter]	Size / Dimension [diameter]	Capacitance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Nichicon UPW1A222MPD6	35 mOhms	AEC-Q200	1.815 A	10 V	1.24 in	31.5 mm	Polar	20 %	Through Hole	-55 C	105 ░C	0.197 "	5 mm	General Purpose	5000 Hrs	Can Radial	1.543 A	0.394 in	10 mm	2200 µF
Nichicon UPW1A272MHD	30 mOhms	AEC-Q200	1.945 A	10 V	0.984 in	25 mm	Polar	20 %	Through Hole	-55 C	105 ░C	0.197 "	5 mm	General Purpose	7000 Hrs	Can Radial	1.653 A	0.492 in	12.5 mm	2700 µF
Nichicon UPW1A332MHD	30 mOhms	AEC-Q200	1.95 A	10 V	0.984 in	25 mm	Polar	20 %	Through Hole	-55 C	105 ░C	0.197 "	5 mm	General Purpose	7000 Hrs	Can Radial	1.658 A	0.492 in	12.5 mm	3.3 mF
Nichicon UPW1E270MDD	1.3 Ohms			25 VDC			Polar	20 %	Through Hole	-55 C	105 ░C	0.059 in	1.5 mm	General Purpose	2000 Hrs	Can Radial	36 mA	0.157 in	4 mm	27 µF	11 mm	0.433 in
Nichicon UPW1C390MDD	1.3 Ohms			16 V			Polar	20 %	Through Hole	-55 C	105 ░C	0.059 in	1.5 mm	General Purpose	2000 Hrs	Can Radial	36 mA	0.157 in	4 mm	39 µF	11 mm	0.433 in
