UCA Series

Manufacturer: Nichicon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED 200VOLTS 68UF 16X20 20%

Part	Tolerance	Capacitance	Lead Spacing	Lead Spacing	Voltage - Rated	Polarization	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Lifetime @ Temp.	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Mounting Type	Package / Case	Applications	Ripple Current @ High Frequency	Ripple Current @ Low Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]

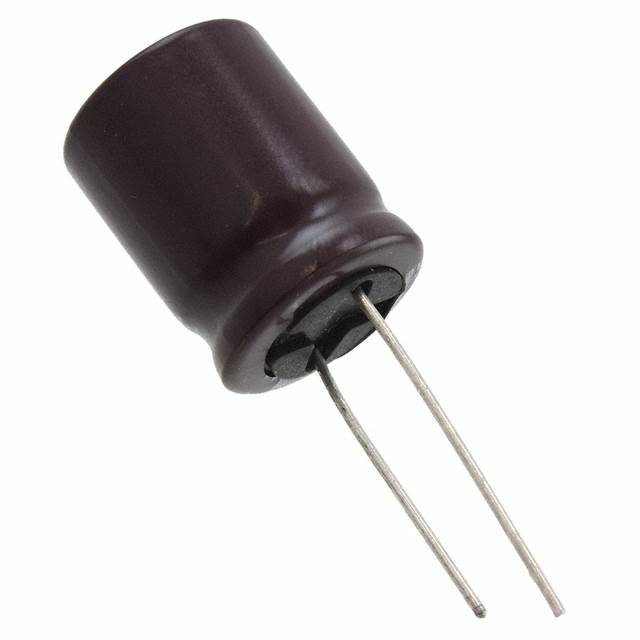

Nichicon UCA2D680MHD6	20 %	68 µF	0.295 in	7.5 mm	200 VDC	Polar	0.63 in	16 mm	105 ░C	-25 °C	12000 Hrs	0.846 "	21.5 mm	Through Hole	Can Radial	General Purpose	970 mA	485 mA
Nichicon UCA2V470MHD1TN	20 %	47 µF	0.295 in	7.5 mm	350 V	Polar	0.63 in	16 mm	105 ░C	-25 °C	12000 Hrs			Through Hole	Can Radial	General Purpose	700 mA	350 mA	26.5 mm	1.043 in

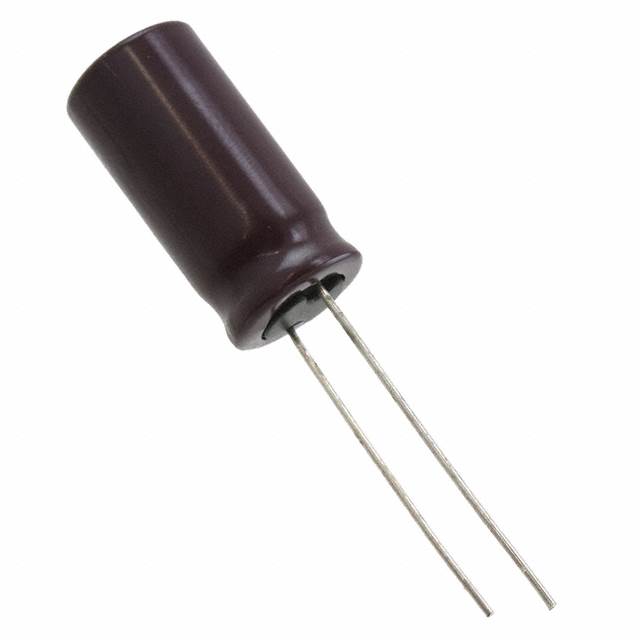

Nichicon UCA2E100MPD	20 %	10 µF	0.197 "	5 mm	250 V	Polar	0.394 in	10 mm	105 ░C	-25 °C	10000 Hrs	0.846 "	21.5 mm	Through Hole	Can Radial	General Purpose	300 mA	150 mA
Nichicon UCA2E100MPD1TD	20 %	10 µF	0.197 "	5 mm	250 V	Polar	0.394 in	10 mm	105 ░C	-25 °C	10000 Hrs	0.846 "	21.5 mm	Through Hole	Can Radial	General Purpose	300 mA	150 mA
