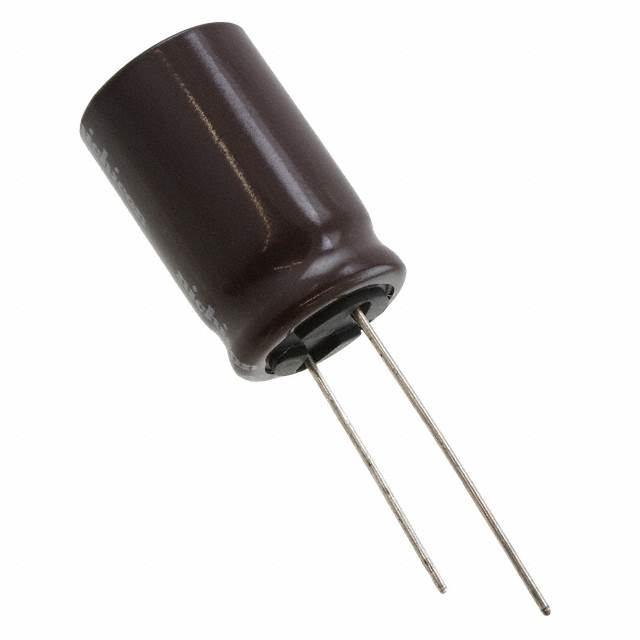

UAS Series

Manufacturer: Nichicon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED 150UF 200 VOLTS 20%

Part	Tolerance	Lead Spacing	Lead Spacing	Ripple Current @ Low Frequency	Polarization	Size / Dimension [diameter]	Size / Dimension [diameter]	Voltage - Rated	Capacitance	Lifetime @ Temp.	Package / Case	Ripple Current @ High Frequency	Applications	Mounting Type	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
Nichicon UAS2D151MHD6	20 %	0.295 in	7.5 mm	460 mA	Polar	0.709 in	18 mm	200 VDC	150 µF	2000 Hrs	Can Radial	736 mA	General Purpose	Through Hole	0.866 in	22 mm	-40 C	105 ░C
Nichicon UAS2G560MHD6	20 %	0.295 in	7.5 mm	320 mA	Polar	0.709 in	18 mm	400 V	56 µF	2000 Hrs	Can Radial	512 mA	General Purpose	Through Hole			-40 C	105 ░C	1.063 in	27 mm
Nichicon UAS2D151MHD	20 %	0.295 in	7.5 mm	460 mA	Polar	0.63 in	16 mm	200 VDC	150 µF	2000 Hrs	Can Radial	736 mA	General Purpose	Through Hole			-40 C	105 ░C	1.063 in	27 mm
Nichicon UAS2D470MPD1TD	20 %	0.197 "	5 mm		Polar	0.394 in	10 mm	200 VDC	47 µF	2000 Hrs	Can Radial	312 mA	General Purpose	Through Hole			-40 C	105 ░C	1.063 in	27 mm
Nichicon UAS2G820MHD	20 %	0.295 in	7.5 mm	435 mA	Polar	0.63 in	16 mm	400 V	0.082 mF	2000 Hrs	Can Radial	696 mA	General Purpose	Through Hole			-40 C	105 ░C			42 mm	1.654 in
