DF19K Series
Manufacturer: Hirose Electric Co Ltd
Beta
⌘K
CONN HEADER BRD EDGE 30P 1MM
| Part | Features | Shrouding | Connector Type | Contact Type | Voltage Rating | Termination | Style | Mounting Type | Contact Finish - Mating | Pitch - Mating | Pitch - Mating | Insulation Color | Number of Positions Loaded | Insulation Material | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Contact Material | Number of Rows | Fastening Type | Insulation Height [custom] | Insulation Height [custom] | Number of Positions | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Post | Current Rating (Amps) | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

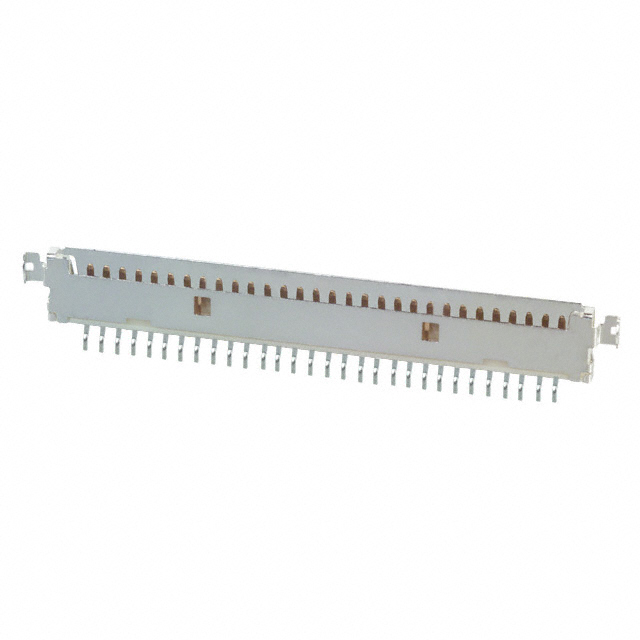

 Hirose Electric Co Ltd | Solder Retention | Shrouded - 3 Wall | Receptacle | Male Pin | 100 V | Solder | Board to Cable/Wire | Board Edge Cutout Surface Mount Right Angle | Gold | 1 mm | 0.039 in | Beige | All | Nylon Polyamide (PA) | 85 °C | -35 °C | UL94 V-0 | Phosphor Bronze | 1 | Friction Lock | 1.45 mm | 0.057 in | 30 | ||||||

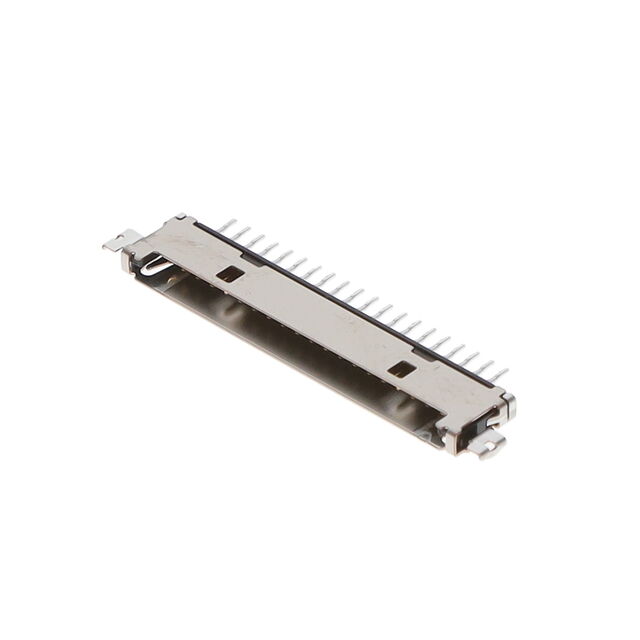

 Hirose Electric Co Ltd | Solder Retention | Shrouded - 3 Wall | Receptacle | Male Pin | 100 VAC | Solder | Board to Cable/Wire | Board Edge Cutout Surface Mount Right Angle | Gold | 1 mm | 0.039 in | Black | All | Nylon Polyamide (PA) | 85 °C | -35 °C | UL94 V-0 | Phosphor Bronze | 1 | Friction Lock | 1.45 mm | 0.057 in | 20 | 0.1 Ám | 3.94 Áin | Gold | Varies by Wire Gauge | 3.94 µin | 0.1 µm |
