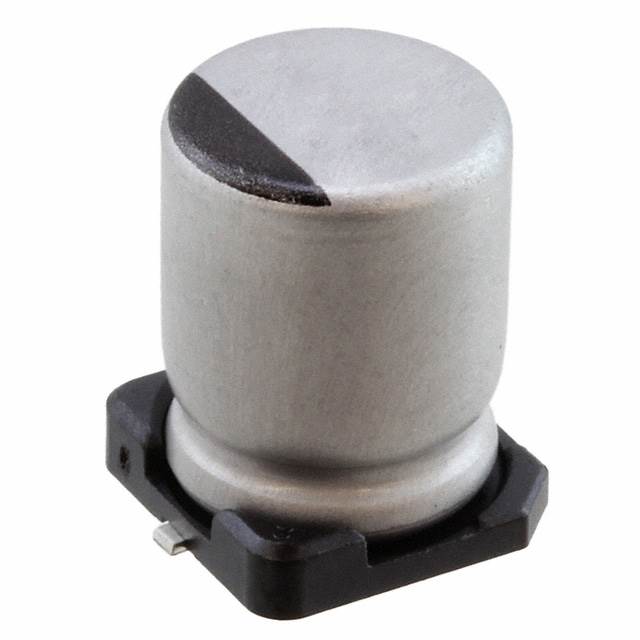

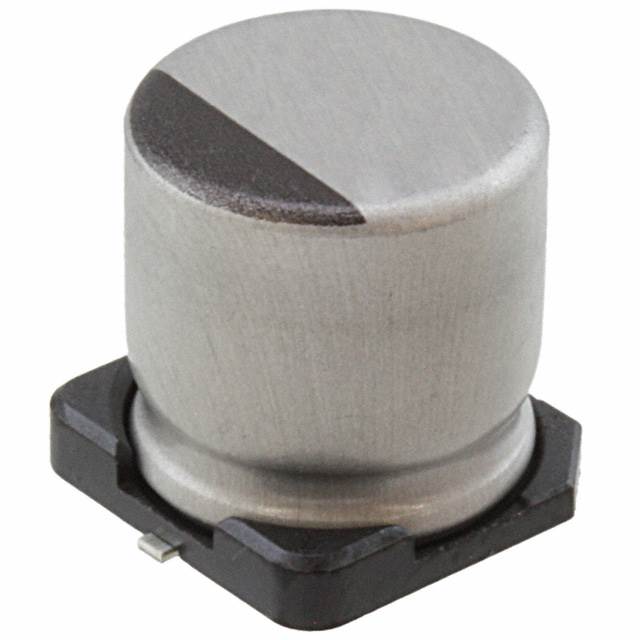

UWZ Series

Manufacturer: Nichicon

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SMD

Part	Applications	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Mounting Type	Ratings	Tolerance	Ripple Current @ Low Frequency	Polarization	Capacitance	Lifetime @ Temp.	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage - Rated	Ripple Current @ High Frequency
Nichicon UWZ1V331MNL1GS
Nichicon UWZ0J152MCL1GS	High Temperature Reflow	Radial Can - SMD	0.394 in	10 mm	Surface Mount	AEC-Q200	20 %	310 mA	Polar	1.5 mF	1000 Hrs	0.406 "	0.406 in	10.3 mm	10.3 mm	-55 C	105 ░C	0.413 "	10.5 mm	6.3 VDC	465 mA
Nichicon UWZ0J471MCL1GS	High Temperature Reflow	Radial Can - SMD	0.315 in	8 mm	Surface Mount	AEC-Q200	20 %	210 mA	Polar	470 µF	1000 Hrs	0.327 in	0.327 in	8.3 mm	8.3 mm	-55 C	105 ░C	0.394 in	10 mm	6.3 VDC	315 mA
Nichicon UWZ1V470MCQ1GS
Nichicon UWZ1V221MCQ1GS	High Temperature Reflow	Radial Can - SMD	0.394 in	10 mm	Surface Mount		20 %	190 mA	Polar	220 µF	1000 Hrs	0.406 "	0.406 in	10.3 mm	10.3 mm	-55 C	105 ░C	0.425 in	10.8 mm	35 V	285 mA
Nichicon UWZ1E330MCL1GB	High Temperature Reflow	Radial Can - SMD	0.248 "	6.3 mm	Surface Mount	AEC-Q200	20 %	48 mA	Polar	33 ÁF	1000 Hrs	0.26 in	0.26 in	6.6 mm	6.6 mm	-55 C	105 ░C	0.224 in	5.7 mm	25 VDC	72 mA
Nichicon UWZ1A471MCL1GS	High Temperature Reflow	Radial Can - SMD	0.315 in	8 mm	Surface Mount	AEC-Q200	20 %	210 mA	Polar	470 µF	1000 Hrs	0.327 in	0.327 in	8.3 mm	8.3 mm	-55 C	105 ░C	0.394 in	10 mm	10 V	315 mA
Nichicon UWZ1E330MCL1GS	High Temperature Reflow	Radial Can - SMD	0.248 "	6.3 mm	Surface Mount		20 %	48 mA	Polar	33 ÁF	1000 Hrs	0.26 in	0.26 in	6.6 mm	6.6 mm	-55 C	105 ░C	0.213 in	5.4 mm	25 VDC	72 mA
