910-40 Series

Manufacturer: Wakefield Thermal Solutions

Catalog

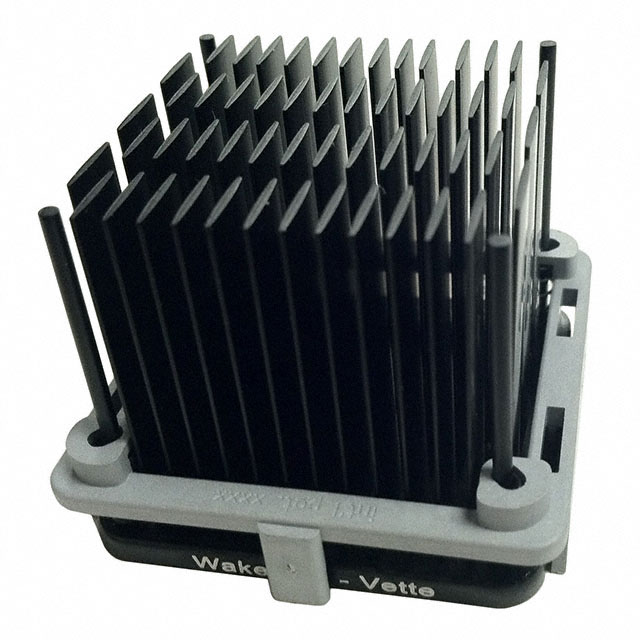

HEATSINK 40X40X23MM ELLIPTICAL

Part	Width [y]	Width [y]	Package Cooled	Type	Material Finish	Material	Fin Height [custom]	Fin Height [custom]	Attachment Method	Thermal Resistance @ Forced Air Flow	Thermal Resistance @ Natural	Shape	Length	Length	Fin Height	Fin Height	Width [x]	Width [x]	Fin Height [z]	Fin Height [z]
Wakefield Thermal Solutions 910-40-1-23-2-B-0	1.575 in	40 mm	BGA	Top Mount	Black Anodized	Aluminum	0.892 in	22.65 mm	Push Pin	2 °C/W	8.3 °C/W	Pin Fins Square
Wakefield Thermal Solutions 910-40-2-21-2-B-0			BGA	Top Mount	Black Anodized	Aluminum			Push Pin	2.21 °C/W 200 LFM	7.77 °C/W	Pin Fins Square	40.01 mm	1.575 in	0.811 in	20.6 mm	1.575 in	40.01 mm
Wakefield Thermal Solutions 910-40-2-21-2-B-0	1.575 in	40 mm	BGA	Top Mount	Black Anodized	Aluminum			Push Pin	2.21 °C/W 200 LFM	7.77 °C/W	Pin Fins Square			0.811 in	20.6 mm
Wakefield Thermal Solutions 910-40-1-12-2-B-0	1.575 in	40 mm	BGA	Top Mount	Black Anodized	Aluminum	0.457 in	11.6 mm	Push Pin	3.1 °C/W	10 °C/W	Pin Fins Square
Wakefield Thermal Solutions 910-40-2-28-2-B-0	1.575 in	40 mm	BGA	Top Mount	Black Anodized	Aluminum			Push Pin	1.77 °C/W	7.27 °C/W	Pin Fins Square							27.6 mm	1.087 in
Wakefield Thermal Solutions 910-40-1-33-2-B-0			BGA	Top Mount	Black Anodized	Aluminum			Push Pin	1.61 °C/W	6.78 °C/W	Pin Fins Square	40.01 mm	1.575 in	1.283 in	32.6 mm	1.575 in	40.01 mm
Wakefield Thermal Solutions 910-40-1-12-2-B-0	1.575 in	40 mm	BGA	Top Mount	Black Anodized	Aluminum	0.457 in	11.6 mm	Push Pin	3.1 °C/W	10 °C/W	Pin Fins Square
Wakefield Thermal Solutions 910-40-1-15-2-B-0			BGA	Top Mount	Black Anodized	Aluminum	0.575 in		Push Pin	2.77 °C/W	9.51 °C/W	Pin Fins Square	40.01 mm	1.575 in		14.6 mm	1.575 in	40.01 mm
Wakefield Thermal Solutions 910-40-1-19-2-B-0			BGA	Top Mount	Black Anodized	Aluminum			Push Pin	2.74 °C/W	9.06 °C/W	Pin Fins Square			0.693 in	17.6 mm	1.575 in	40.01 mm
Wakefield Thermal Solutions 910-40-1-33-2-B-0			BGA	Top Mount	Black Anodized	Aluminum			Push Pin	1.61 °C/W	6.78 °C/W	Pin Fins Square			1.283 in	32.6 mm	1.575 in	40.01 mm
