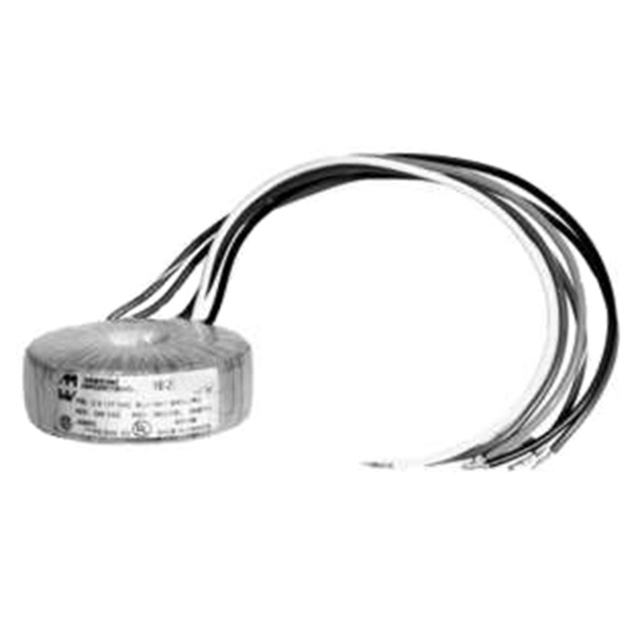

182 Series

Catalog

POWER TRANSFORMER 4000VRMS 300VA 6 TERMINAL WIRE LEAD CENTER SINGLE HOLE

Part	Voltage - Secondary (Full Load)	Type	Height - Seated (Max) [Max]	Power - Max [Max]	Voltage - Primary	Voltage - Isolation	Mounting Type	Weight	Weight	Primary Winding(s)	Termination Style	Secondary Winding(s)	Current - Output (Max) [Max]	Current - Output (Max)	Current - Output (Max) [Max] [custom]	Current - Output (Max) [Max] [custom]	Current - Output (Max) [custom]	Current - Output (Max) [custom]
Hammond Manufacturing 182K240	240 V	Toroidal	57.66 mm	300 VA	117 V 234 V	4000 VAC	Chassis Mount	5.6 lbs	2.5 kg	Dual	Wire Leads	Single	1.25 A
Hammond Manufacturing 182N6	6 V 12 V	Toroidal	43.94 mm	50 VA	117 V 234 V	4000 VAC	Chassis Mount	1.7 lbs	771.1 g	Dual	Wire Leads	Dual		4.17 A 8.34 A
Hammond Manufacturing 182J22	22 V 44 V	Toroidal	43.94 mm	50 VA	117 V 234 V	4000 VAC	Chassis Mount	1.7 lbs	771.1 g	Dual	Wire Leads	Dual		1.14 A 2.28 A
Hammond Manufacturing 182M117	117 V 234 V	Toroidal	57.66 mm	300 VA	117 V 234 V	4000 VAC	Chassis Mount	5.6 lbs	2.5 kg	Dual	Wire Leads	Dual			2.56 A	1.28 A
Hammond Manufacturing 182R110	110 V 220 V	Toroidal	78.74 mm	750 VA	117 V 234 V	4000 VAC	Chassis Mount	14 lbs	6.4 kg	Dual	Wire Leads	Dual					6.82 A	3.41 A
Hammond Manufacturing 182M9	9 V 18 V	Toroidal	43.94 mm	50 VA	117 V 234 V	4000 VAC	Chassis Mount	1.7 lbs	771.1 g	Dual	Wire Leads	Dual		2.78 A 5.56 A
